Unleash your creativity with LightWave® Generation 1 Plus sheets.
Our flexible, adhesive-backed lights bring a new level of versatility to illumination. Cut, peel, stick, and let your imagination shine. The perfect option to create even light distribution across a large surface area.
Quick Answer:
LightWave® Generation 1 Plus is a modular 12″ × 24″ (305 × 610 mm) flexible LED light sheet with 648 LEDs — 324 per square foot — at under 7 mm thick. The single-color sheet draws 14 W and delivers 1,580–1,720 lm at 113–123 lm/W, Ra 80+. It is also available in tunable white (2700K–6500K) and RGBW, cuts along marked lines, and bends around curves.
What are the photometric specifications of Generation 1 Plus?
| Type | Color / CCT | LEDs | Power | Efficacy | Output per sheet | CRI |
|---|---|---|---|---|---|---|
| Single color | Standard 3500K, 5000K, 6500K; by request 1800K, 2700K, 3000K, 4000K | 648 | 14 W | 113–123 lm/W | 1,580–1,720 lm | Ra 80+ |
| Tunable white | 2700K–6500K | 2 × 648 | 2 × 14 W | 113–123 lm/W | 1,580 lm (2700K) · 1,720 lm (6500K) | Ra 80+ |

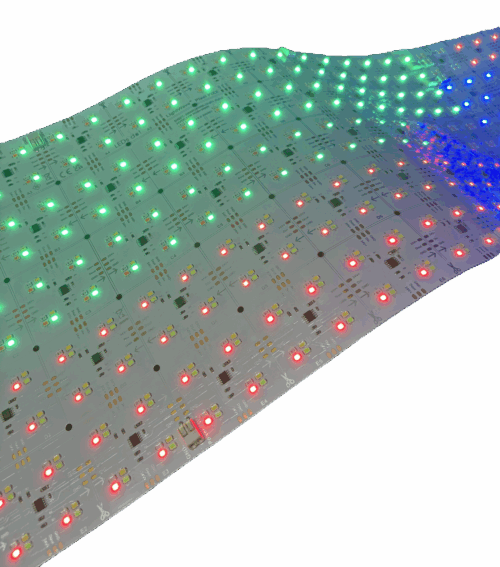

| RGBW | RGB + 5000K | 4 × 288 | 4 × 4 W | 123 lm/W | 490 lm (5000K channel) | 80+ (5000K) |
What are the mechanical specifications?
| Attribute | Value |
|---|---|
| Dimensions | 12″ × 24″ (305 × 610 mm) |
| Total profile | < 7 mm |
| Mounting | Adhesive backing; screw spacer set for air-gap installs |
For voltage, IP rating, certification and cut details, contact LUXX.
Downloads
Compare with LightWave® CH2 for higher-CRI whites, or see the full LightWave spec comparison.
Where is LightWave® Generation 1 Plus used?
- Backlit onyx countertops — 12″ × 24″ sheets tiled under the slab
- Backlit signage — sheets cut to the sign face
- SEG and LED lightboxes — sized to the frame
- Circadian lighting — tunable white, 2700K–6500K
Specified with: LED sheet power supply calculator · tunable white LED sheets · LightWave spec comparison
Where this variant is the right choice
- Retail displays with color-shifting: See the
dynamic feature wall scenario - Museum backlighting needing high CRI: See the
museum exhibit lighting scenario - Hospitality bar shelf backlighting: See the
back bar lighting scenario
Where to choose a different variant instead
- High-CRI museum or retail work: CH2
RGBW build reaches CRI 90 for true-color applications - Motion and animation: PIXX

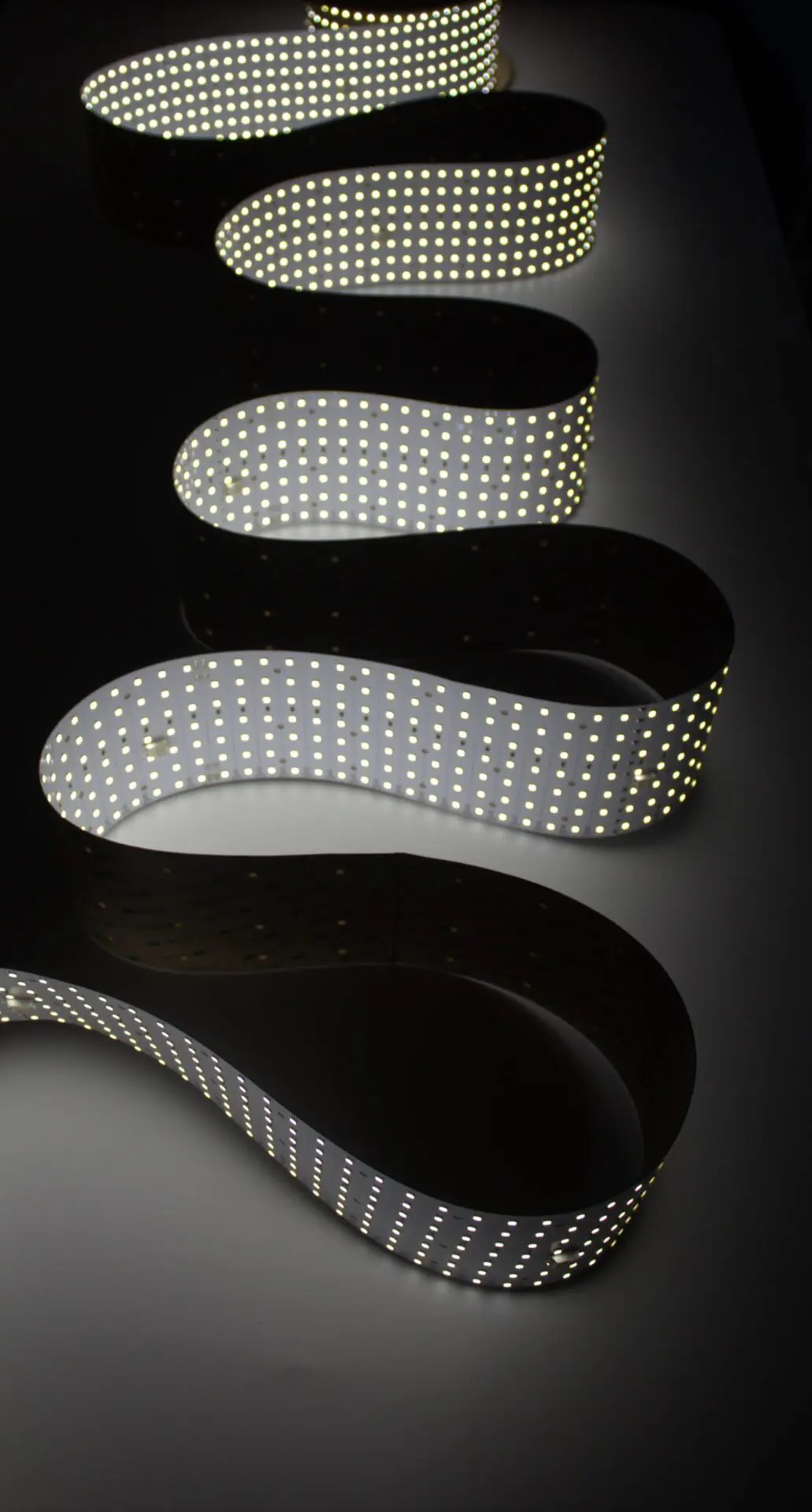

addressable pixel control with SPI - Large continuous runs (40 ft+): Roll It!
reduces splice count and driver count
See a full spec comparison
across all four variants.
Size a driver for this variant
using our calculator.
See this variant specified
in worked project scenarios.
LightWave® Gen 1 Plus FAQs
Is Gen 1 Plus cuttable and bendable?

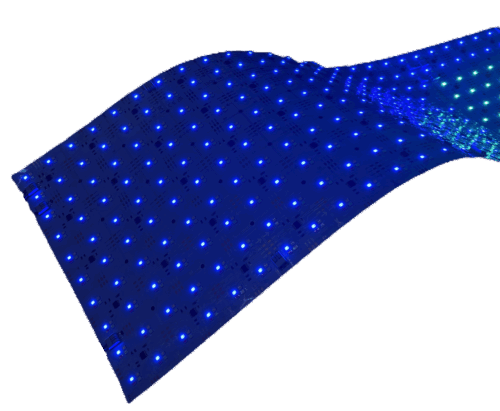

Yes. It can be cut along the marked lines and bent around curves while maintaining even light distribution.
What color options does it offer?
Gen 1 Plus is available in Single Color, Tunable White, and RGBW options.
What is it best for?
It is ideal for architectural and retail displays that require even, hotspot-free backlighting for custom shapes and designs.
What CRI does Gen 1 Plus deliver?
Gen 1 Plus delivers a CRI of 80+ across the range.
Is Gen 1 Plus backed by a warranty?
Yes. Gen 1 Plus is backed by a 3-year warranty, extendable to 5.
