LightWave® PIXX — Addressable RGBW LED Sheet
RGBW flex sheet with SPI control
UL Listed · Manufactured by LUXX since 1996 · Backed by a 5-year warranty. Request a project quote.
Quick Answer:
LightWave® PIXX is the only LightWave variant with addressable pixel control.
Each pixel is independently programmable via SPI, enabling video walls, motion graphics,
pixel-mapped animation and reactive installations. Draws 35 W per sheet. Premium cost
reflects the control capability — use PIXX only when animation or pixel-level color is
required. For static or tunable-white applications, Gen 1 Plus or CH2 are more cost-effective.
The LightWave® PIXX line brings dynamic, pixel-level control to large-scale lighting installations. Designed for professionals who demand precision, flexibility, and creativity, PIXX products let you craft vibrant, programmable effects across any surface.

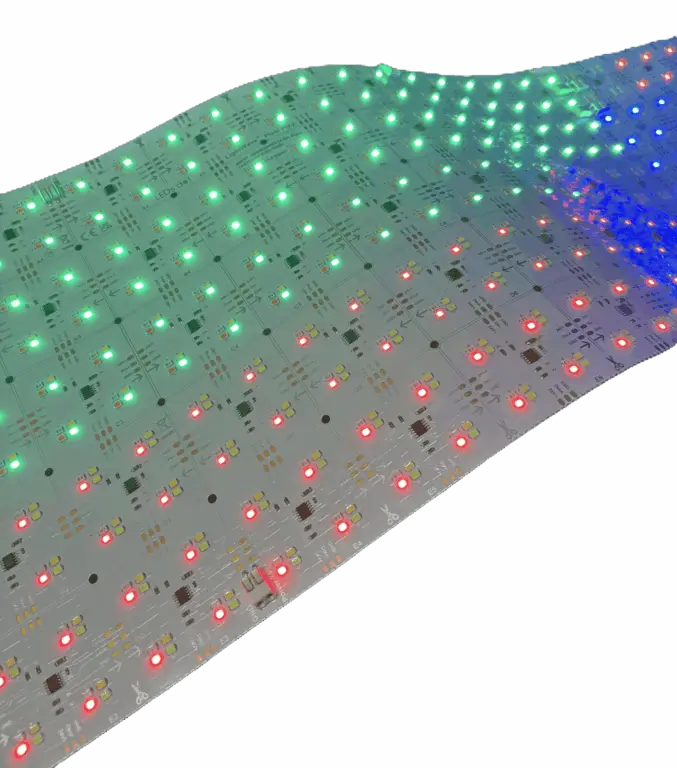

Our PIXX RGBW flex sheet with SPI control offers the power to control each pixel individually.
From gradients to animations, and color-changing effects, PIXX is perfect for creating immersive, high-impact displays.
Bold and Bright
Bring spaces to life with light that moves, dances, and interacts.
- Dynamic walls and ceilings
- Backlit signage and graphics
- Architectural accent
- Stage and event lighting
- Interactive installations
Specifications
| Size | Type | Color | LED Qty | Power | Power/Area | Light Output | Light Output/Area | LED Qty | LED Qty/Area |
|---|---|---|---|---|---|---|---|---|---|
| 9.25’’ x 19.8’’ 235 x 503mm | Sheet | RGB + 5000K | 648 | 35W | 27.5W / sqft 295W / m2 | 5000K: 810lm | 5000K: 635lm / sqft 6852lm / m2 | 800 (4 x 200) | 628LEDs / sqft 6768LEDs / m2 |
Where this variant is the right choice

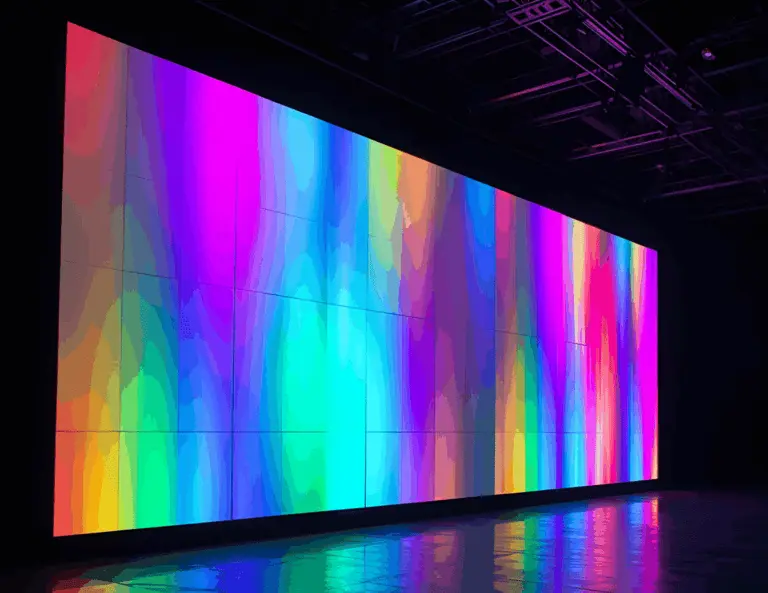

- Motion graphics and video walls: See the
dynamic feature wall scenario —
addressable SPI control for pixel-mapped animation - Interactive retail displays and signage: See the
backlit signage scenario with
animation capability — color-changing effects and reactive lighting - Trade-show and event environments: See the
trade-show booth backlighting scenario —
eye-catching animation and rapid color sequences
Where to choose a different variant instead
- Static or slow-transition color (tunable white only):
Gen 1 Plus or
CH2 deliver the same color control at
lower cost when pixel-level animation is not needed - Museum-quality color without animation:
CH2 RGBW build reaches CRI 90 with simpler
control architecture - Very large continuous runs (40 ft+):
Roll It! continuous rolls are more
cost-effective than PIXX modules for non-animated applications
See a full spec comparison
across all four LightWave variants — Gen 1 Plus, CH2, PIXX and Roll It!
Size a driver for PIXX
using our power supply calculator — PIXX draws substantial wattage per sheet and requires
SPI data lines in addition to power and ground.
See PIXX specified
in project scenarios — including motion-control installations and high-demand animations
with complete power and control-line specifications.
LightWave® PIXX FAQ
What makes PIXX addressable?
PIXX uses SPI/pixel control, allowing individual zones to be controlled independently for animations, gradients, and dynamic lighting effects.
What is PIXX best for?
PIXX is ideal for dynamic feature walls, hospitality environments, retail displays, and any installation that requires animated color effects.
Is PIXX cuttable?
Yes. PIXX is cuttable and features an ultra-thin design for flexible installation.
Is PIXX backed by a warranty?
Yes. PIXX is backed by a 5-year warranty.
Specifying this on a project? Request the LightWave® specifier package — spec sheets, IES photometric files, CAD details and Revit families.
See this variant specified in a real scope: six worked project scenarios with sheet counts, total wattage and driver sizing.
