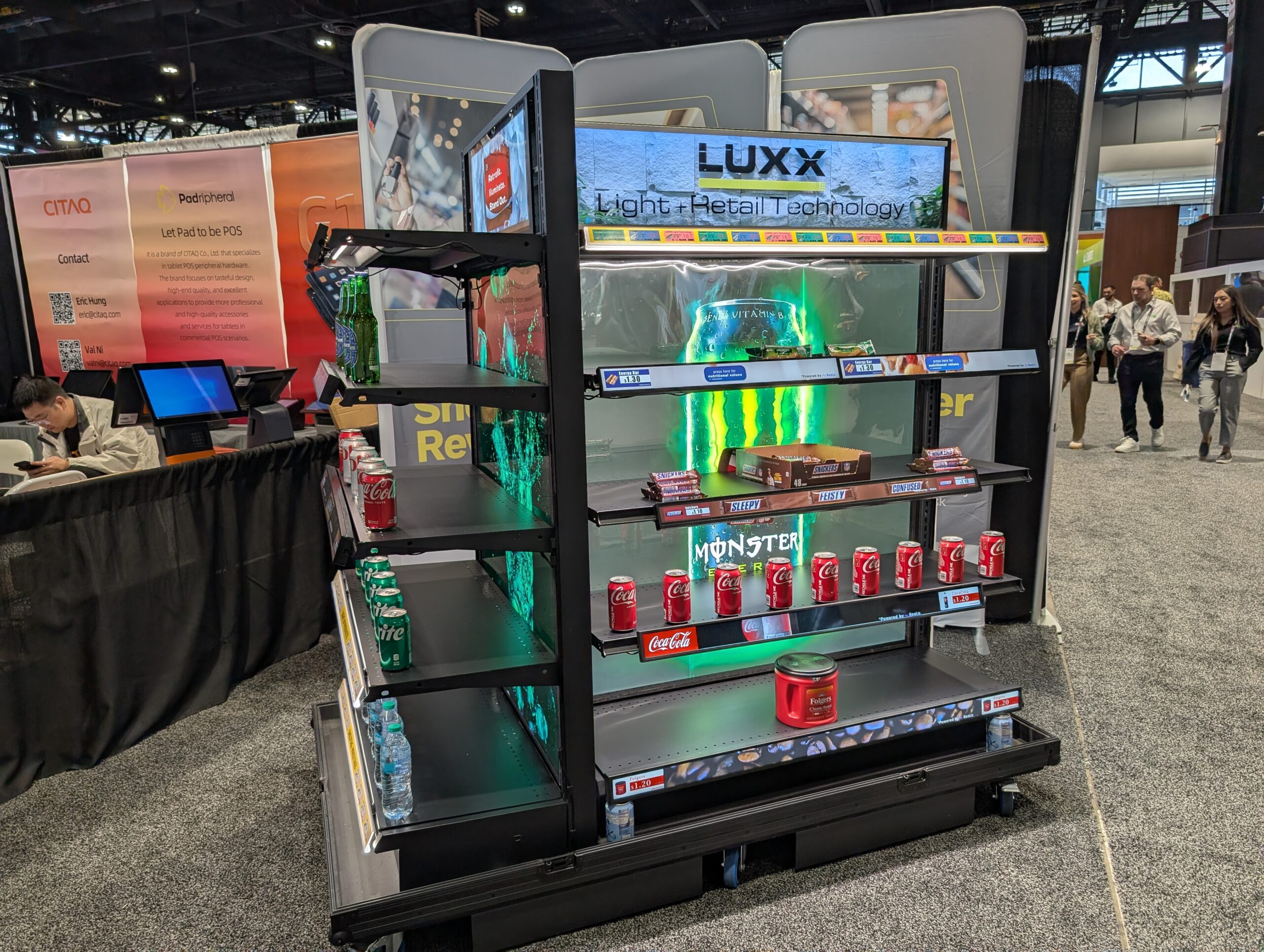

These large, high-visibility screens are designed for the top of shelving racks and end-caps to capture aisle-wide attention and broadcast overarching brand messaging.

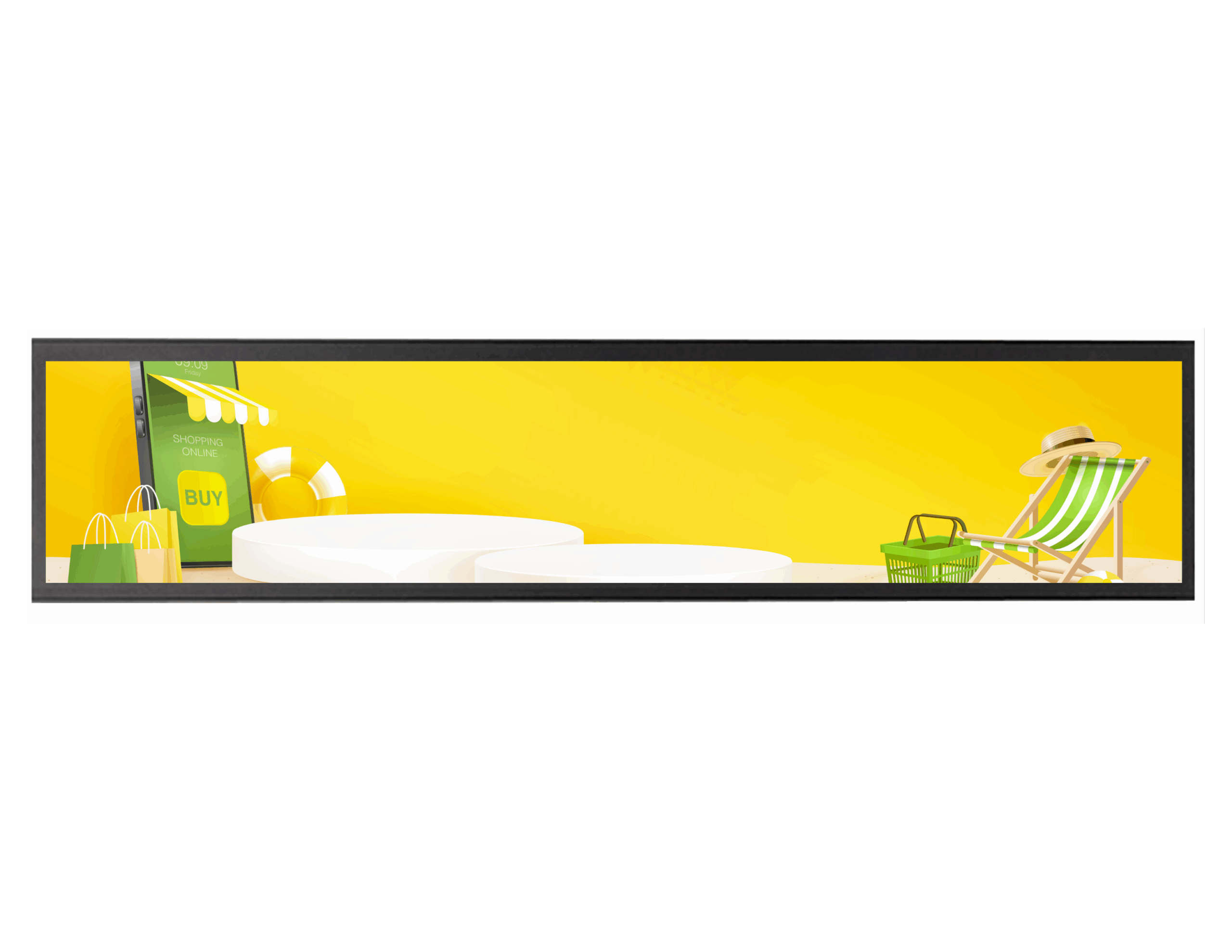

eShelf Header Displays deliver sharp, vibrant content with high visibility. Perfect for clear, eye-catching digital signage, as well as promotions and information.
Key Features
-
Ultra-Bright: Up to 700 NITs for high ambient lighting
-
24/7 Continuous Operation: Industrial-grade reliability
-
Enterprise Security: Android 11+ with WPA2/WPA3 encryption
-
Flexible Mounting: Magnetic movable & fixed bracket options
High Visibility
Bold signage that stands out over the shelf
Premium Screen
High resolution LCD screen for beautiful branding and clear messaging

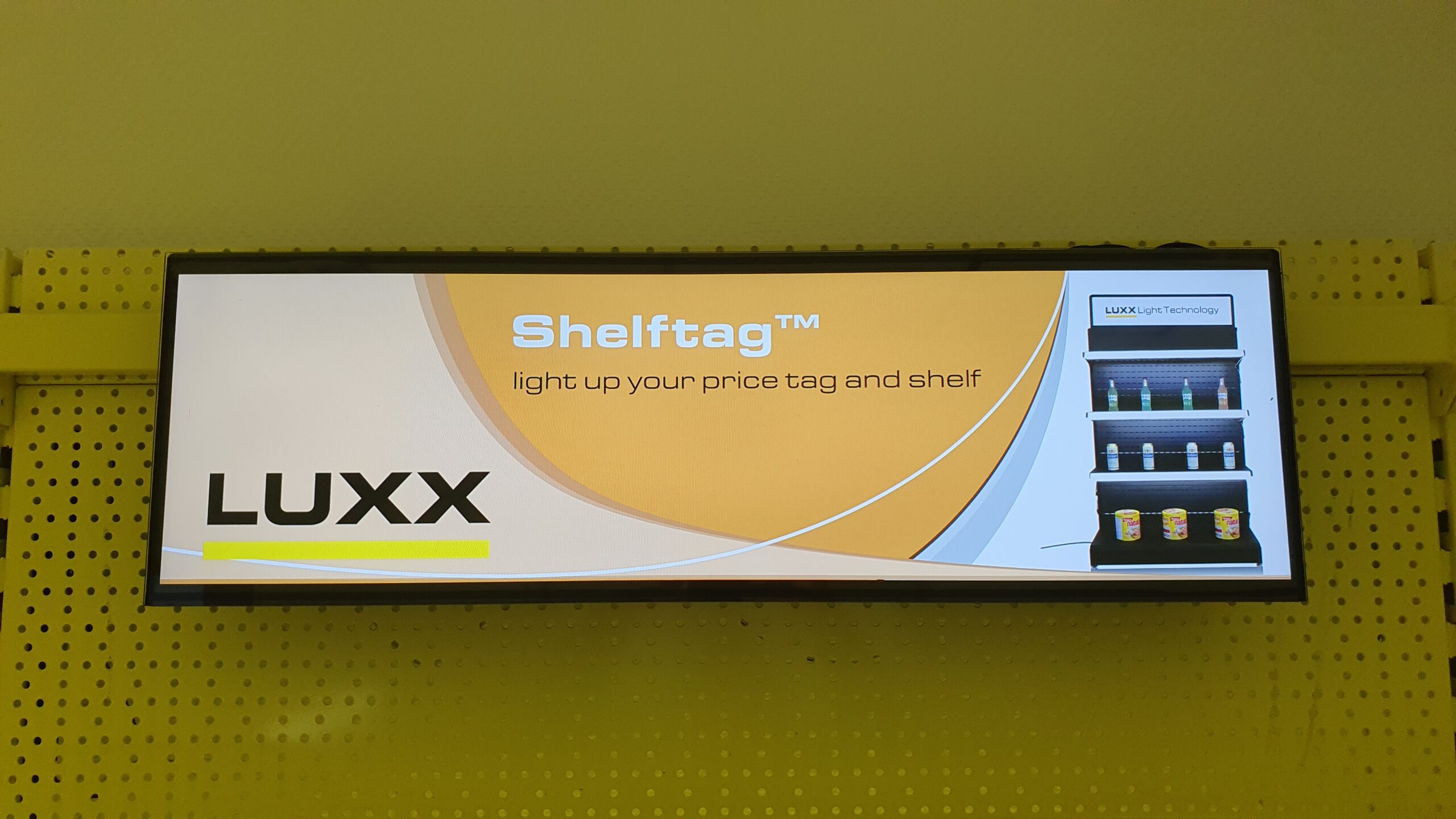

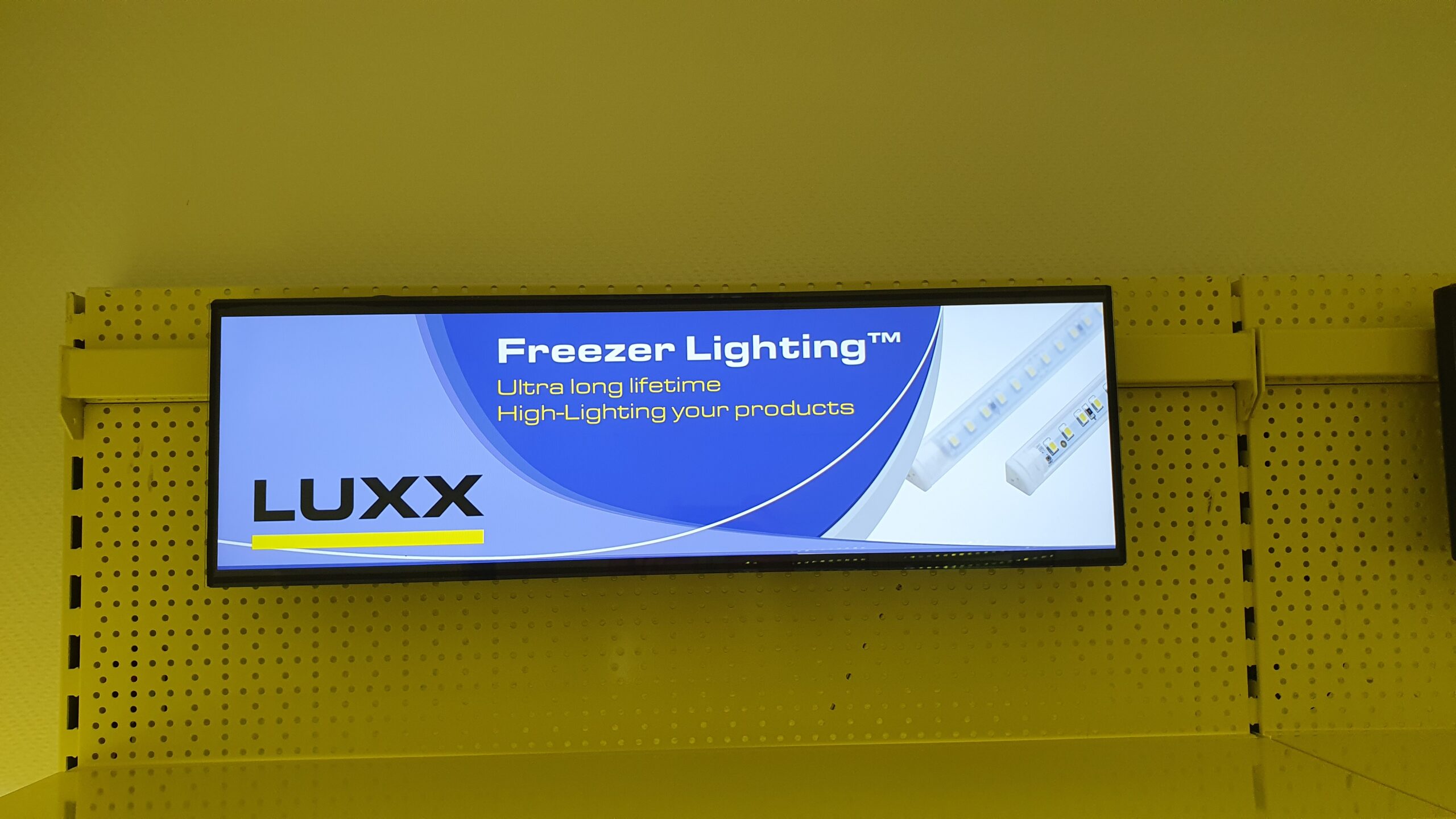

Bright and Crisp
Clear signage that stands out on shelving

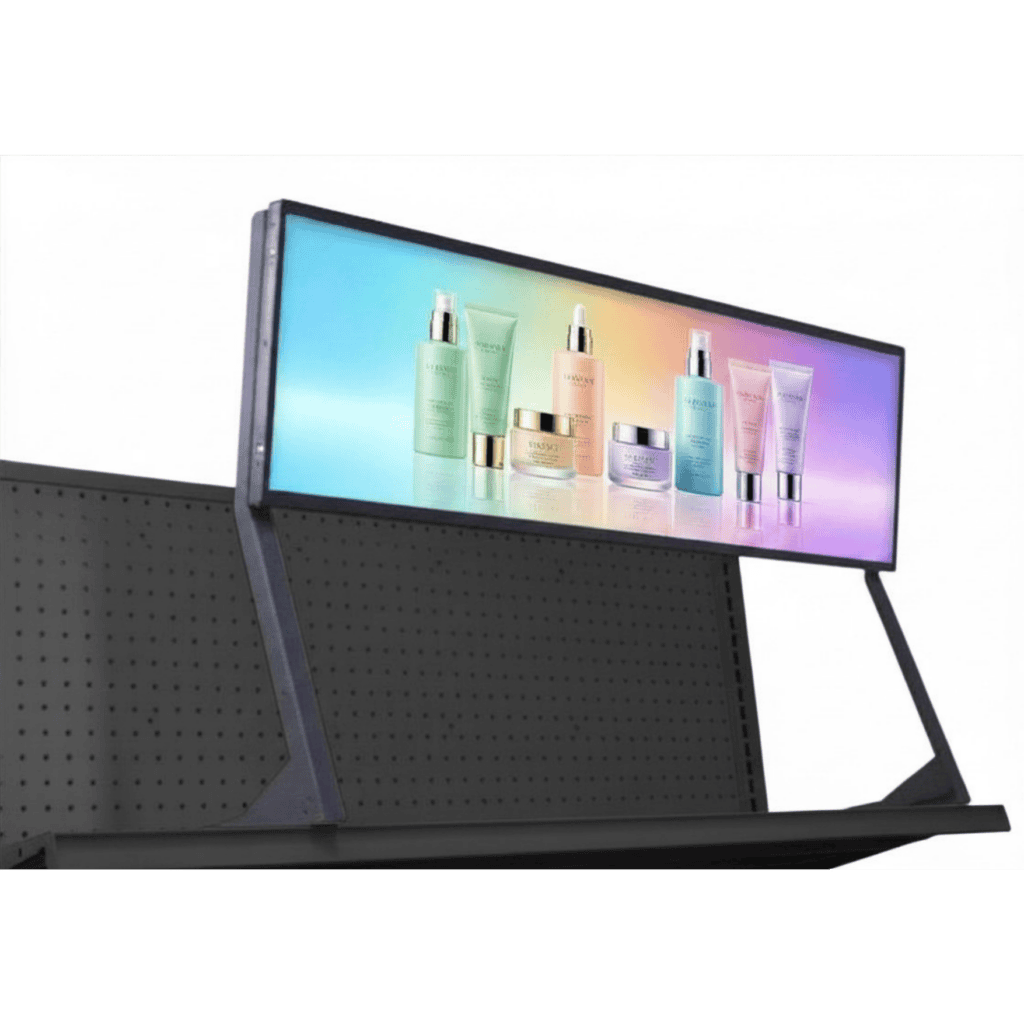

New! Movable Header Bracket
Quickly reposition your LUXX eShelf Headers with our magnetic mounting bracket. Easy to install and simple to relocate, it gives retailers the flexibility to update shelf messaging as displays and promotions change.
Specifications
| Model | Screen Size | Resolution V x H (px) |
Active Area H x V |
Dimension L x H x D |
Brightness (nits) |
Contrast Ratio |
Display Color | Lifespan | System | Input Voltage | Polarity Protection | Power | Power Input Interface | SKU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESP20 | 16.4″ | 1366 x 238 | 16.13″ x 2.81″ (409.8 x 71.4 mm) |
17.02″ x 3.70″ x 0.70″ (432.3 x 93.9 x 17.8 mm) |
500cd/m² | 1000:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | no | ≤18W | DC 35135 | LUXX-ESP20-500-12-A8.1-XXX |
| Android 11.0 | LUXX-ESP20-500-12-A11-XXX | |||||||||||||
| Screen Protector | LUXX-ESP20-PC | |||||||||||||
| ESP32 | 32″ | 1920 x 1080 | 27.57″ x 15.54″ (700.2 x 394.7 mm) |
28.28″ x 16.25″ x 1.42″ (718.2 x 412.7 x 36.1 mm) |
700cd/m² | 1200:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | no | ≤50W | DC 2.0 IN | LUXX-ESP32-700-12-A8.1-XXX |
| 15-36V DC | LUXX-ESP32-700-24-A8.1-XXX | |||||||||||||
| Android 11.0 | 12V DC | LUXX-ESP32-700-12-A11-XXX | ||||||||||||
| 15-36V DC | LUXX-ESP32-700-24-A11-XXX | |||||||||||||
| Screen Protector | LUXX-ESP32-PC | |||||||||||||
| ESP35 | 24″ | 1920 x 360 | 23.54″ x 4.41″ (597.89 x 112.10 mm) |
24.31″ x 5.39″ x 1.07″ (617.5 x 137 x 27.2 mm) |
700cd/m² | 1000:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | yes | ≤20W | USB-C | LUXX-ESP35-700-12-A8.1-XXX |
| 15-36V DC | yes | LUXX-ESP35-700-24-A8.1-XXX | ||||||||||||
| Android 11.0 | 12V DC | no | LUXX-ESP35-700-12-A11-XXX | |||||||||||
| 15-36V DC | yes | LUXX-ESP35-700-24-A11-XXX | ||||||||||||
| Screen Protector | LUXX-ESP35-PC | |||||||||||||
| ESP45 | 29″ | 1920 x 540 | 27.78″ x 7.81″ (705.6 x 198.45 mm) |
28.38″ x 8.91″ x 1.59″ (720.8 x 226.25 x 40.3 mm) |
500cd/m² | 1200:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | yes | ≤30W | DC 5521 | LUXX-ESP45-700-12-A8.1-XXX |
| 15-36V DC | yes | LUXX-ESP45-700-24-A8.1-XXX | ||||||||||||
| Android 11.0 | 12V DC | no | LUXX-ESP45-700-12-A11-XXX | |||||||||||
| 15-36V DC | yes | LUXX-ESP45-700-24-A11-XXX | ||||||||||||
| Screen Protector | LUXX-ESP45-PC | |||||||||||||
| ESP55 | 37″ | 1920 x 540 | 35.42″ x 9.96″ (899.71 x 253.04 mm) |
36.02″ x 11.06″ x 1.80″ (914.9 x 280.9 x 45.7 mm) |
700cd/m² | 1000:1 | 16.7M | 50000 hours |
Android 8.1 | 12V DC | yes | ≤40W | DC 5521 | LUXX-ESP55-700-12-A8.1-XXX |
| 15-36V DC | yes | LUXX-ESP55-700-24-A8.1-XXX | ||||||||||||
| Android 11.0 | 12V DC | no | LUXX-ESP55-700-12-A11-XXX | |||||||||||
| 15-36V DC | yes | LUXX-ESP55-700-24-A11-XXX | ||||||||||||
| Screen Protector | LUXX-ESP55-PC | |||||||||||||
| ESP75 | 47.6″ | 1920 x 360 | 46.81″ x 8.78″ (1189 x 223 mm) |
47.22″ x 9.43″ x 2.09″ (1199.4 x 239.5 x 53.1 mm) |
700cd/m² | 1200:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | no | 45W | DC 2.0 IN | LUXX-ESP75-700-12-A8.1-XXX |
| 15-36V DC | LUXX-ESP75-700-24-A8.1-XXX | |||||||||||||
| Android 11.0 | 12V DC | LUXX-ESP75-700-12-A11-XXX | ||||||||||||
| 15-36V DC | LUXX-ESP75-700-24-A11-XXX | |||||||||||||
| Screen Protector | LUXX-ESP75-PC | |||||||||||||
| ESP98 | 41.6″ | 1920 x 734 | 37.01″ x 14.17″ (940 x 360 mm) |
38.62″ x 15.75″ x 2.17″ (981 x 400 x 55 mm) |
500cd/m² | 1200:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | no | 38W | DC 2.0 IN | LUXX-ESP98-700-12-A8.1-XXX |
| 15-36V DC | LUXX-ESP98-700-24-A8.1-XXX | |||||||||||||
| Android 11.0 | 12V DC | LUXX-ESP98-700-12-A11-XXX | ||||||||||||
| 15-36V DC | LUXX-ESP98-700-24-A11-XXX | |||||||||||||
| Screen Protector | LUXX-ESP98-PC | |||||||||||||
| ESP100 Design for Tegometall Shelf |
39.5″ | 1920 x 720 | 37.01″ x 13.88″ (940 x 352.5 mm) |
38.58″ x 15.35″ x 1.46″ (980 x 390 x 37 mm) |
500cd/m² | 1200:1 | 16.7M | 30000 hours |
Android 8.1 | 12V DC | no | ≤40W | DC 2.0 IN | LUXX-ESP100-500-12-A8.1-XXX |
| 15-36V DC | LUXX-ESP100-500-24-A8.1-XXX | |||||||||||||
| Android 11.0 | 12V DC | LUXX-ESP100-500-12-A11-XXX | ||||||||||||
| 15-36V DC | LUXX-ESP100-500-24-A11-XXX | |||||||||||||
| Screen Protector | LUXX-ESP75-PC | |||||||||||||
Compatible Mounting Brackets
| Type | SKU |
|---|---|
| Standard Flat Bracket | ESP-BRC-H-F |
| Standard L-Shaped Bracket | ESP-BRC-H-L |
| Movable Header Bracket | ESP-BRC-H-M |
System and Connectivity
| Android System | SKU | Encryption |
|---|---|---|
| Android 8.1 | 2.4G | / |
| Android 9.0 | 2.4G | / |
| Android 11.0 | 2.4G + 5G | WPA2/WPA3 |
| Android 13.0 | 2.4G + 5G | WPA2/WPA3 |
