Brighten price tags and products… instantly.

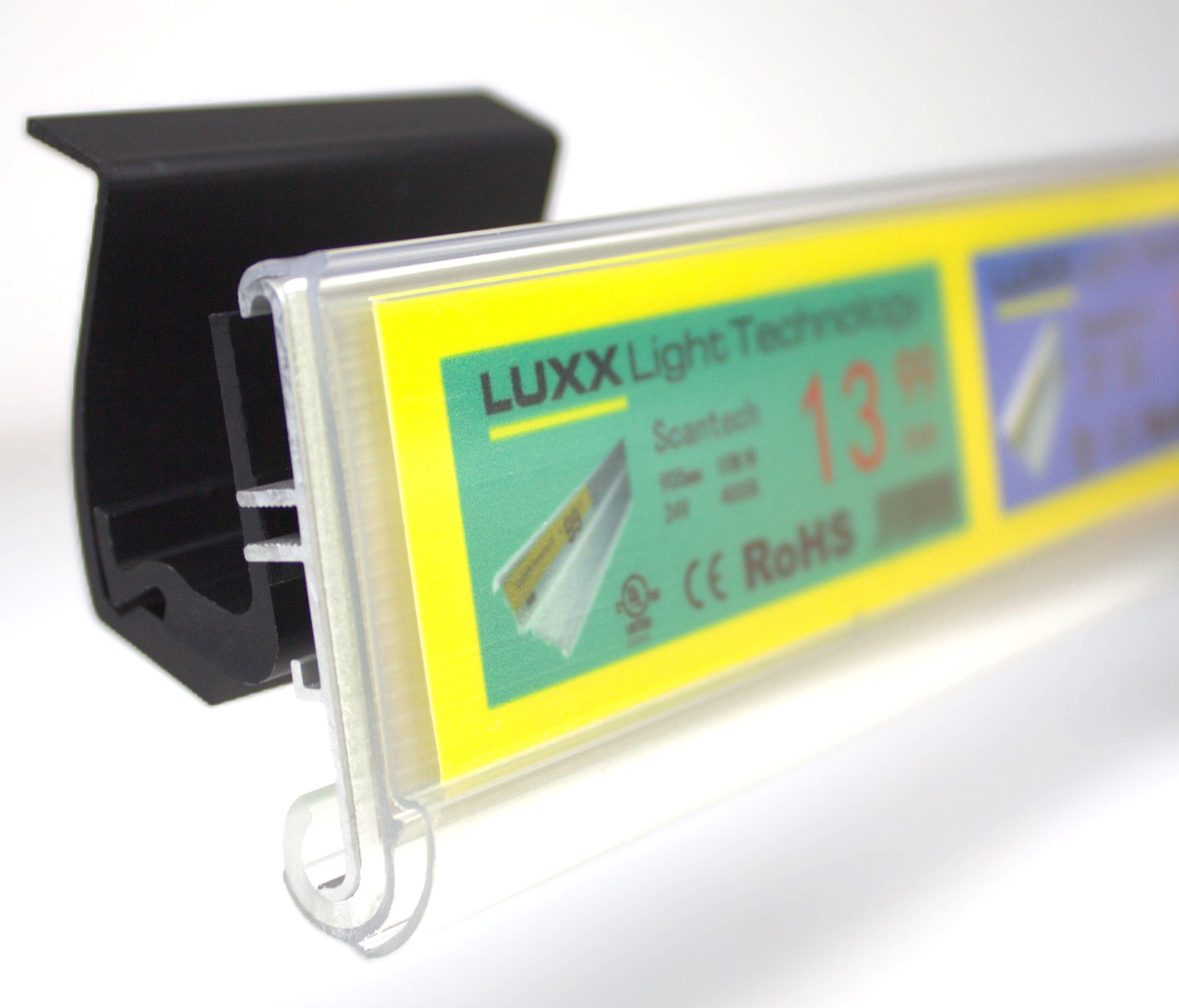

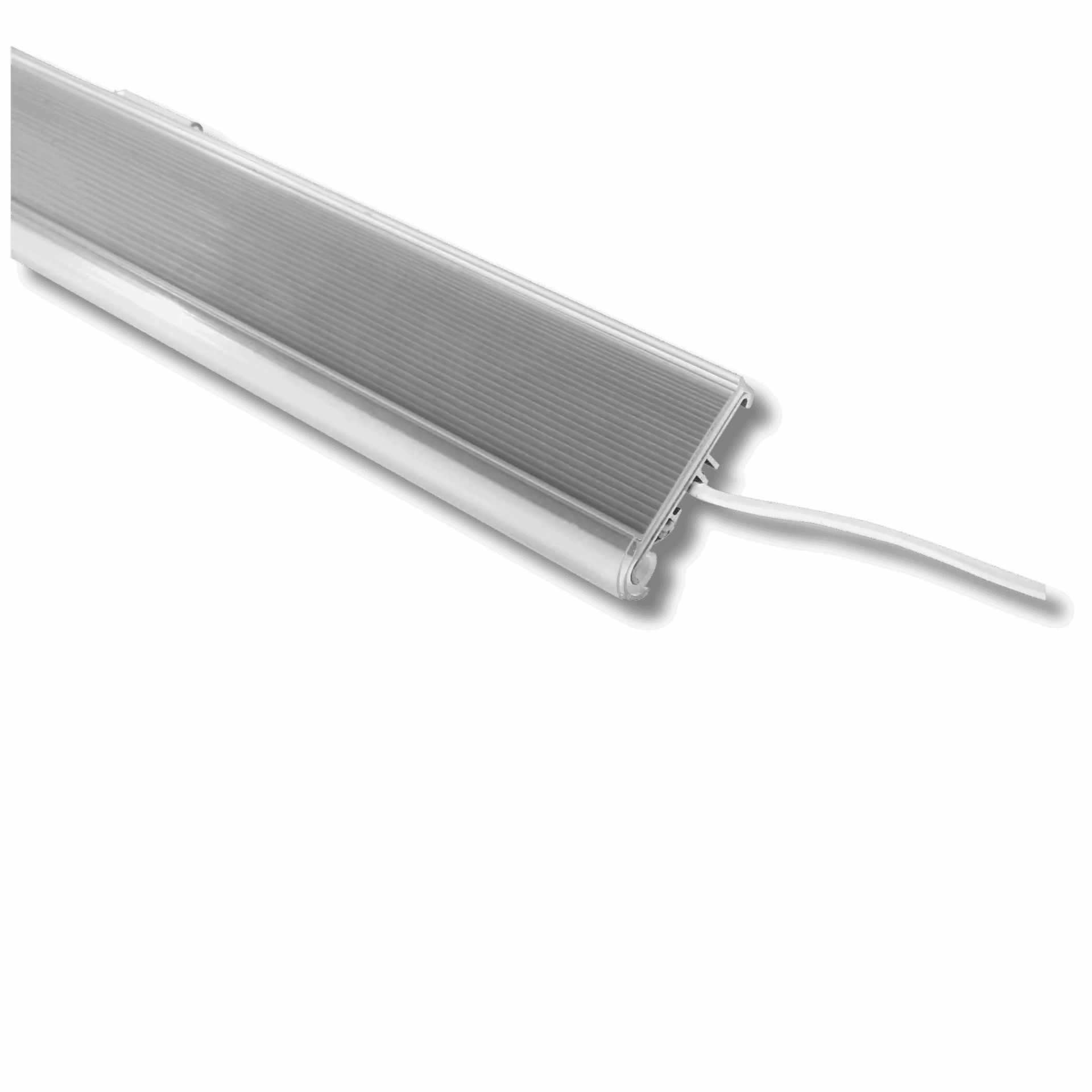

Retrofit your standard retail shelving into eye-catching displays. This lit shelf tag performs double duty, illuminating price tags through a dedicated extruded light guide, as well as products on the shelf below. Installs easily, including adding power to the shelf.
Features
-
-

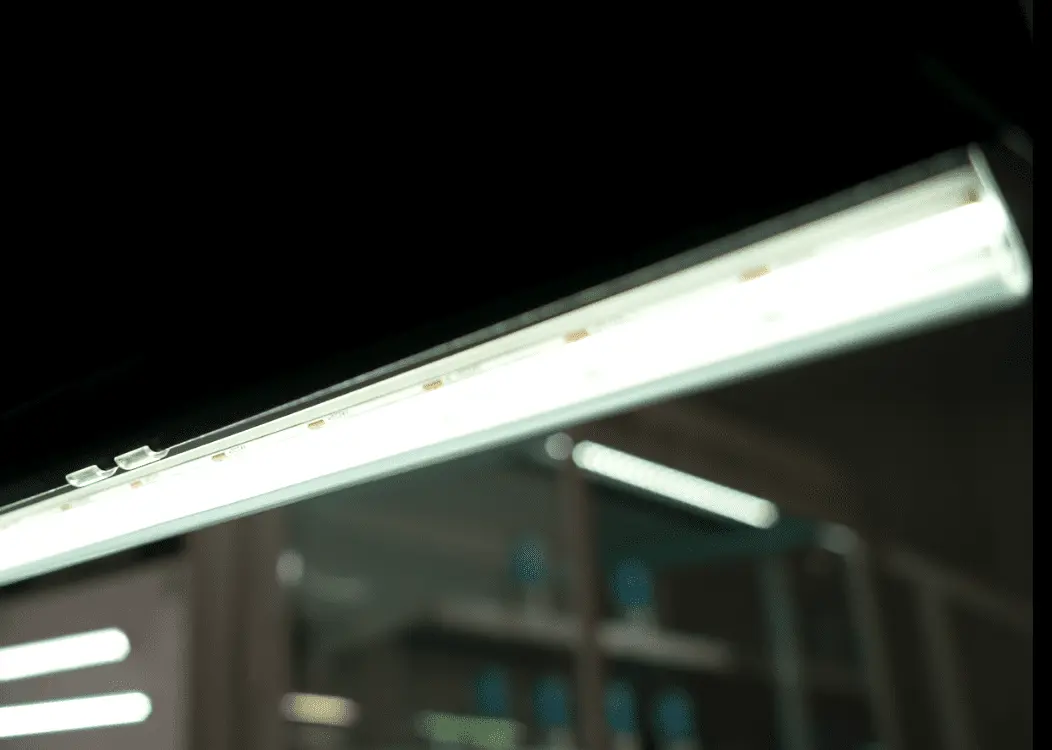

- Dual-Action Design: Simultaneously illuminates price tags/promotional materials at the shelf edge and also shines 30° down to evenly light products on the shelf below
- Smooth Light: Provides an evenly spread light for a shelf up to 24” (500 mm) high x 24” (500 mm) deep
- Quick Installation & Power: LUXX’s PowerTraxx™ electrifies standard shelving without tools and with plug-and-play results – no need to even remove products from the shelf

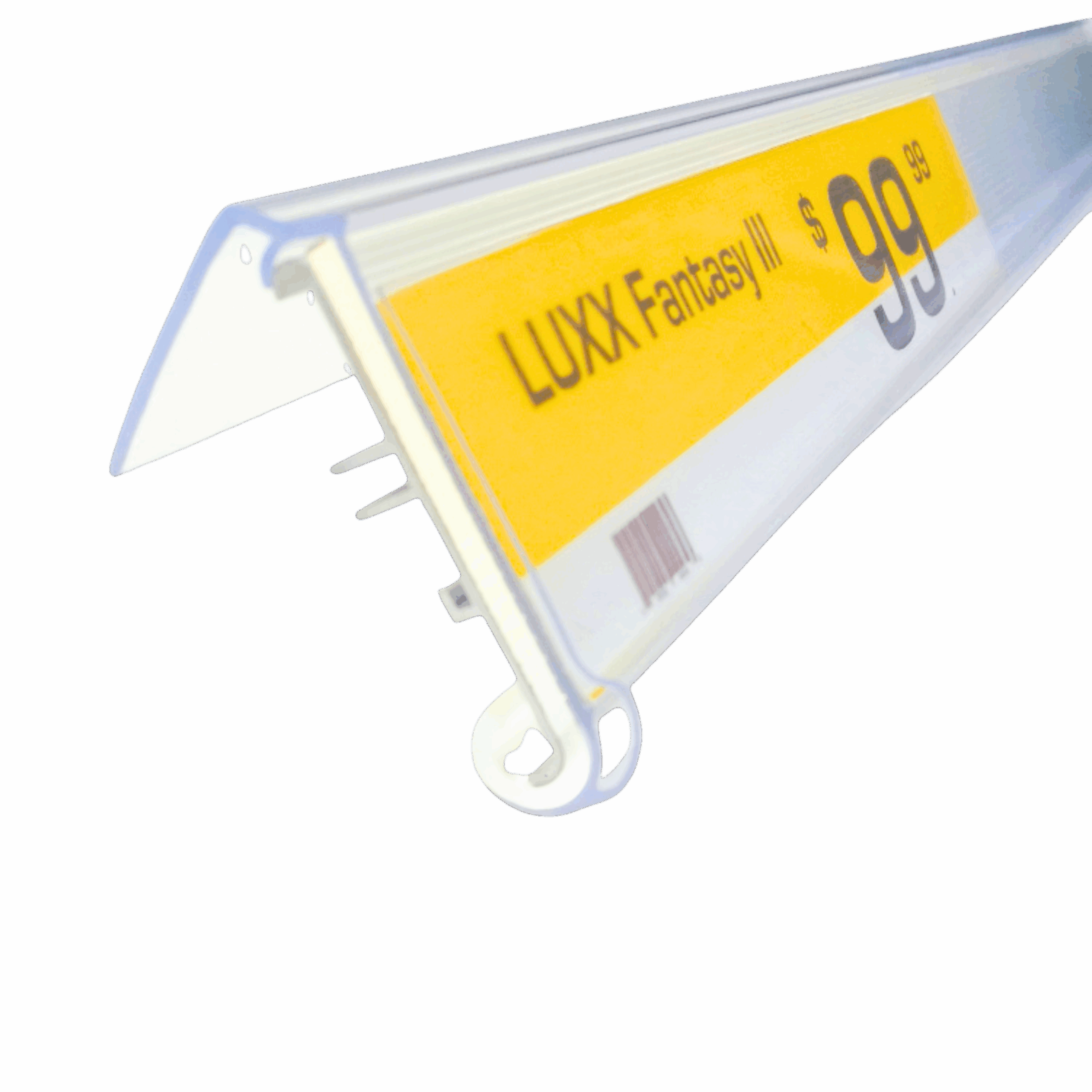

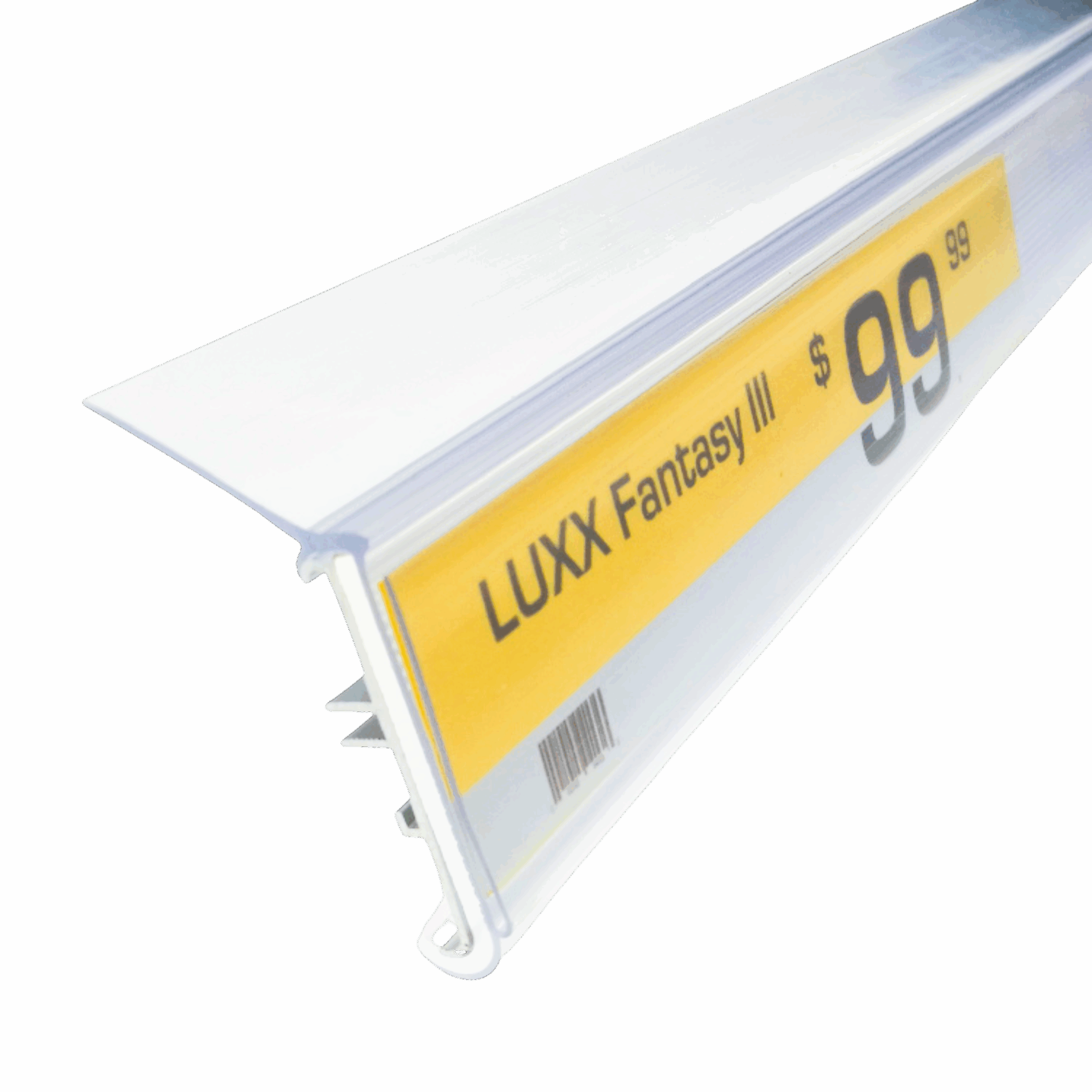

Compatible With Major Retail Shelving Types

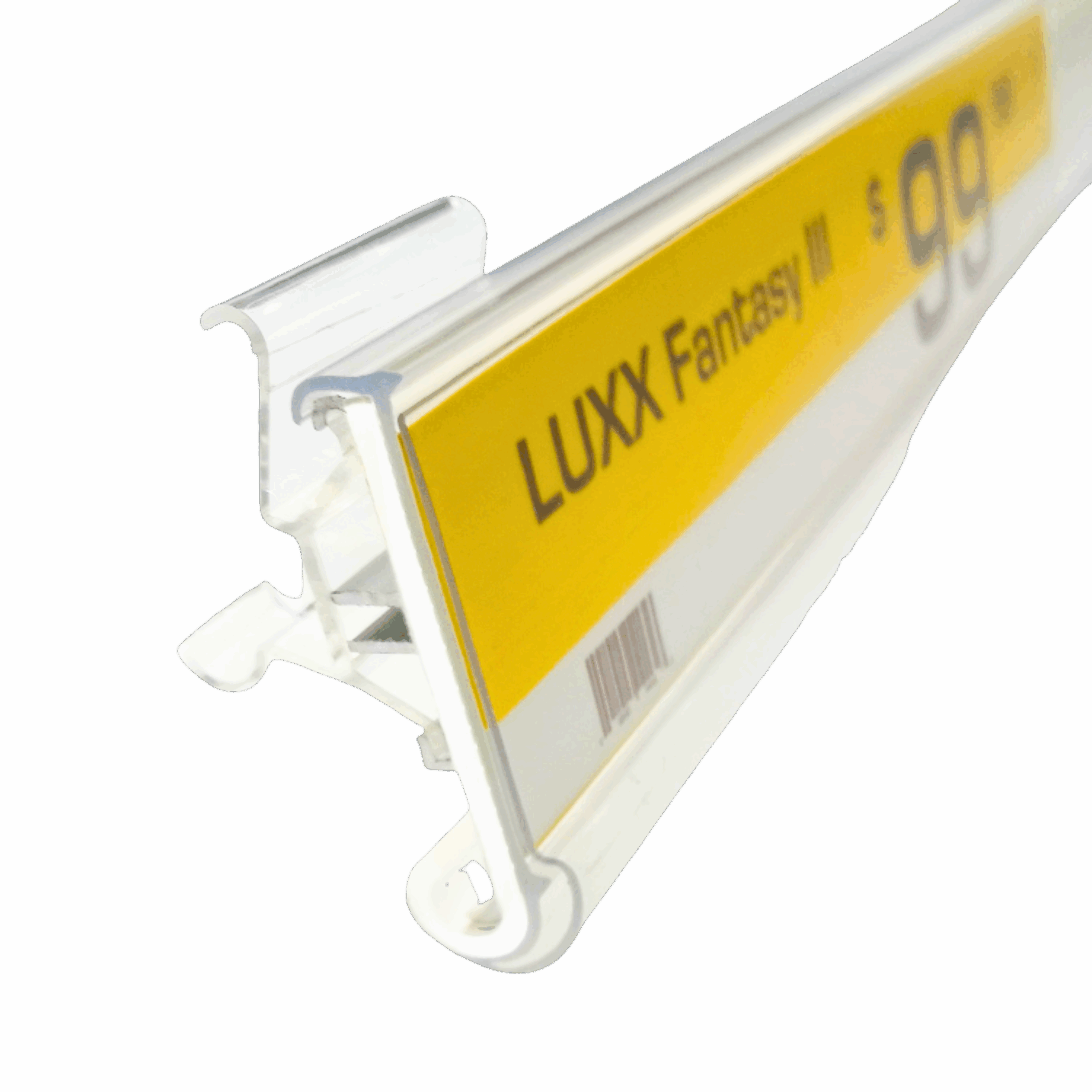

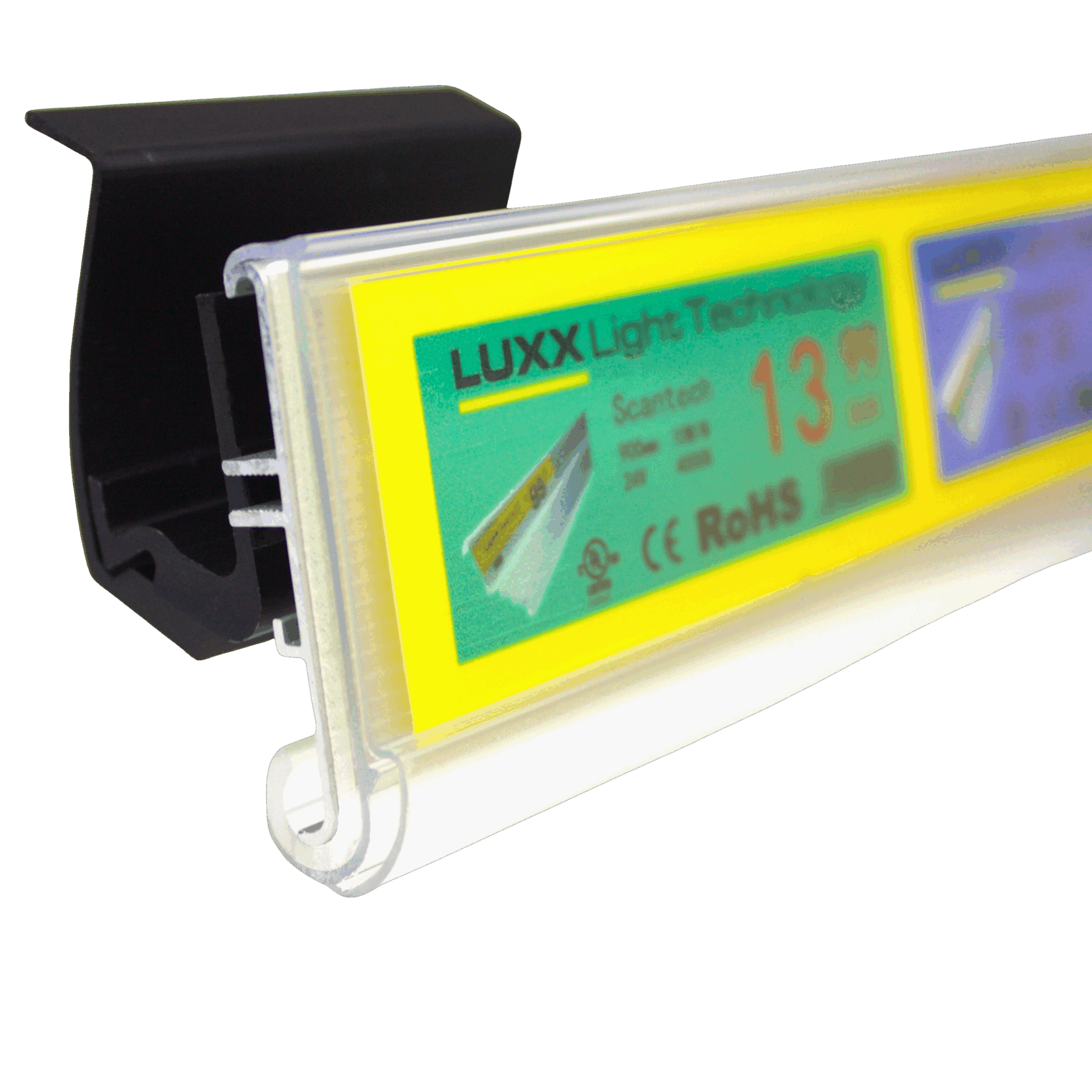

Supported Shelving Brands include Lozier®, Madix®, Tegometall®, and other standard retail shelving makes.
Specifications
| Shelf Deck Size |
24″ (609.6 mm) |
30″ (762 mm) |
36″ (914.4 mm) |
48″ (1219.2 mm) |
60″ (1524 mm) |
| Length* |
23″ (584 mm)[cite: 4] |
29.5″ (749.3 mm)[cite: 4] |
35.5″ (901.7 mm)[cite: 4] |
47.5″ (1206.5 mm)[cite: 4] |
59″ (1498.6 mm)[cite: 4] |
| Power |
6.2 W[cite: 4] |
7.9 W[cite: 4] |
9.6 W[cite: 4] |
13 W[cite: 4] |
16 W[cite: 4] |
| Input Voltage |
24 V DC[cite: 4] |
| * Custom lengths available on request. Maximum length 98.4″ (2500 mm)[cite: 4] |
| LEDS |
| Type |
CSP LED Strip[cite: 4] |
| Qty |
256 Pcs[cite: 4] |
| Color |
3500, 4500, 6500 K[cite: 4] |
| CRI |
90[cite: 4] |
| Beam Angle |
30° front side up, 30° back side down[cite: 4] |
| Efficiency |
100 lm/W[cite: 4] |
| Light Output |
620 lm[cite: 4] |
790 lm[cite: 4] |
960 lm[cite: 4] |
1300 lm[cite: 4] |
1600 lm[cite: 4] |
| Lumen |
1050 lm/m[cite: 4] |
| APPEARANCE |
| Material |
Anodized aluminium, PMMA, PVC[cite: 4] |
| Diffuser |
Clear[cite: 4] |
| Warranty |
3 years[cite: 4] |
