A flexible LED light sheet is an ultra-thin, cuttable panel of evenly spaced LEDs on a bendable substrate that lights a whole surface evenly instead of a single line. LightWave® sheets are under 7 mm thick, carry 324 LEDs per square foot, cut along marked lines, and bend around columns and curved millwork. They deliver CRI 80+ — CRI 90 on the CH2 RGBW build — at up to 130 lm/W.
Bring your ideas to life with LightWave® sheets — lighting that flows with your imagination.
Flexible and simple to install, this light sheet creates smooth, even backlighting across any space. With its adhesive backing, you can simply stick, shape, and shine.
Light With Limitless Flexibility
What Sets LightWave® Apart
LightWave® Gen 1 Plus
LightWave® CH2
LightWave® PIXX
LED panels, lightboxes & SEG backlighting
manuals & videos
Ready for Any Application

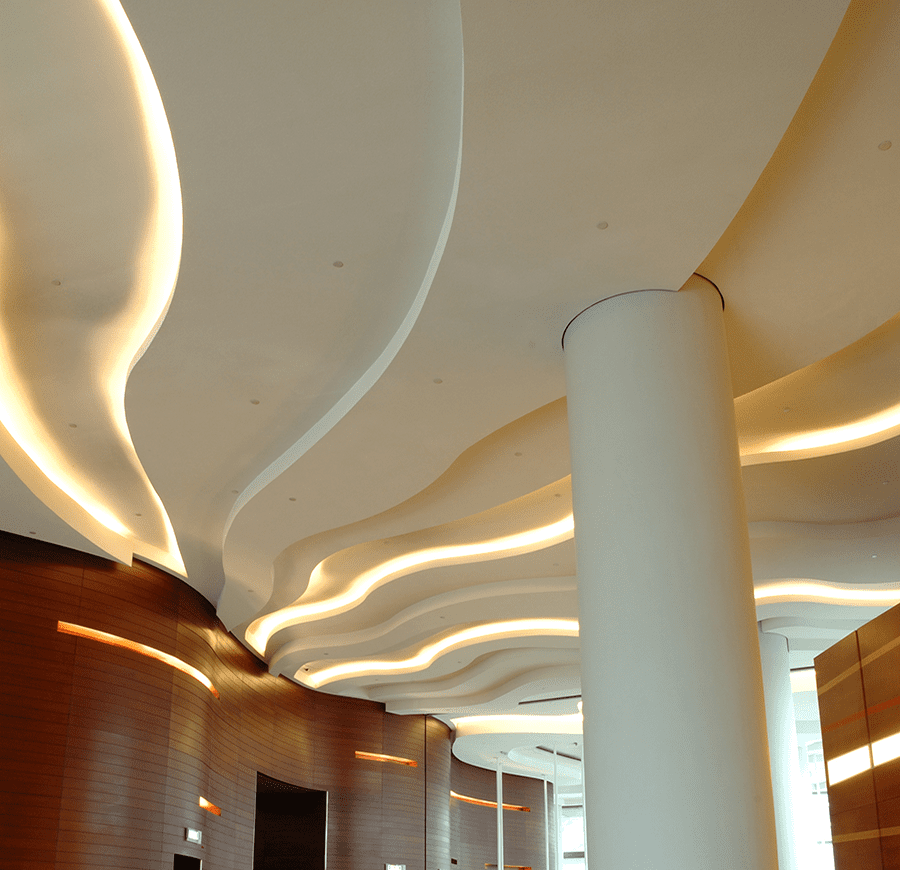

This flexible backlighting solution follows the architecture of your space. From intricate radiused millwork to expansive architectural features, LightWave® provides a continuous, uniform glow across surfaces that weren’t built to be flat.
-

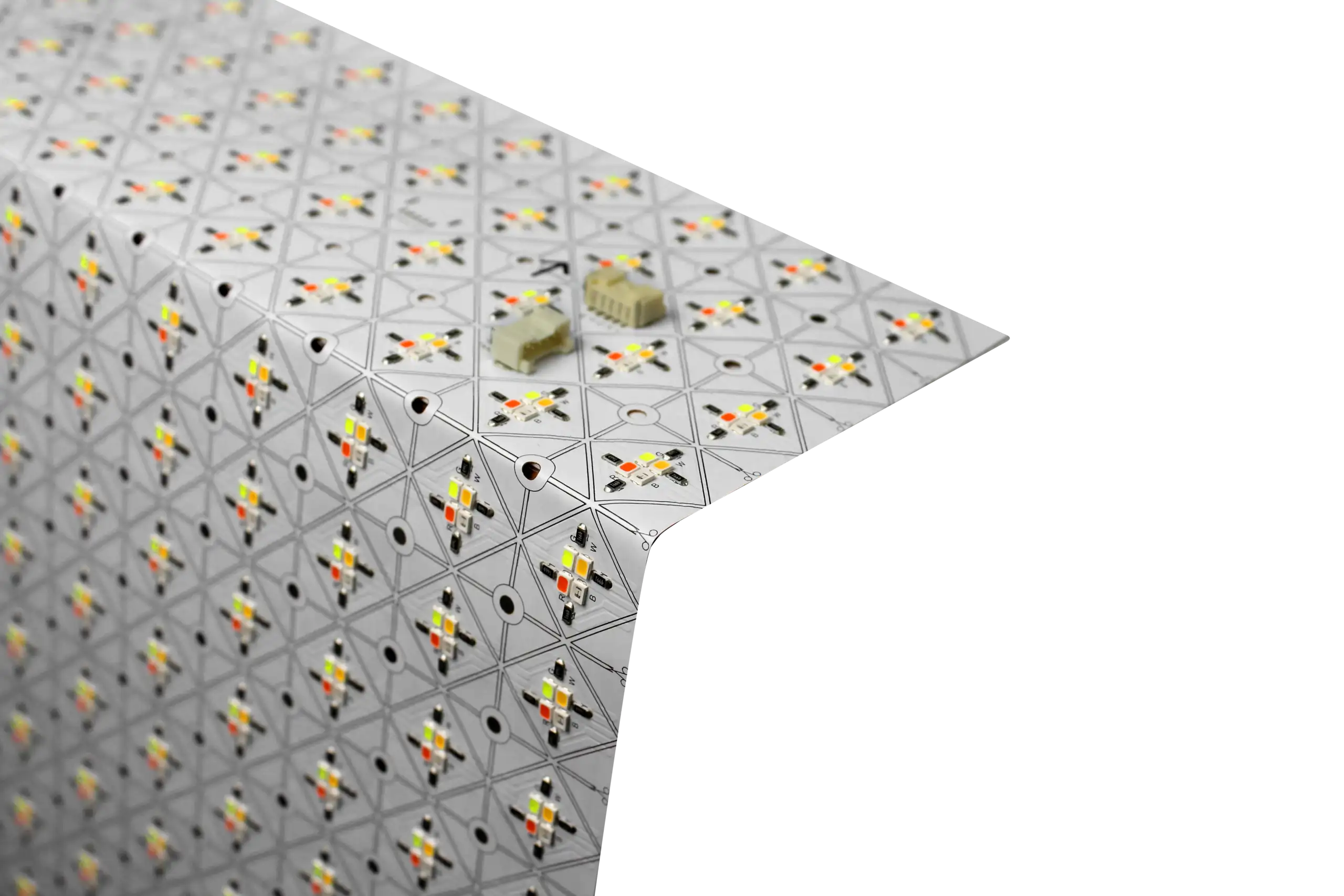

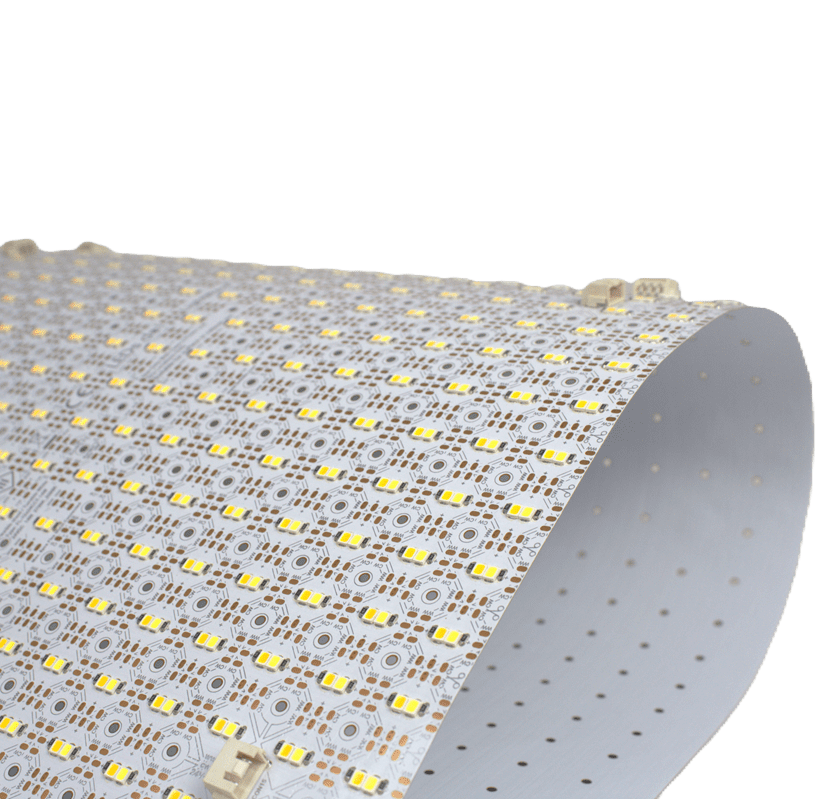

Flexible: Ultra-slim sheets and rolls designed to wrap and flex around pillars, curves, and tight radii without hotspots or dark gaps
-
Scale-Ready Versatility: Whether you are specifying a single custom display or a large-format architectural wall, LightWave is modular to ensure consistent brilliance at any scale
-
Any Color: Available in a full range of color temperatures, Tunable White, RGBW, and Addressable (PIXX) options for total creative control
-
Easy Installation: A “no-hack” installation process that eliminates material waste and simplifies deployment on-site
Product Line
Watch the LightWave® Playlist
View LightWave unboxing videos, manuals and more

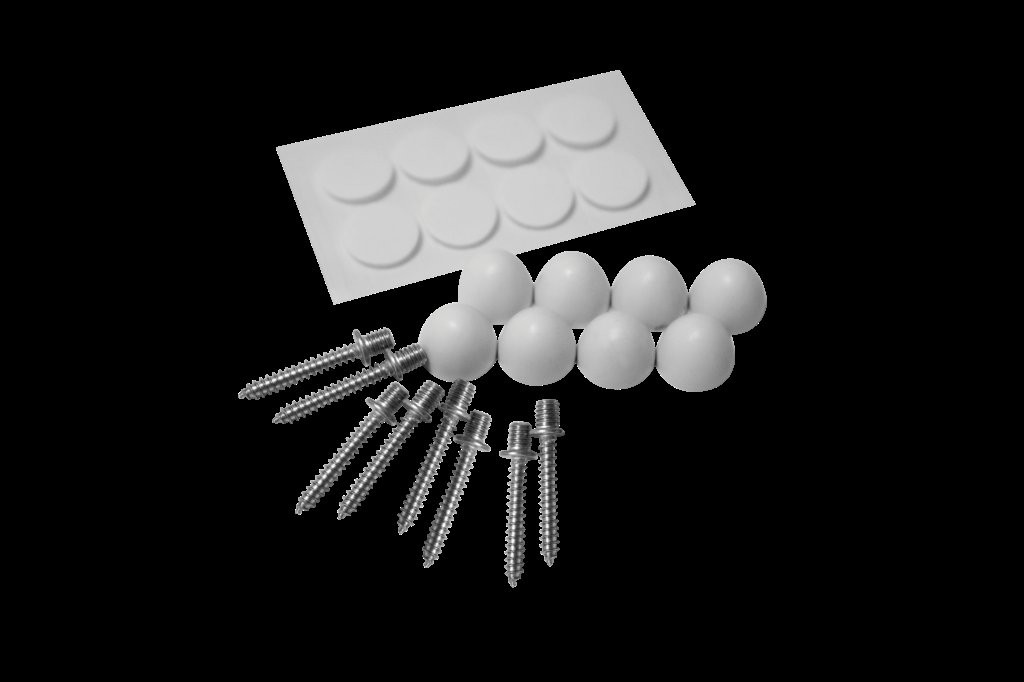

Screw Spacer Set
Our unique screw spacer set acts as a buffer between the LightWave® sheet and your forward facing material.
Flexible LED Light Sheet FAQ
What are flexible LED light sheets?
Ultra-thin, bendable panels of LEDs on a cuttable substrate that deliver smooth, even backlighting across flat or curved surfaces. LightWave® sheets are under 7mm thick.
How are LED light sheets different from LED strips?
Strips light a line; sheets light an entire surface evenly with no hotspots — right for signage, stone, lightboxes and large architectural surfaces.
Can LightWave sheets be cut to size?
Yes — cuttable along designated lines to any panel, frame or custom shape on site.
Sizing a driver? Use the free LED sheet power supply calculator — enter your variant and quantity, get the recommended driver size instantly.
Are they flexible enough for curves and columns?

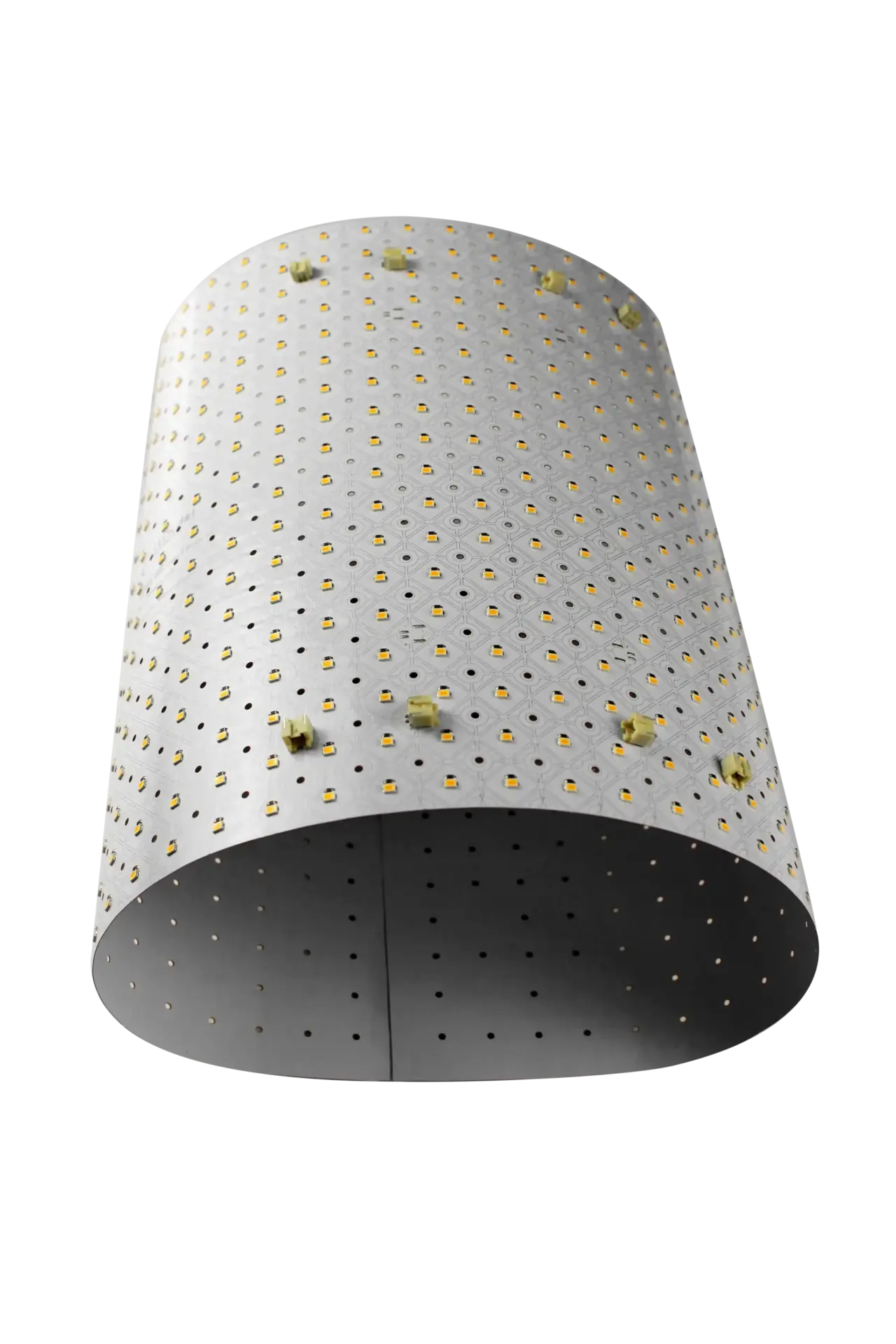

Yes. At under 7mm they bend around pillars, curved millwork and tight radii while staying even.
How do I attach LightWave sheets?

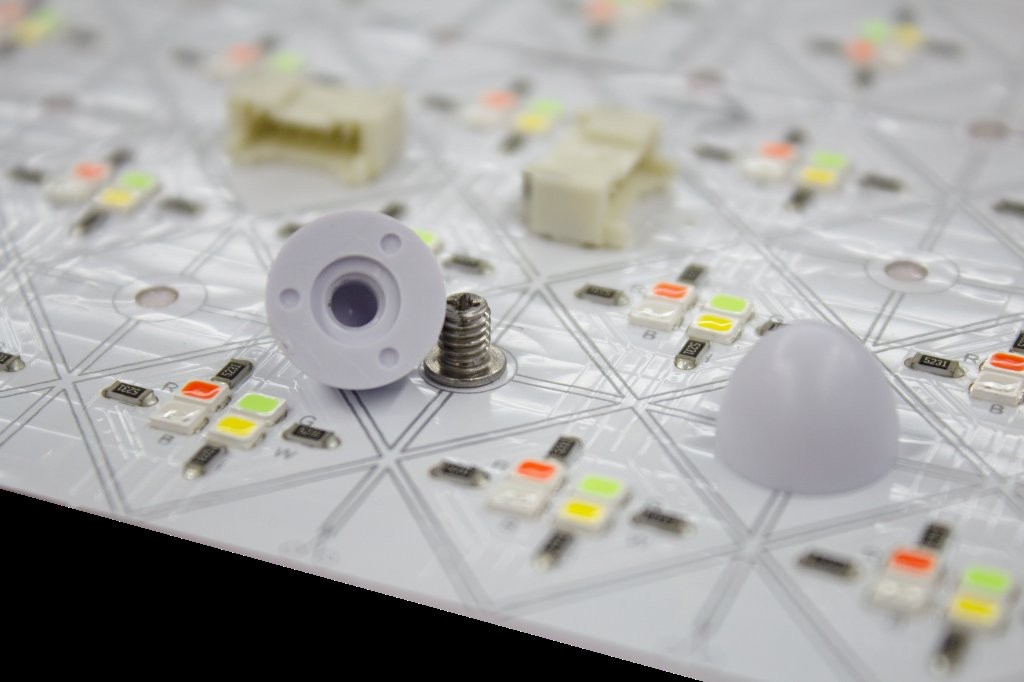

Most variants have adhesive backing; a screw spacer set holds the sheet off the forward material to control hotspots and heat.
What color temperatures are available?
1800K–6500K, plus Tunable White, RGBW and Addressable (PIXX).
What CRI do LightWave sheets deliver?
The line is rated CRI 80+; the CH2 RGBW variant reaches CRI 90 for true-color retail and museum backlighting.
Are LightWave sheets dimmable?
Yes, with a compatible driver/controller; Tunable White and RGBW also adjust color.
Can LightWave handle large-format architectural walls?
Yes — Roll It! ships in continuous lengths up to 40 ft for feature walls, signage and transit corridors.
What is the difference between RGBW and Addressable (PIXX)?
RGBW sets the whole sheet to one color; PIXX uses SPI/pixel control for motion, gradients and animation.
Is there a warranty?
Yes — a 5-year warranty. See the warranty page for full terms.
How do I get a quote or spec help?
Send application, dimensions, color temperature and quantity through the quote form.
LightWave Product & Resource Guide
Explore our complete LightWave LED light sheet lineup and find everything you need to succeed:
Product Pages
- LightWave® Gen 1 Plus → Modular single-color, tunable-white and RGBW flexible LED sheets
- LightWave® CH2 → Higher-CRI sheets; the RGBW build reaches CRI 90 for retail, hospitality and museum work
- LightWave® PIXX → Addressable pixel sheets with SPI control for motion and animation

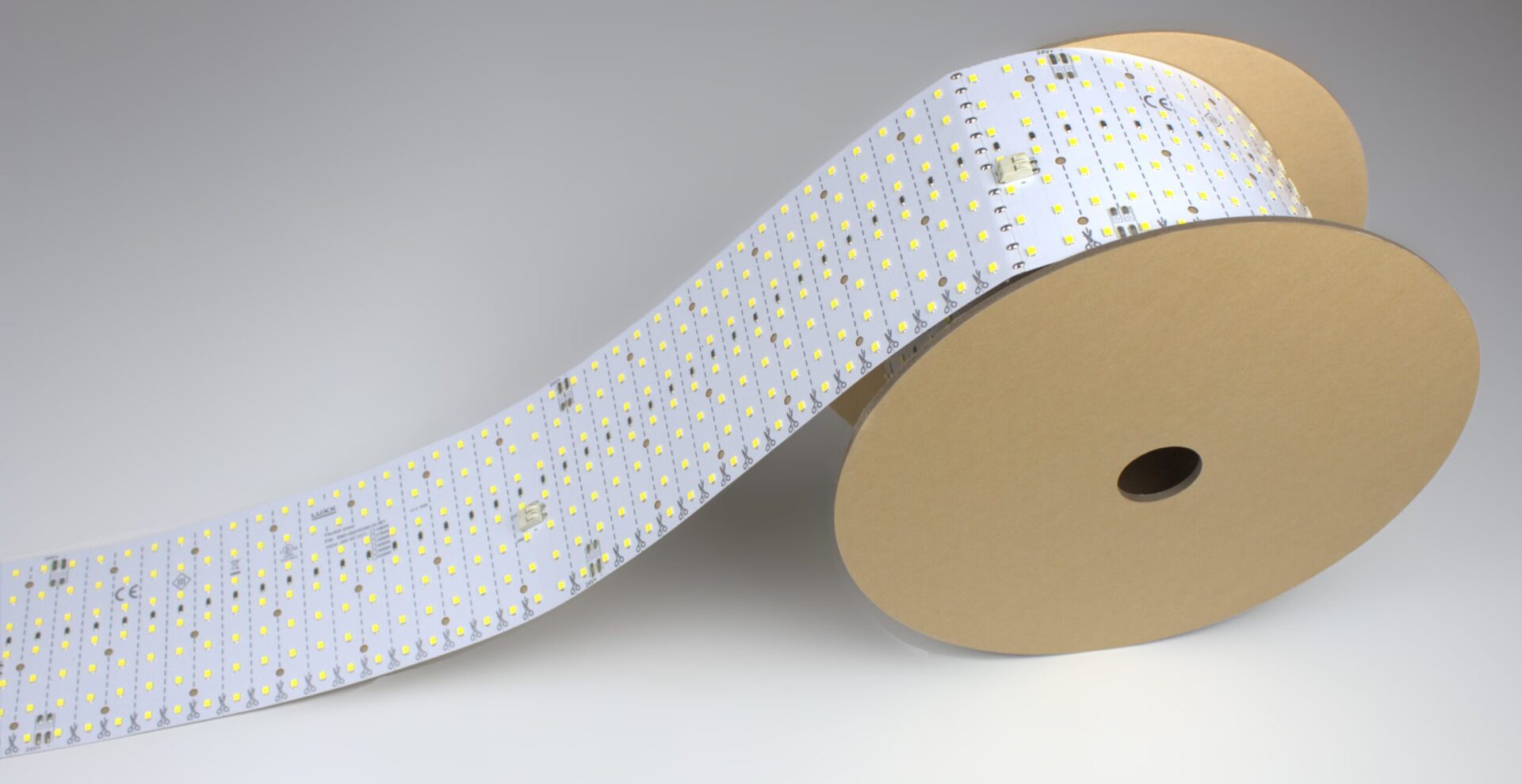

- LightWave® Roll It! → Continuous rolls up to 40 ft for large-format and cove runs
