LIGHTPANEL One RGB and RGB+W

Customizable RGB & RGB+W LED Light Guide Panels

Download Specs

Description

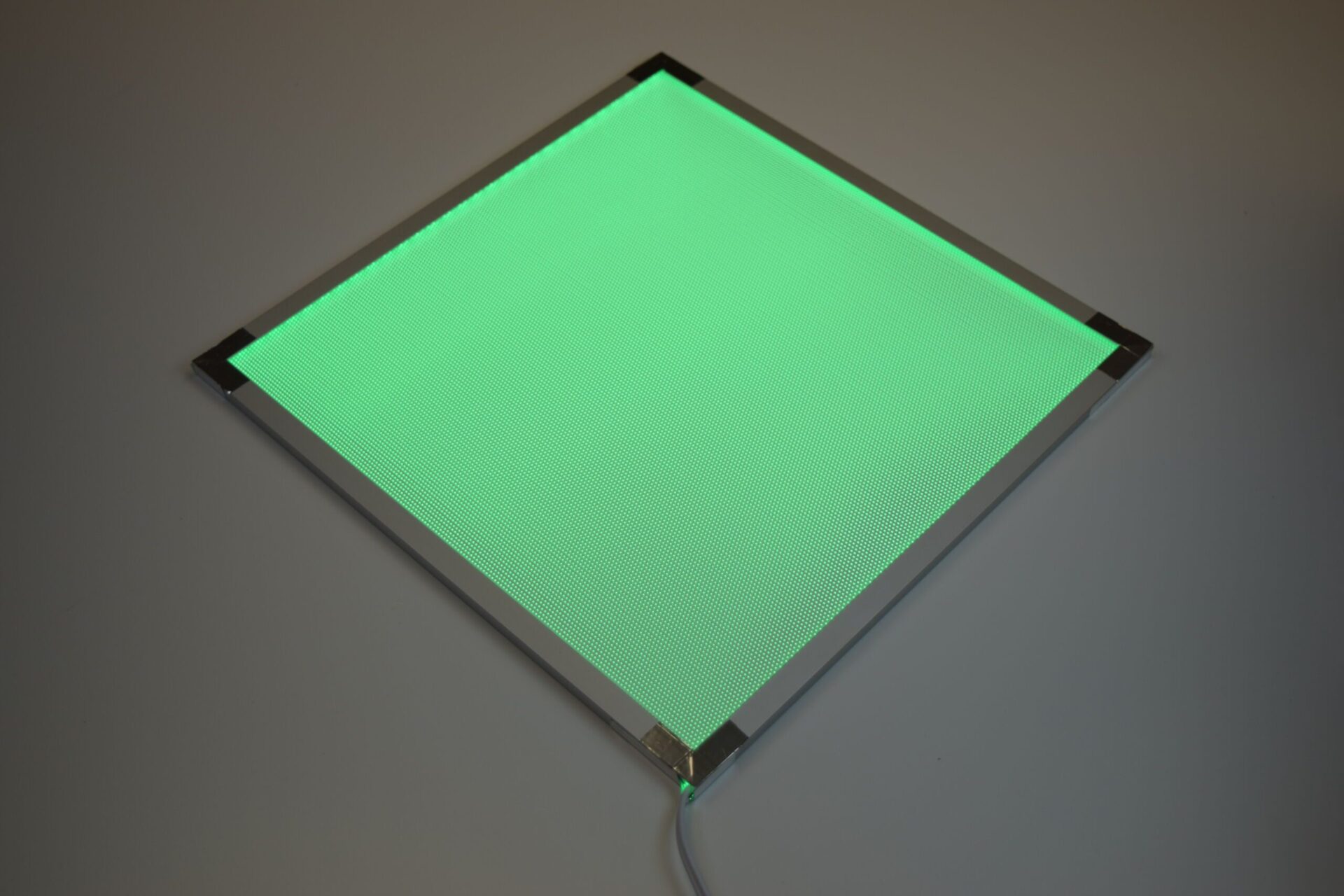

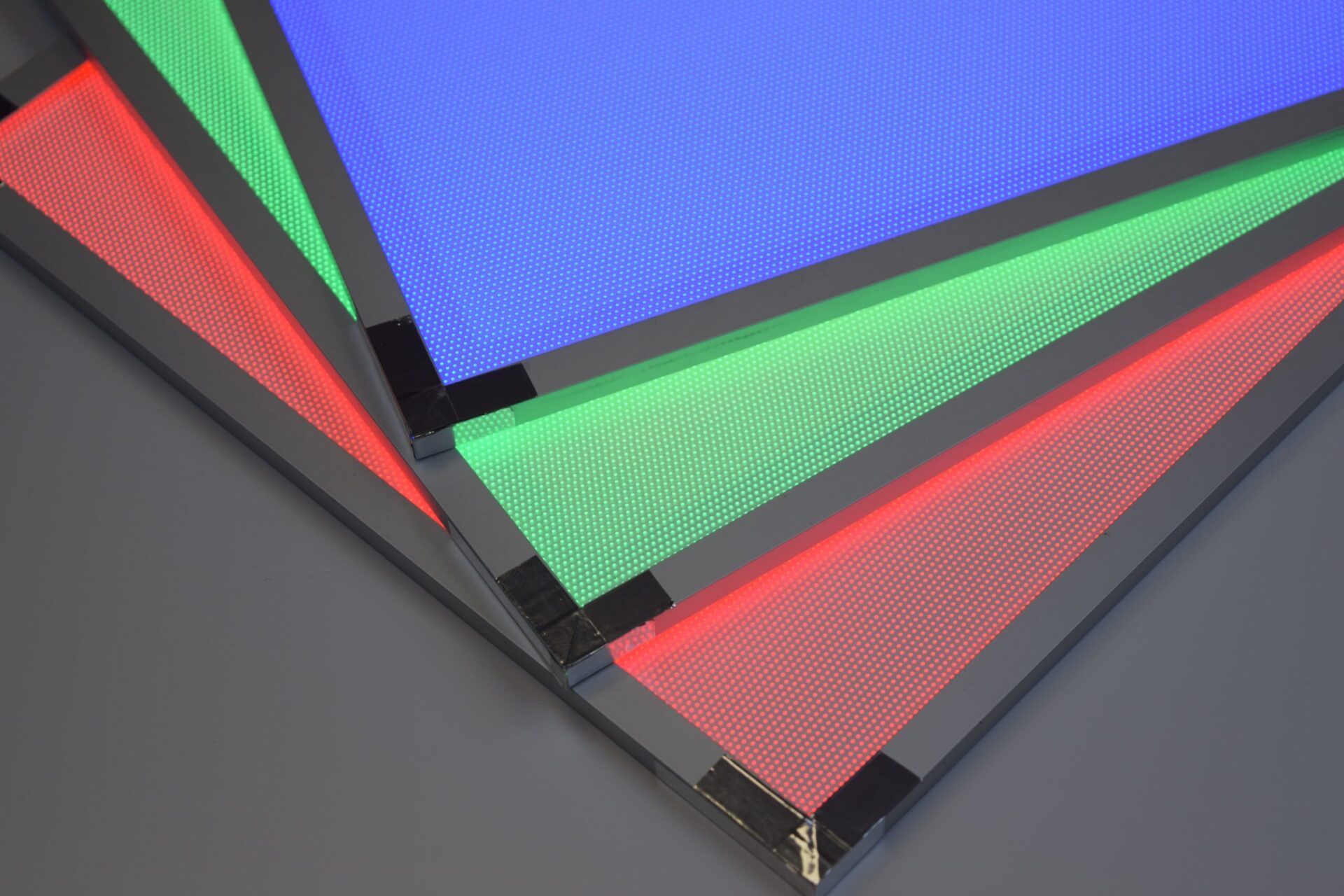

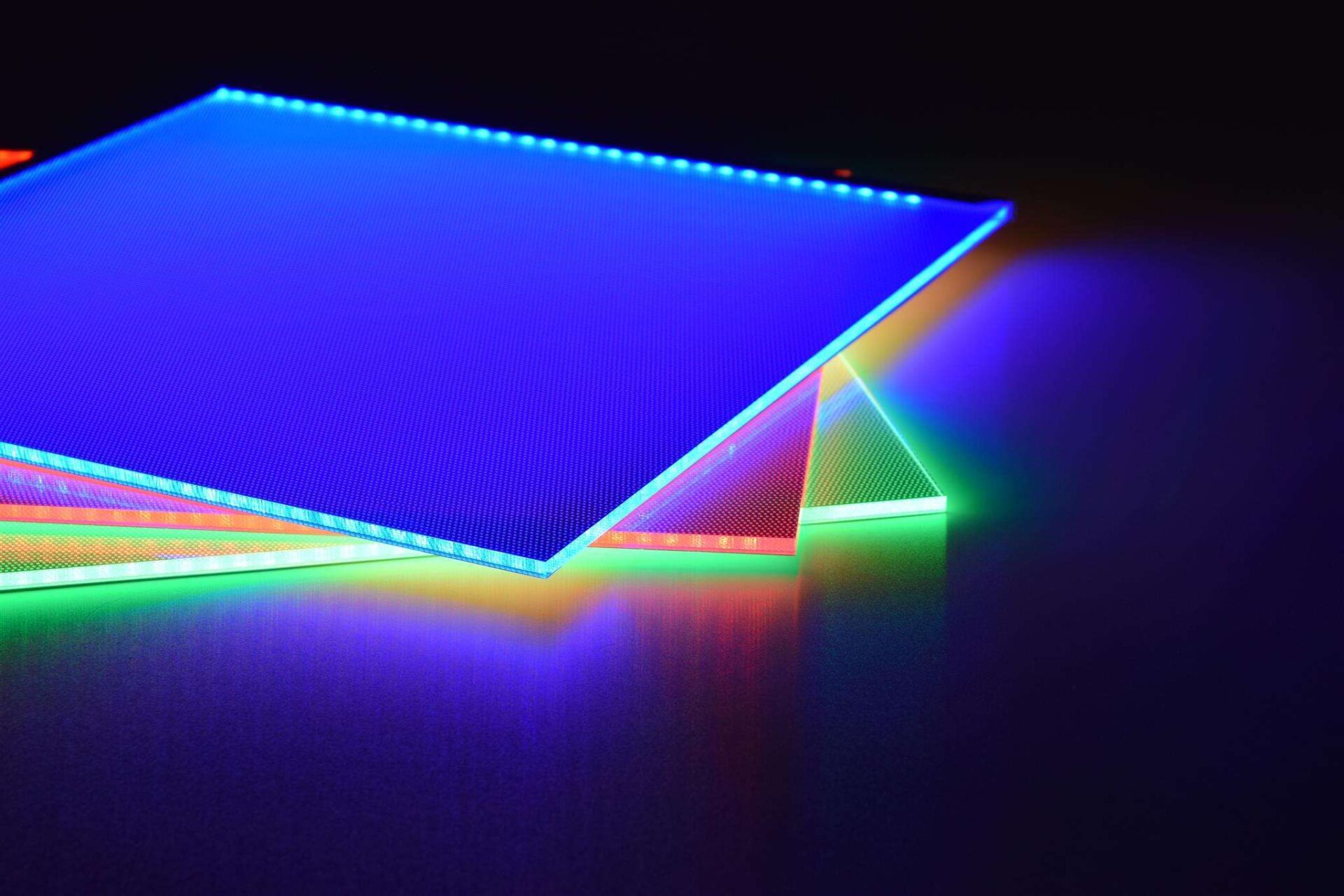

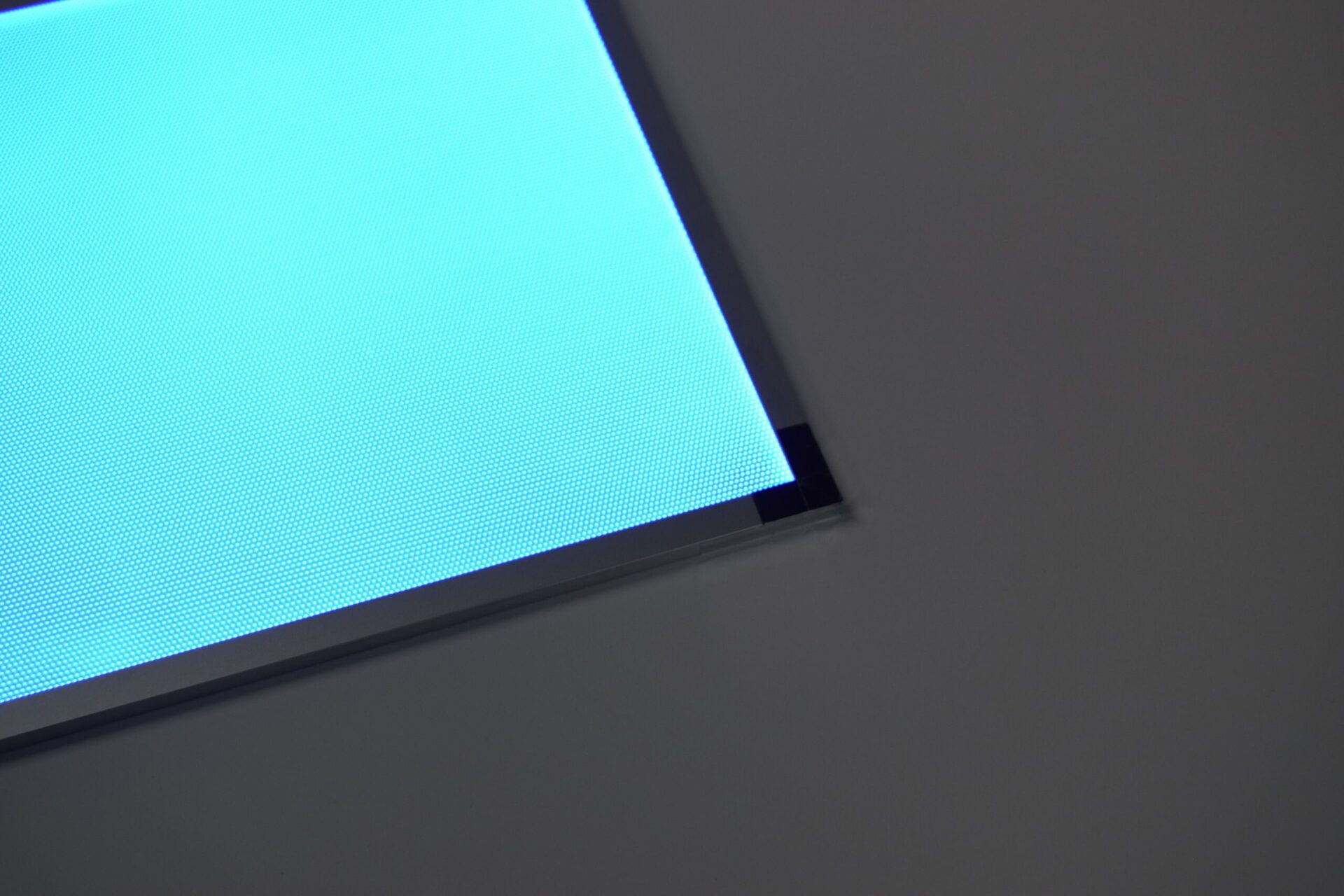

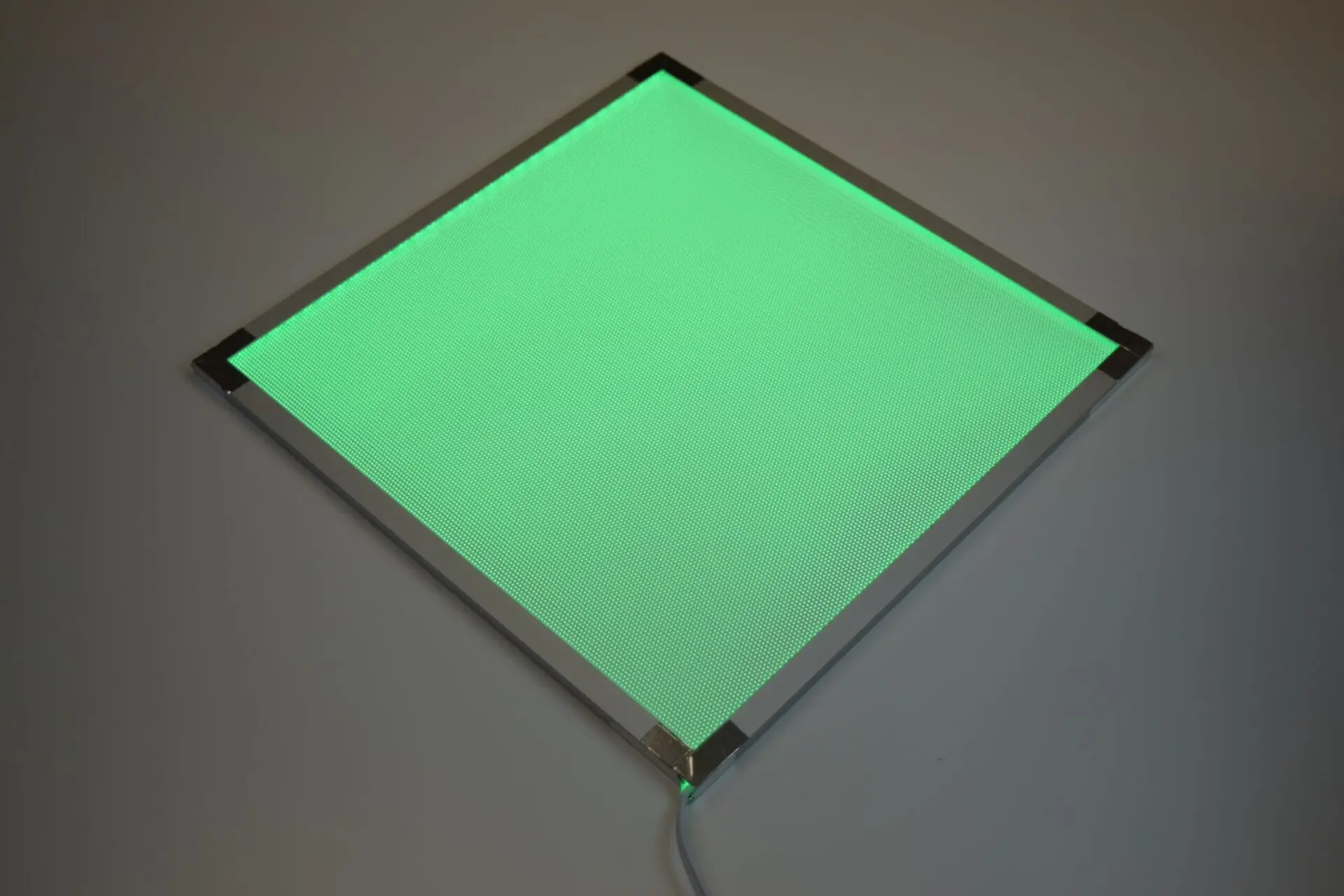

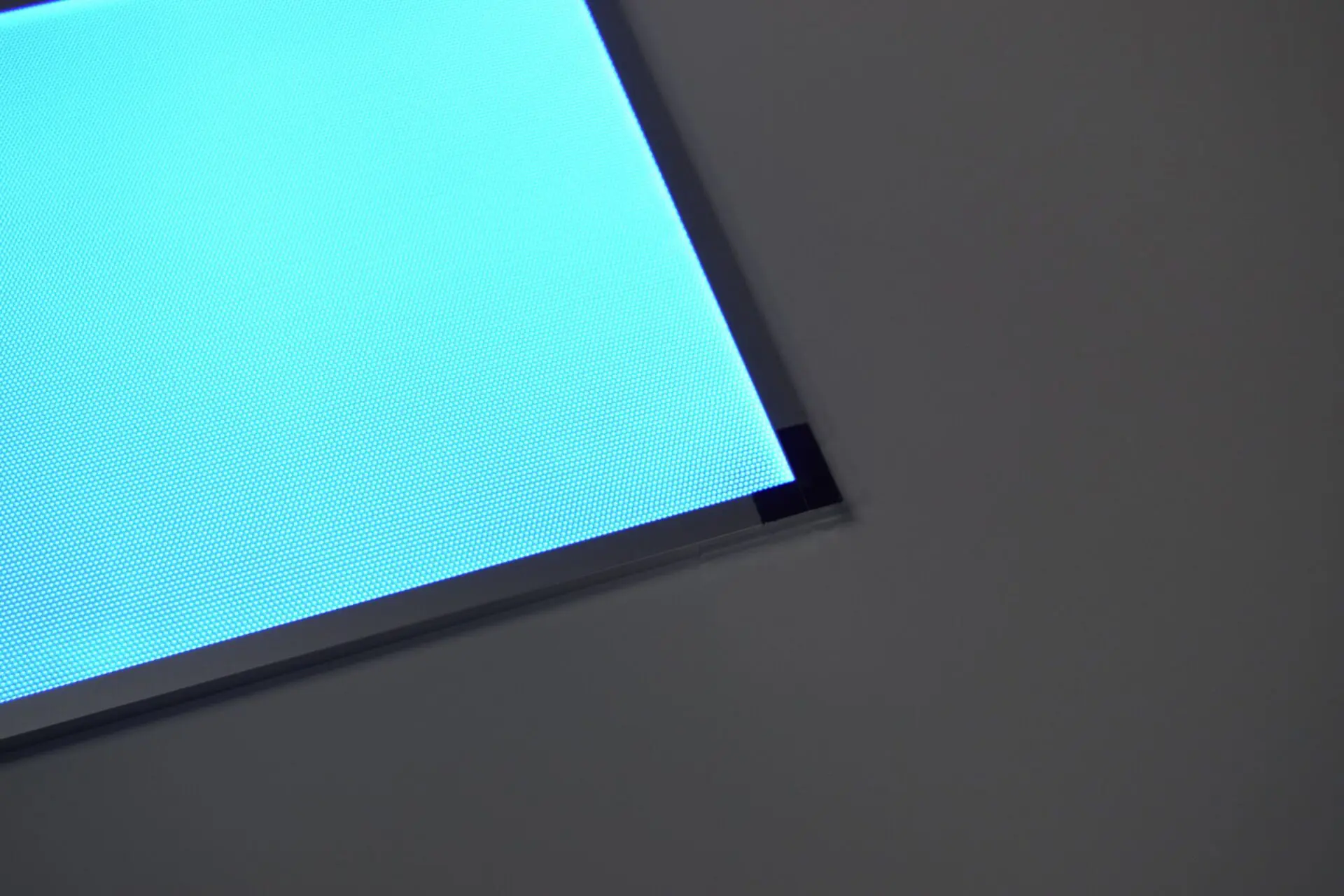

Light up your world in full color with our LUXX edge-lit RGB and RGB+W LED panel.

This panel brings unmatched flexibility to your lighting design, illuminating every corner with vibrant, consistent light. With endless options for placement and style, these RGB and RGB+W panels are ready to adapt and add a splash of brilliance to any application.

Manufacturing Technology	Laser machine for precise cutting of panel and laser engraving for fully optimized dot diffusion pattern

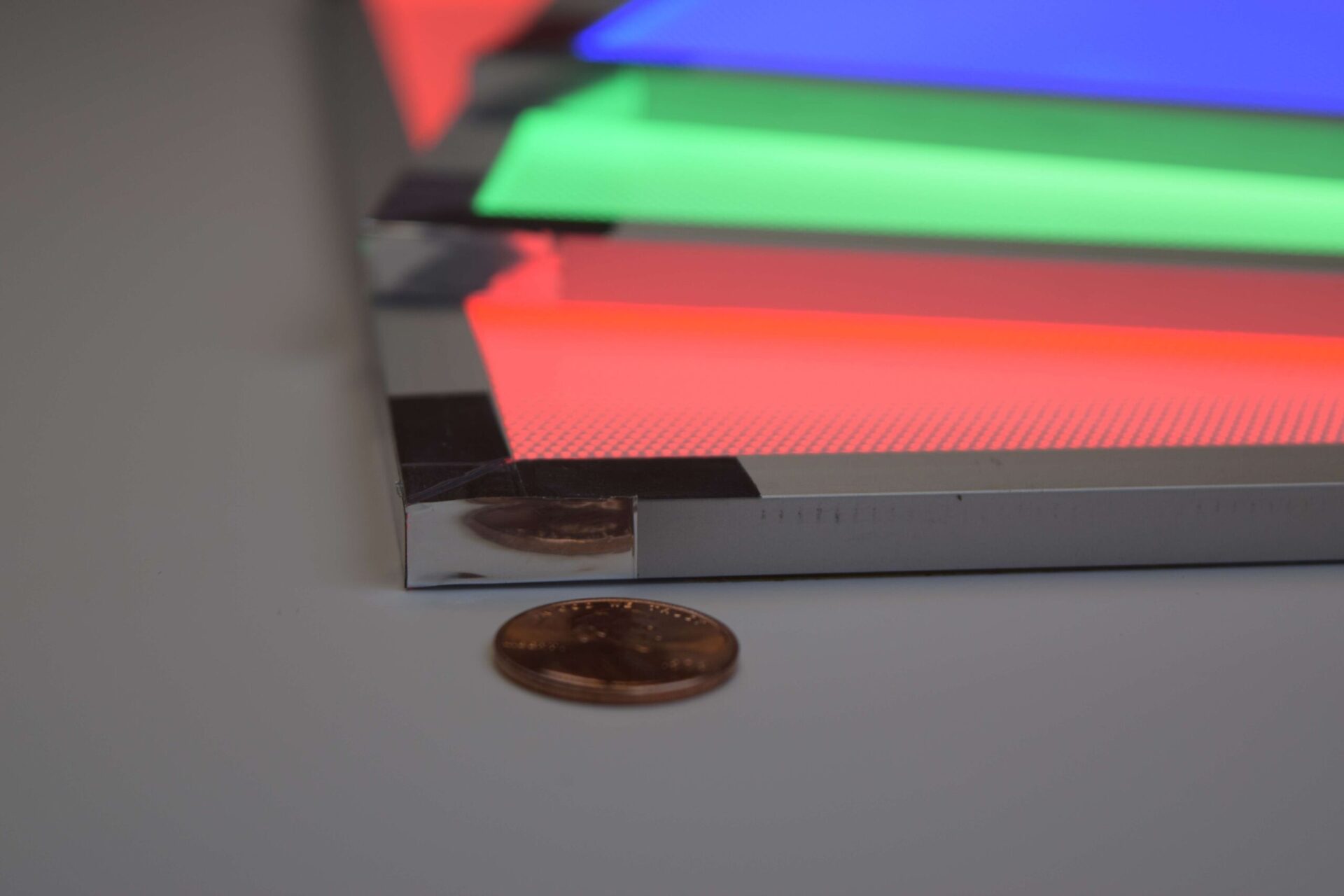

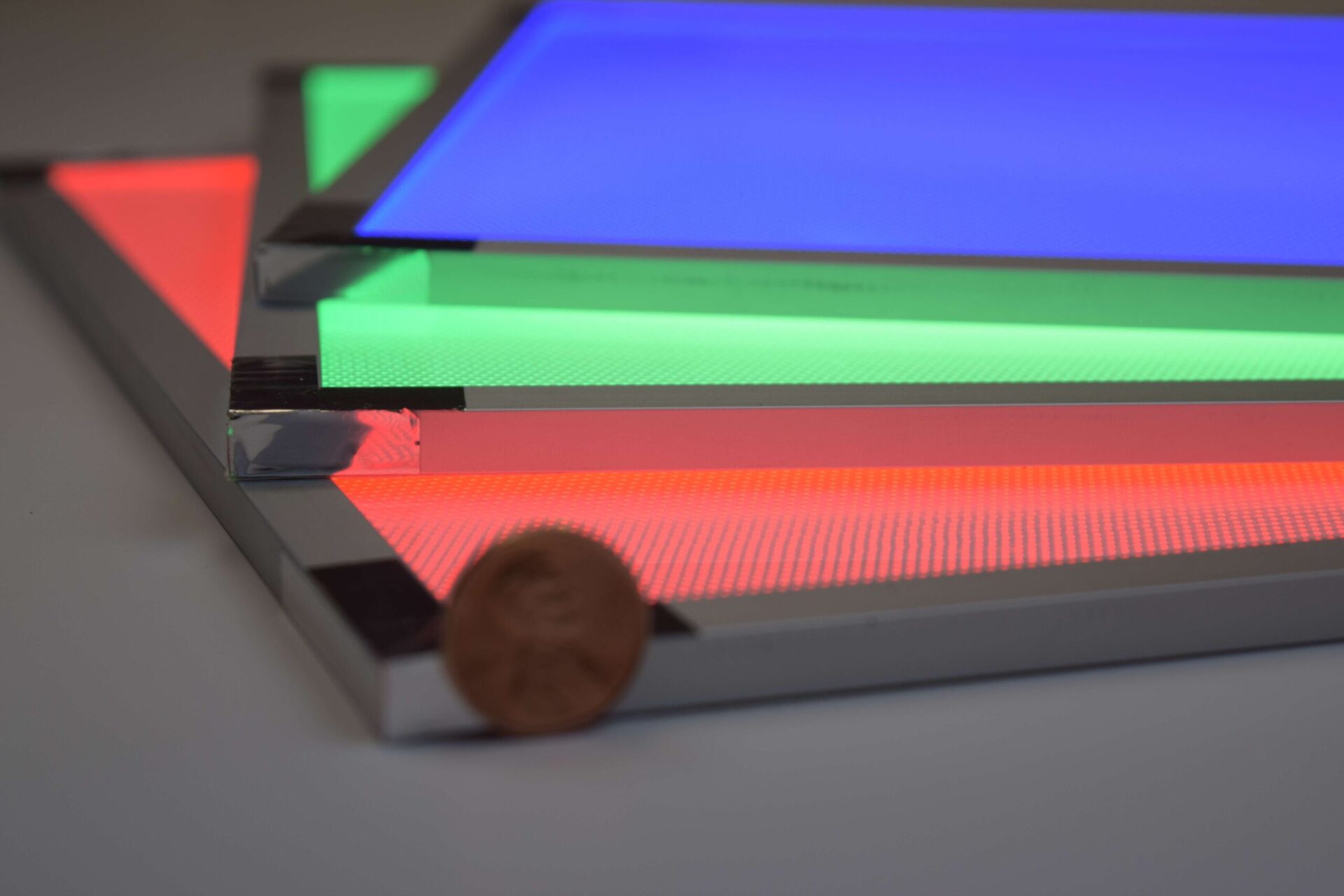

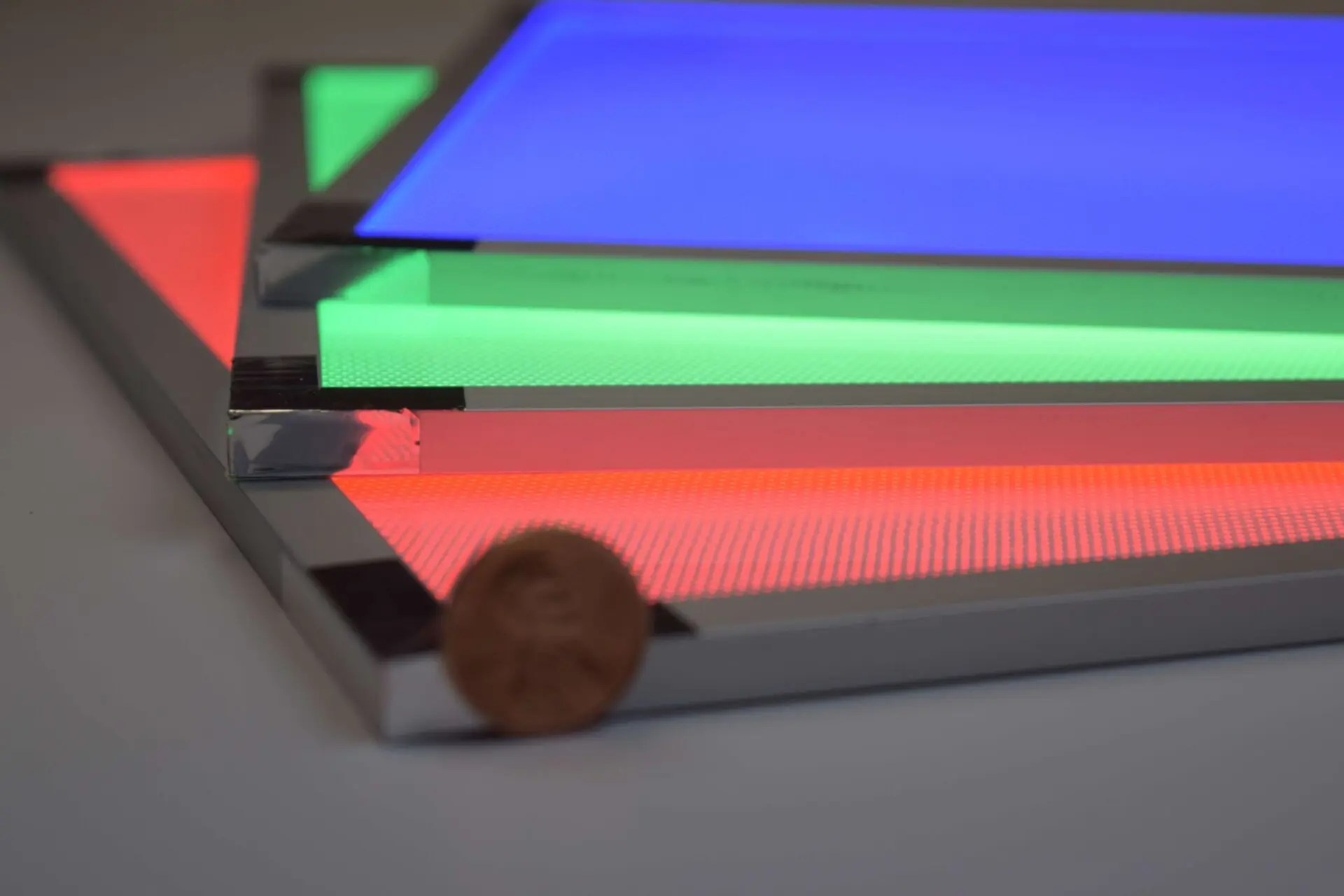

PMMA Panel Thickness	0.177” (4.5mm), 0.236” (6mm), 0.354” (9mm)
Minimum Panel Size	3.93” x 3.93” (99.82mm x 99.822mm)
Maximum Panel Size	47.24” x 98.42” (1199.896mm x 2499.868mm)
Mounting	No mounting accessories or hardware included
Application	Indoor (IP Protected version available upon request)
Overall Finish	J-Chanel, Crystal or Taped
Light Entry	1-sided, 2-sided, 3-sided, or 4-sided
Diffusion Film or Diffusion Panel	Optional
Panel AIR Shield (Reflection Sheet)	Optional, thickness .0007” (.02mm)
Taped	Optional
Power Exist	Customer define, bottom left, bottom right, upper left, upper right, bottom middle, upper middle
Power Exit Connecting Cable	6” White Male IP54 Connecting Cable or Barrel Plug (customer define)

Color Temperature	CRI	LEDs/Ft	Lumens/Ft	Power
RGB / RGB+White	/	36 LEDs/ft	/	4.5W/ft

Power
Input Voltage	24V DC
Power Supply	Optional, 24V DC power supply not included, can be purchased separately
Wire Output Connector	Optional, 40’’ White Female IP54 Connector or 5.5×2.1 mm DC barrel plug
Operating Temperature	-20°C~+40°C

Installation
Mounting	No mounting accessories or hardware included
LEDs & Panel	24 months
Certification	UL

Light Guide Panels for Every Need

LUXX LED Light Panels are customizable to suit virtually any specification. Our Light guide panels (LGP) come in any size shape, color. Our materials meets strict safety requirements. And our light panels offer the customizability to make any backlighting vision come to life.
