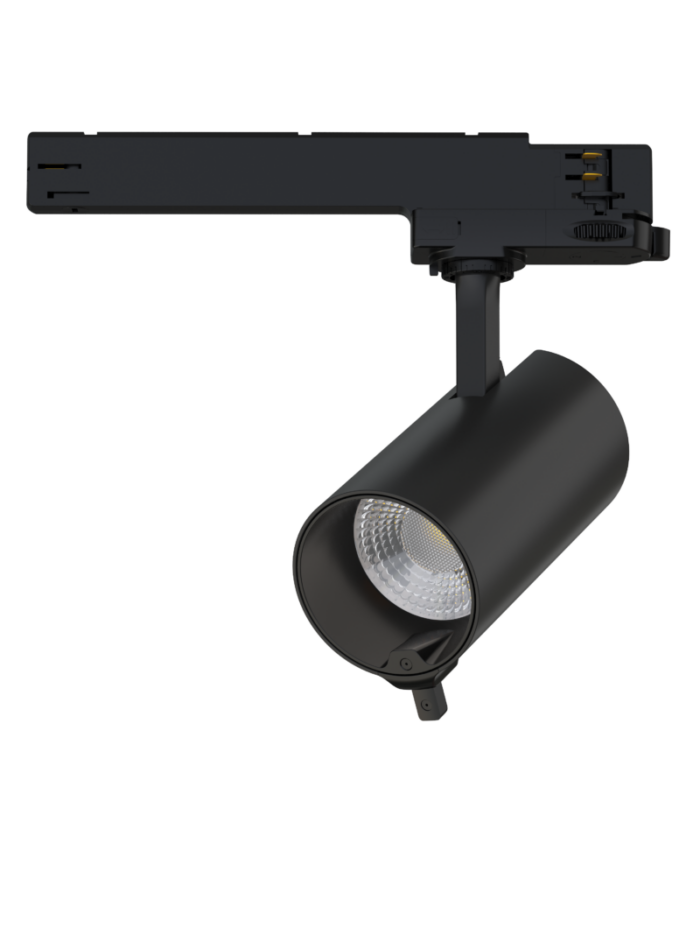

AI Light

This smart track light uses AI to detect the unique needs of your product, serving up the perfect light every time.

Download Specs

Description

This smart track light uses a sensor to detect your product’s unique needs.

What color is the item? What is the surrounding brightness? Based on the sensor’s readings, the light’s color temperature and brightness are optimized.

Suitable for environments with changing conditions and where products are regularly rotated, the AI light is a game changer for anyone looking to optimize their lighting to suit a range of products.

Installation

	AI Pro 15W Series		AI Pro 30W Series
	EU Version	US Version	EU Version	US Version
Installations type	Track 4wire 3circuit	Track H-Type	Track 4wire 3circuit	Track H-Type
Rotation	360° (X-axis), 90° (Y-axis)

Electrical

	AI Pro 15W Series		AI Pro 30W Series
Input voltage	220 – 240V AC 50Hz	100 – 240V AC 60Hz	220 – 240V AC 50Hz	100 – 240V AC 60Hz
Input power	15W		30W
Displacement Factor	0.92 type
I-THD	<15%
Starting time	<2S
Turn off time	<2S
Noise	<20dB
CCT	2700–6500K
Lumen	1150lm@3000K		2300lm@3000K

Optics

	AI Pro 15W Series	AI Pro 30W Series
CCT	2700–6500K
Lumen	1150lm@3000K	2300lm@3000K
Lumen efficacy	76lm/w
Beam angle	15°/ 24°/ 36°
CBCP/td>	8450cd@15deg,3000K	18600cd@15deg,3000K
Pst_LM	<0.8
SVM	<0.1/td>

Control

	AI Pro 15W Series		AI Pro 30W Series
Tuning, Switching, Dimming, Grouping, Energy saving mode	By Caimeta® App
Foot Traffic Monitoring	By built-in sensor (optional)

Environment

	AI Pro 15W Series		AI Pro 30W Series
Ambient temperature range 8	-10°C ~ +30°C
Relative humidity range	20% ~ 85%RH
Storage temperature range	-25°C ~ +75°C

Ordering Data

Product Name	Model	Dimension	Gross Weight	Net Weight	Qty/Carton
AI Pro Series 15W	AI-15-EU	550 x 305 x 275mm	11.5kg	8.5kg	12pcs
AI Pro Series 15W	AI-15-US	550 x 305 x 275mm	11.5kg	8.5kg	12pcs
AI Pro Series – foot traffic 15W	AI-15F-EU	550 x 305 x 275mm	11.5kg	8.5kg	12pcs
AI Pro Series – foot traffic 15W	AI-15F-US	550 x 305 x 275mm	11.5kg	8.5kg	12pcs
AI Pro Series 30W	AI-30-EU	335 x 300 x 485	9kg	10kg	10pcs
AI Pro Series 30W	AI-30-US	335 x 300 x 485	9kg	10kg	10pcs
AI Pro Series – foot traffic 30W	AI-30F-EU	335 x 300 x 485	9kg	10kg	10pcs
AI Pro Series – foot traffic 30W	AI-30F-US	335 x 300 x 485	9kg	10kg	10pcs
