LIGHTPANEL Vizzion

LED light panel with built-in mounting for effortless installation

Description

LIGHTPANEL Vizzion LED Light Panel offers beautiful light with simplicity. Designed with an optional integrated mounting rail, it’s ideal for quick and seamless installation. Delivers a clean, modern aesthetic, while providing even, high-quality illumination. Perfect for retail, architecture, custom and industrial projects the built-in system ensures easy setup and long-lasting performance.

Lasting: Long life due to our proven J-Channel thermal management with integrated heat sink
High quality: Tier 1 ANSI Binned LED strips
Slim: Minimal profile
Custom made at our advanced USA facility to reach your design specifications, on time and on budget

Specifications

Manufacturing Technology	PMMA optical grade cell cast acrylic, laser cut & engraved for optimized dot diffusion
PMMA Panel Thickness	0.197” (5mm)
Size	Customizable size with maximum size to 74”x48” (1880 x 1219mm)
Application	Indoor (IP Protected version available upon request)
LED Light Entry	2-sided LED strips
Panel Vizzion Shield	Thin reflective sheet for additional brightness and even light distribution
Taped	Sides taped with durable UV & solvent resistant metalized polyester film

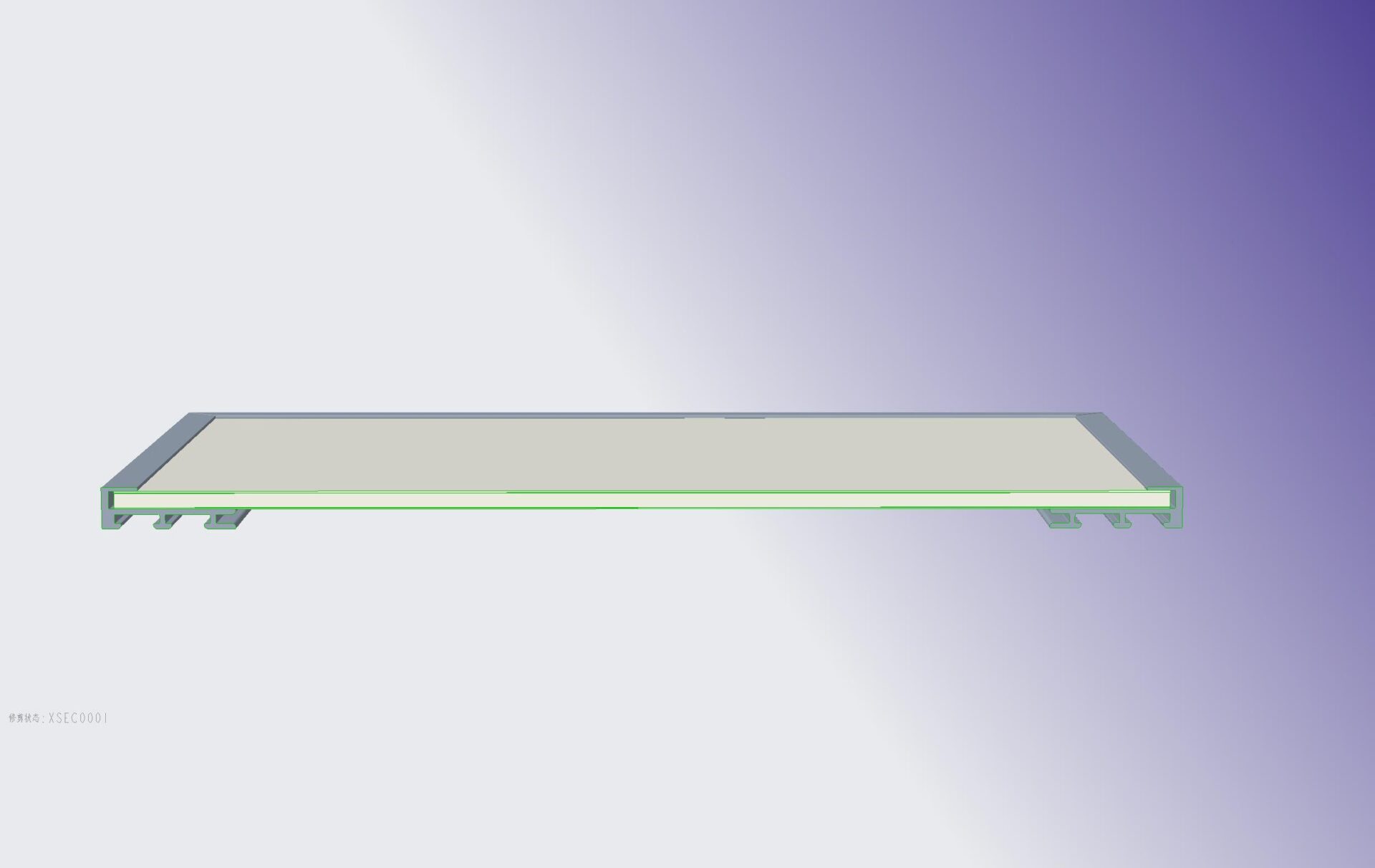

Finish	Double Channel J profile with integrated heat sink technology for reliable thermal management, framed four sides
Connecting Cable	6”White Male IP54 Connecting Cable/ DC barrel connector

Lighting

Color Temperature	1800K-6500K, CCT, RGB
LEDs	3020 SMD,160LED/m

Electrical

Power	5.5W/ft,24V DC Power Supply with AC cord and DC white Female IP54 Cord/DC barrel
Operating Temperature	20°C~+40°C

Installation

Installation	Mounting rail available upon request

Warranty and Certifications

LEDs & Panel	24 Months

Light Guide Panels for Every Need

LUXX LED Light Panels are customizable to suit virtually any specification. Our Light guide panels (LGP) come in any size shape, color. Our materials meets strict safety requirements. And our light panels offer the customizability to make any backlighting vision come to life.
