RGBW COB LED Tape Light

RGBW COB LED Tape, 24V

UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.

A premium 10mm-wide COB RGBW LED tape with 784 chips, operating at DC 24V. Engineered for uniform linear illumination with full RGB + Warm White output.

Designed for lighting engineers and procurement professionals demanding precision, reliability, and efficiency.

  • SPI Control

    SPI-driven protocol means fast, flicker-free lighting at your command.

  • DC 24V Voltage

    Supports standard cascading up to 5 meters per run with consistent illumination throughout.

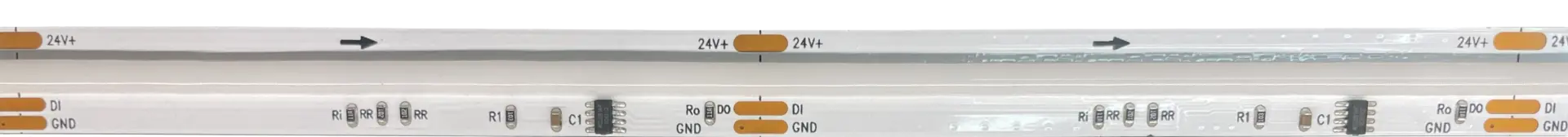

  • Flexible FPC Design

    High-thermal-conductivity flexible circuit board, allowing free bending for easy routing and installation in complex profiles.

  • IP20 & IP65 available

    IP20 for interiors, IP65 for outdoors. Light with confidence in any environment

  • High-Tack Thermal Adhesive

    Pre-applied, high-adhesion, thermally conductive

    double-sided tape on the back ensures fast and durable installation on any clean surface.

  • 180° Beam Angle

    LED chips mounted directly on FPC achieve a full 180° emission angle, maximizing light distribution and surface wash efficiency.

Specifications

Model COB-07844C90-24SPI-1901
Input Voltage DC 24V
Dimensions (W x H) 0.39 x 0.106” (10 × 2.7 mm)
Power (RGB + 3000K full on) 6.1 W/ft (20 W/m)
Light Output Red: 40 lm/ft (130 lm/m)
Green: 166 lm/ft (545 lm/m)
Blue: 30 lm/ft (100 lm/m)
White: 133 lm/f (435 lm/m)
LED Qty ~237/ft (784/m)
Protocol SPI (WS2814)
Pixel ~4.3 pixels / ft (14 pixels / m)
Min. Cut Length 2.81” (71.42 mm)
Max. Cascade Length 16.4 ft (5 m)
PCB Material Double-sided FPC
Lead Wire (20 AWG leads, both ends) 5.9” (150 mm)
Mounting 3M Tape
Energy Efficiency Index (EEI) 3000K: Class G (Module size 71.42 mm)
IP Rating IP20

RGBW-COB-LED-Tape Light
