RGBCW COB LED Tape Light - BPC
RGBCW COB LED Tape Light - BPC - Image 2

RGBCW COB LED Tape Light – BPC

IP65 10mm-wide COB flexible LED strip with 840 chips, operating at DC 24V. Full full RGB + Cold White + Warm White output.

UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.

A 15mm COB flexible LED strip featuring 840 chips and DC 24V operation for smooth, uninterrupted illumination. RGBCW output combines saturated colour control with tunable white light for dynamic architectural, retail, and hospitality applications. The dense chip layout minimizes visible dotting while delivering consistent illumination and flexible integration across long runs and custom installations.

  • SPI Control

    SPI-driven protocol means fast, flicker-free lighting at your command.

  • DC 24V Voltage

    Supports standard cascading up to 5 meters per run with consistent illumination throughout.

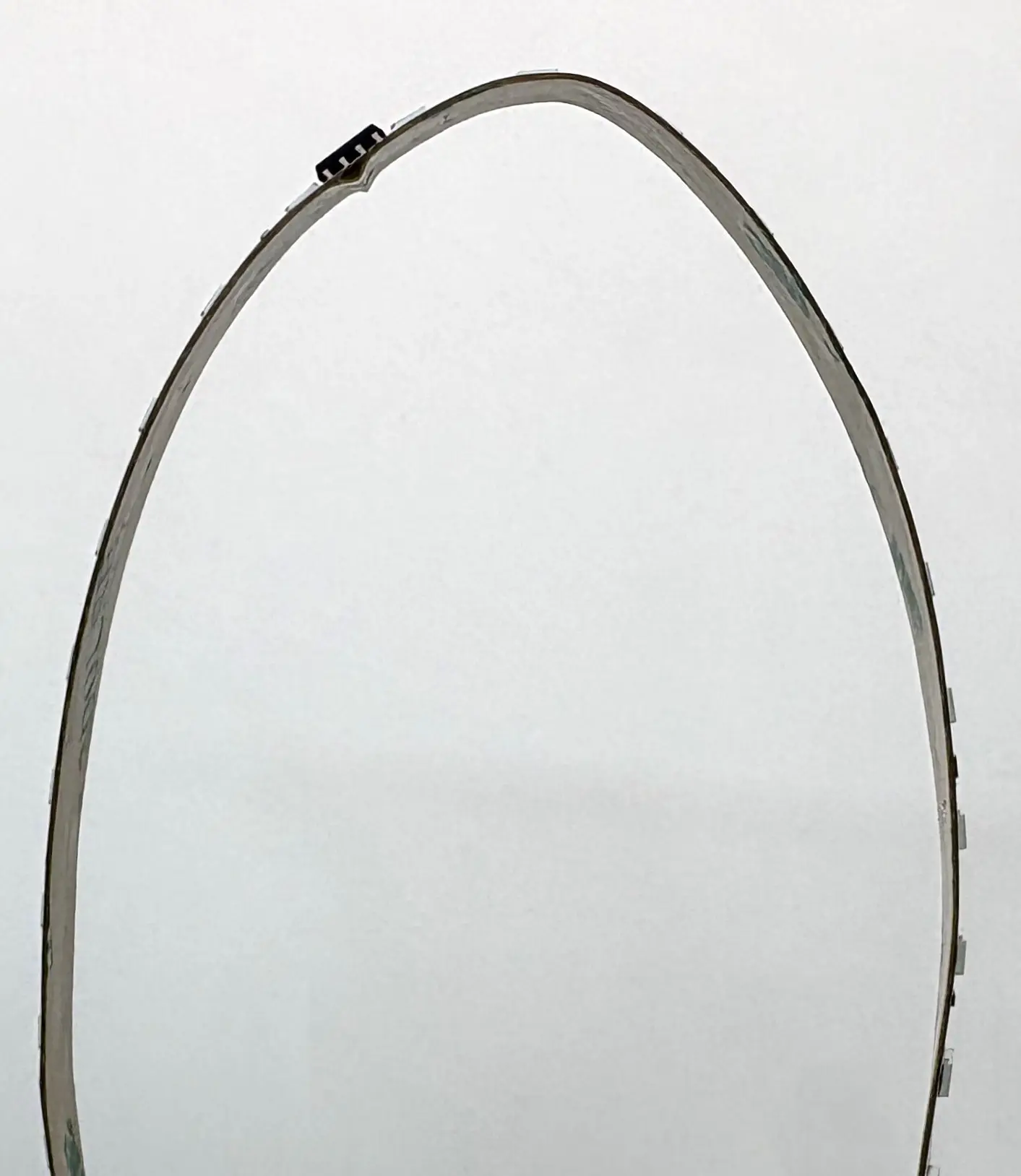

  • High-Thermal Flexible PCB

    High-thermal-conductivity flexible circuit board design allows for easy bending and installation

  • 180° Beam Angle

    LED chips mounted directly on FPC achieve a full 180° emission angle, maximizing light distribution and surface wash efficiency.

Specifications

Model COB-08405C90-24SPI-2601 (IP20)
COB-08405C90-24SPI-2611 (IP65)
Input Voltage DC 24V
Dimensions (W x H) P20: 0.59 x 0.13” (15 × 3.3 mm)
IP65: 0.67 x 0.16“ (17 × 4 mm)
Power (RGBCW all on) 0.66 W/ft (26 W/m)
Light Output Red: 27 lm/ft (90 lm/m)
Green: 105 lm/ft (345 lm/m)
Blue: 21 lm/ft (70 lm/m)
WW (3000K): 82 lm/ft (270 lm/m)
CW (6500K): 90 lm/ft (295 lm/m)
LED Qty ~256 / ft (840 / m)
Protocol SPI (WS2805)
Pixel ~4.3 pixels / ft (14 pixels / m)
Min. Cut Length 2.81” (71.42 mm)
Max. Cascade Length 16.4 ft (5 m)
PCB Material Double-sided FPC
Lead Wire (20 AWG leads, both ends) 5.9” (150 mm)
Mounting 3M Tape
Energy Efficiency Index (EEI) 3000K, 6500K: Class G or Exempt (Module size 71.42mm)
IP Rating IP20

RGBCW-cob-tape-light-drawing
