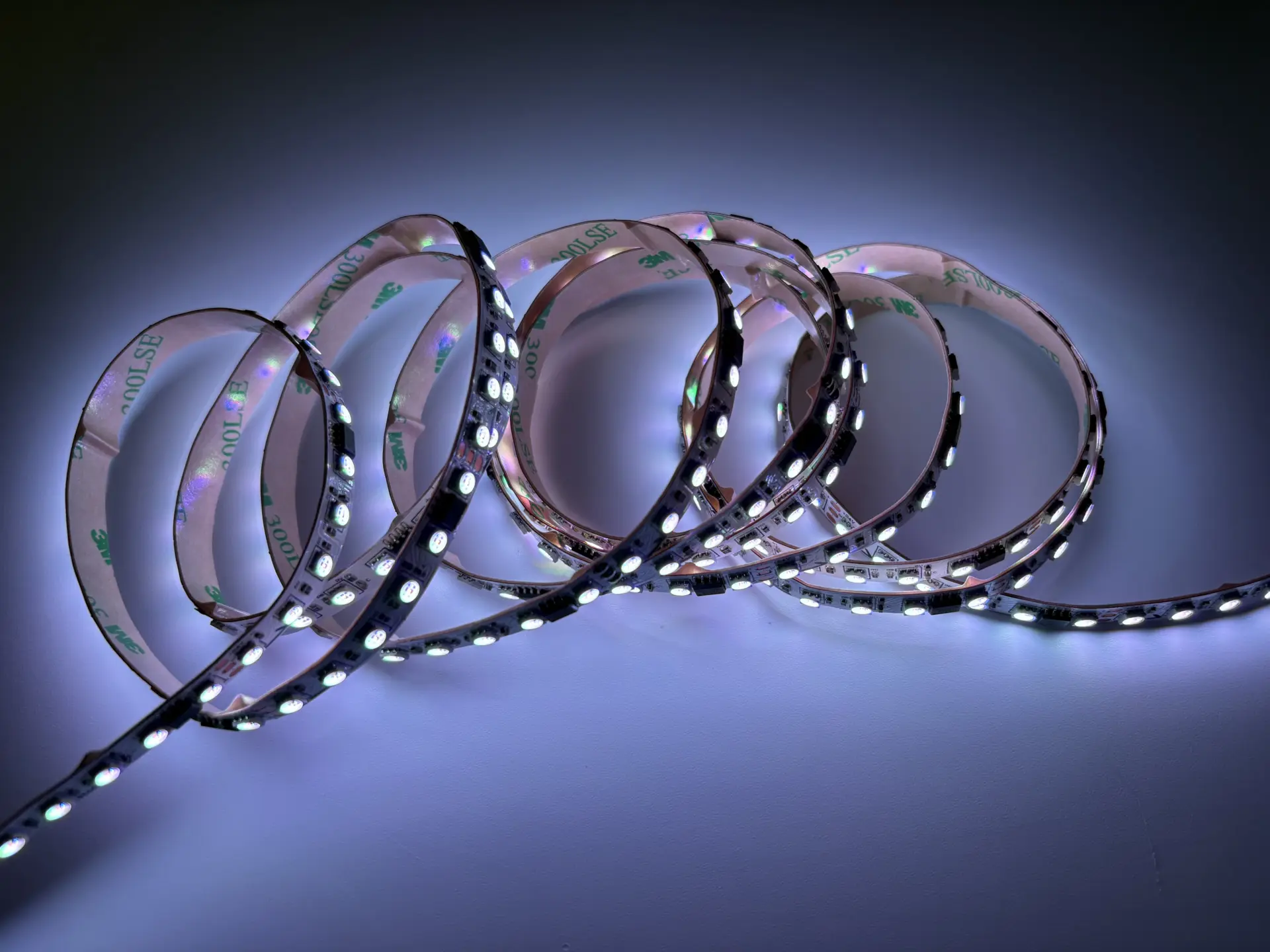

SMD SPI Tape Light: RGB - Image 3

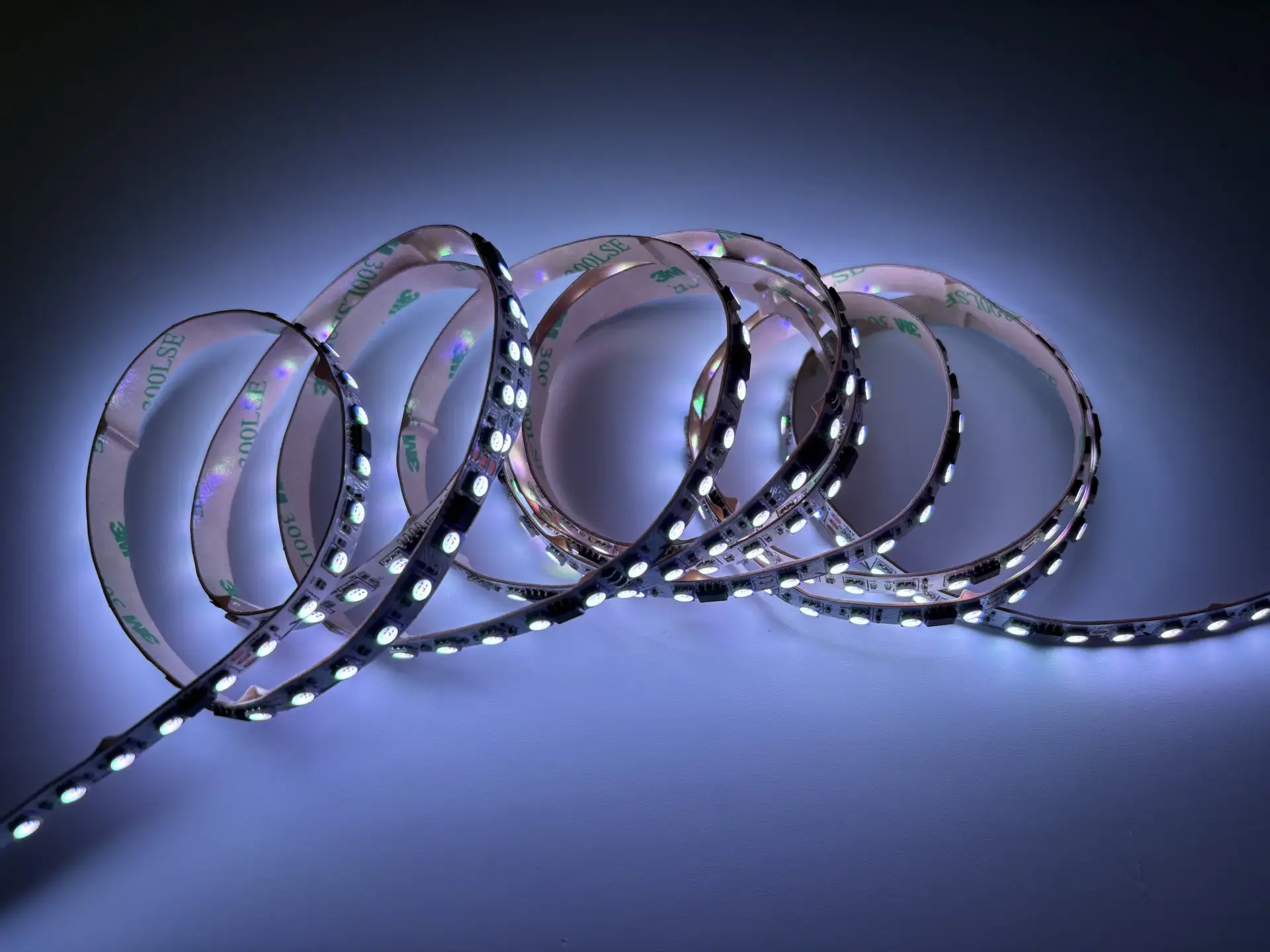

SMD SPI Tape Light: RGB - Image 4

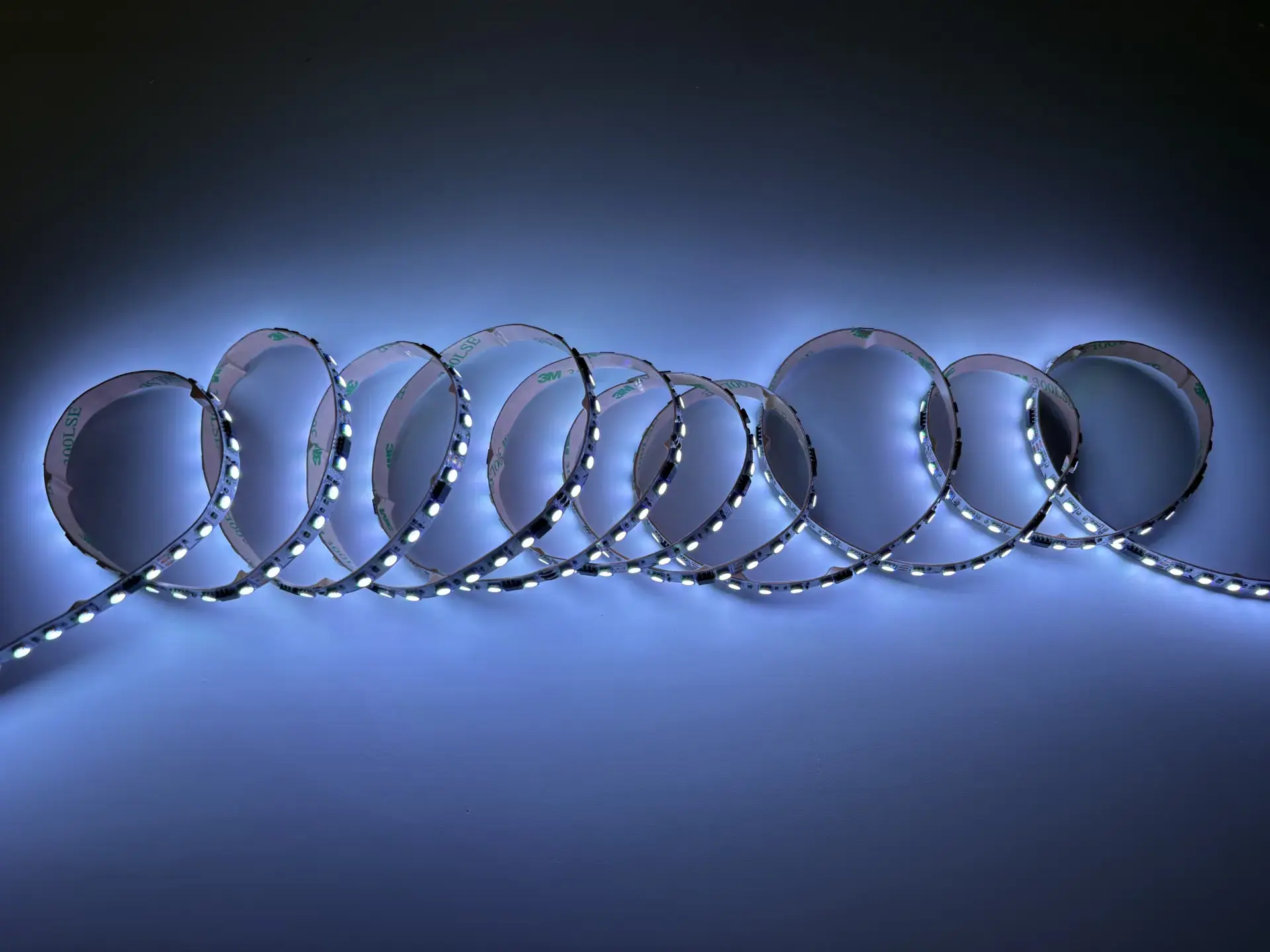

SMD SPI Tape Light: RGB - Image 5

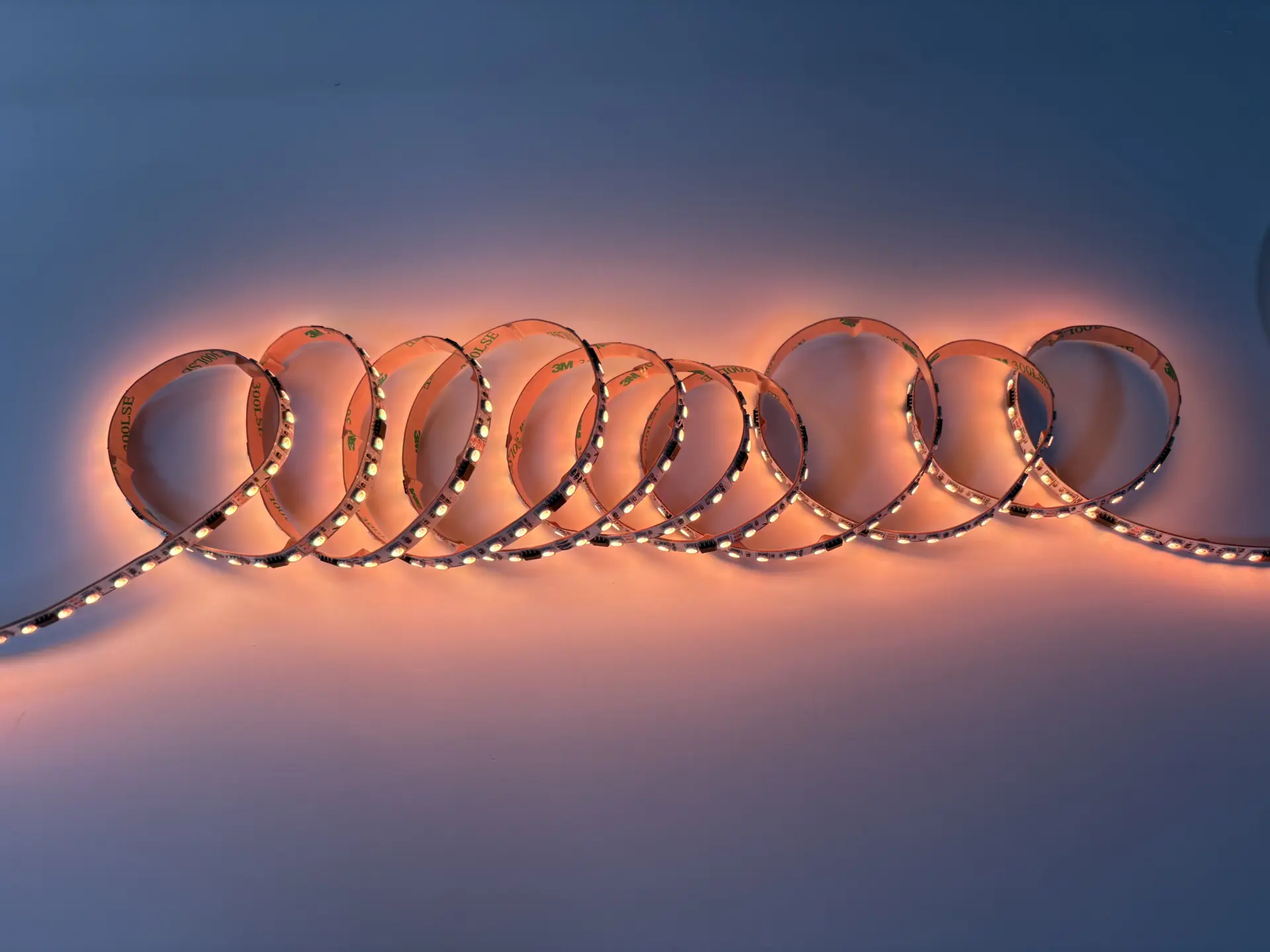

SMD SPI Tape Light: RGB - Image 6

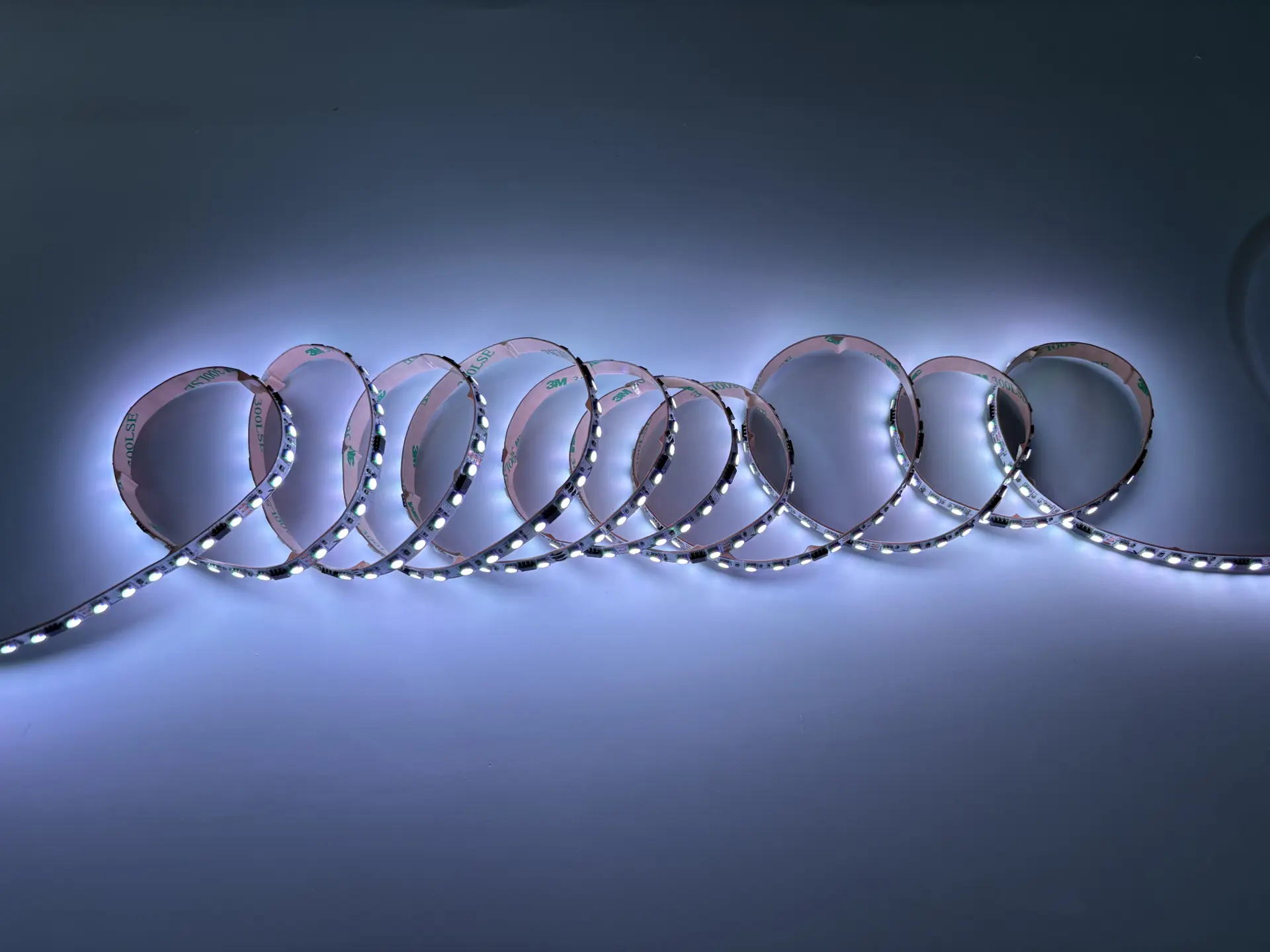

SMD SPI Tape Light: RGB - Image 7

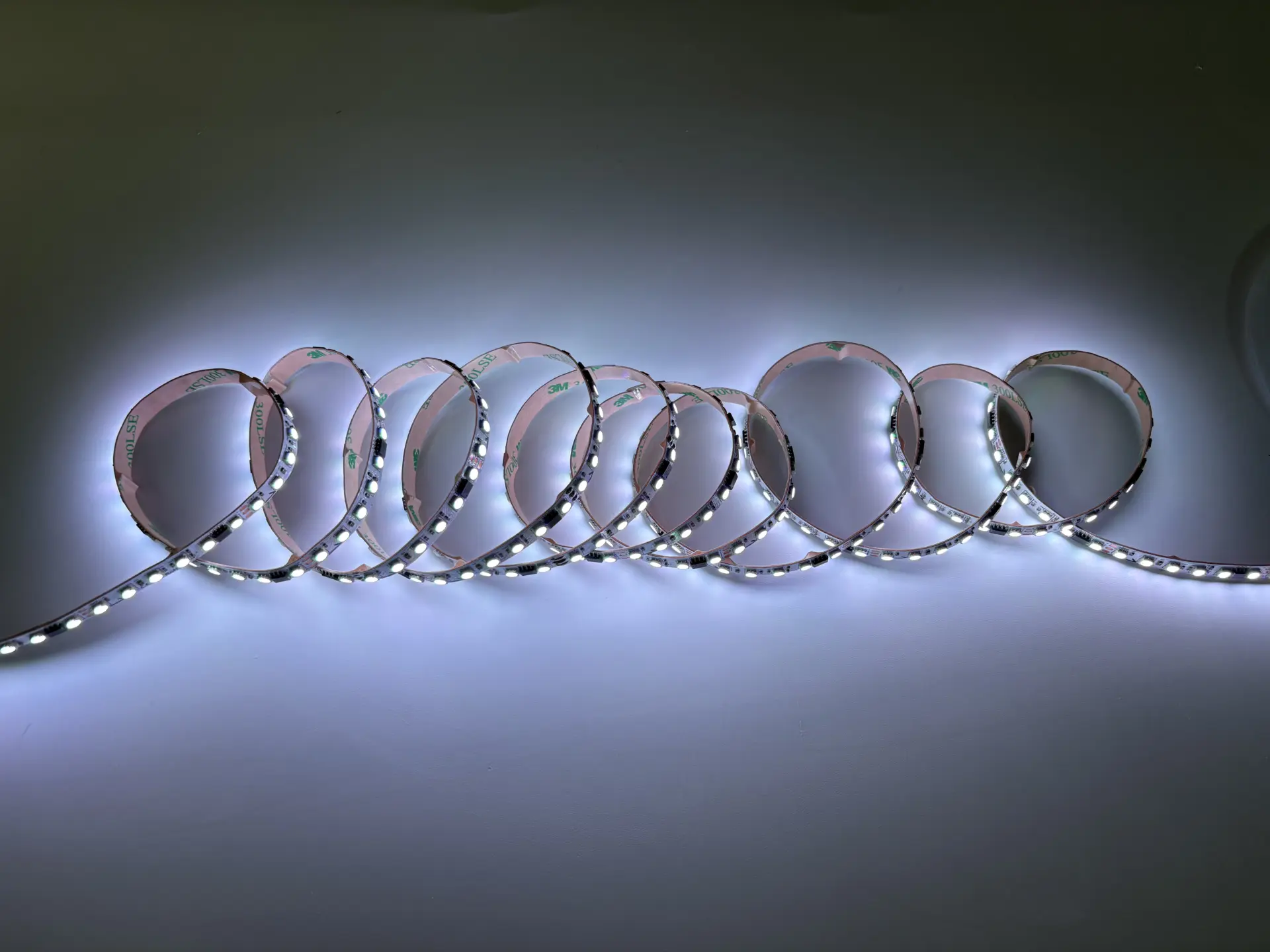

SMD SPI Tape Light: RGB - Image 8

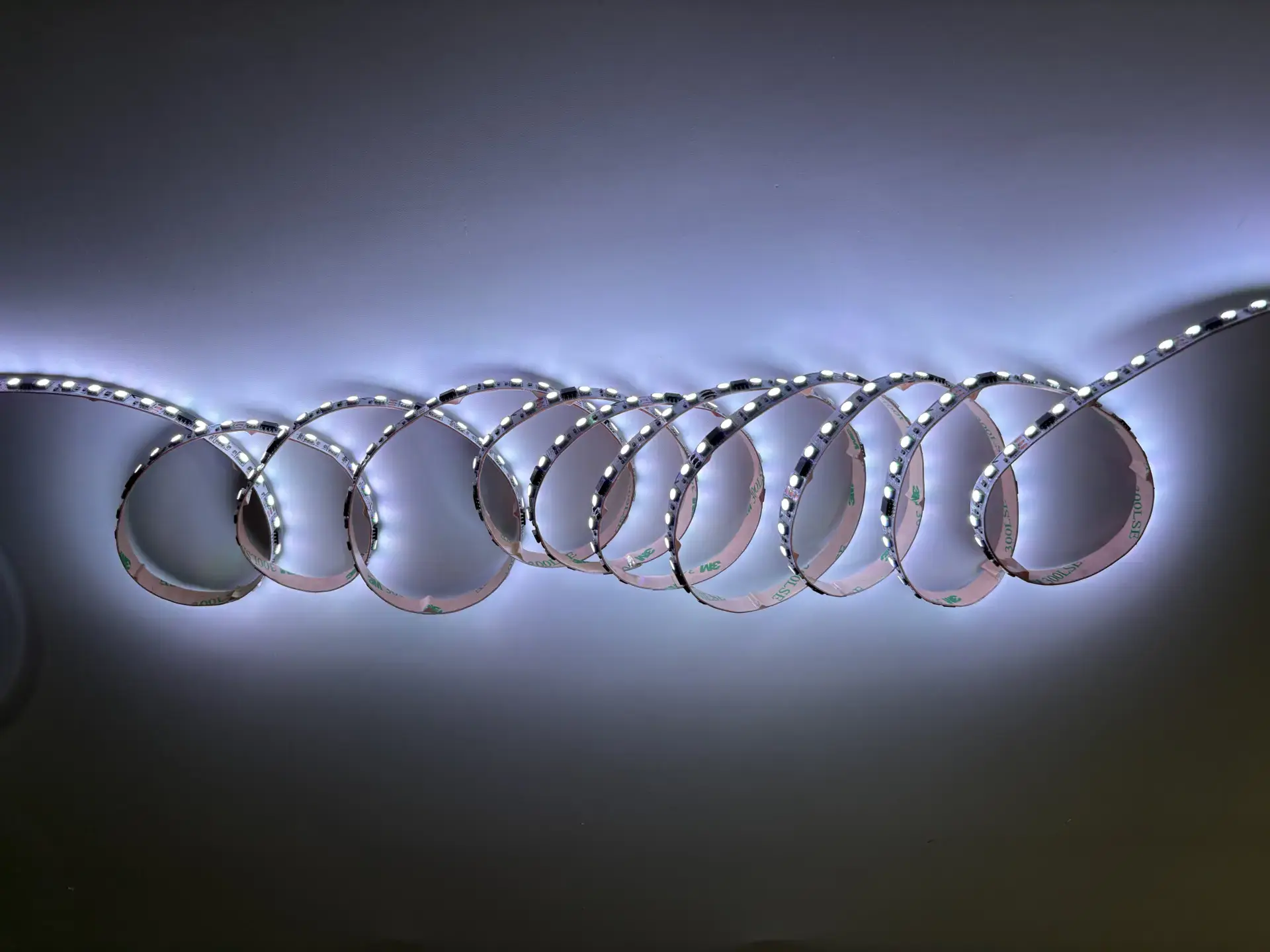

SMD SPI Tape Light: RGB - Image 9

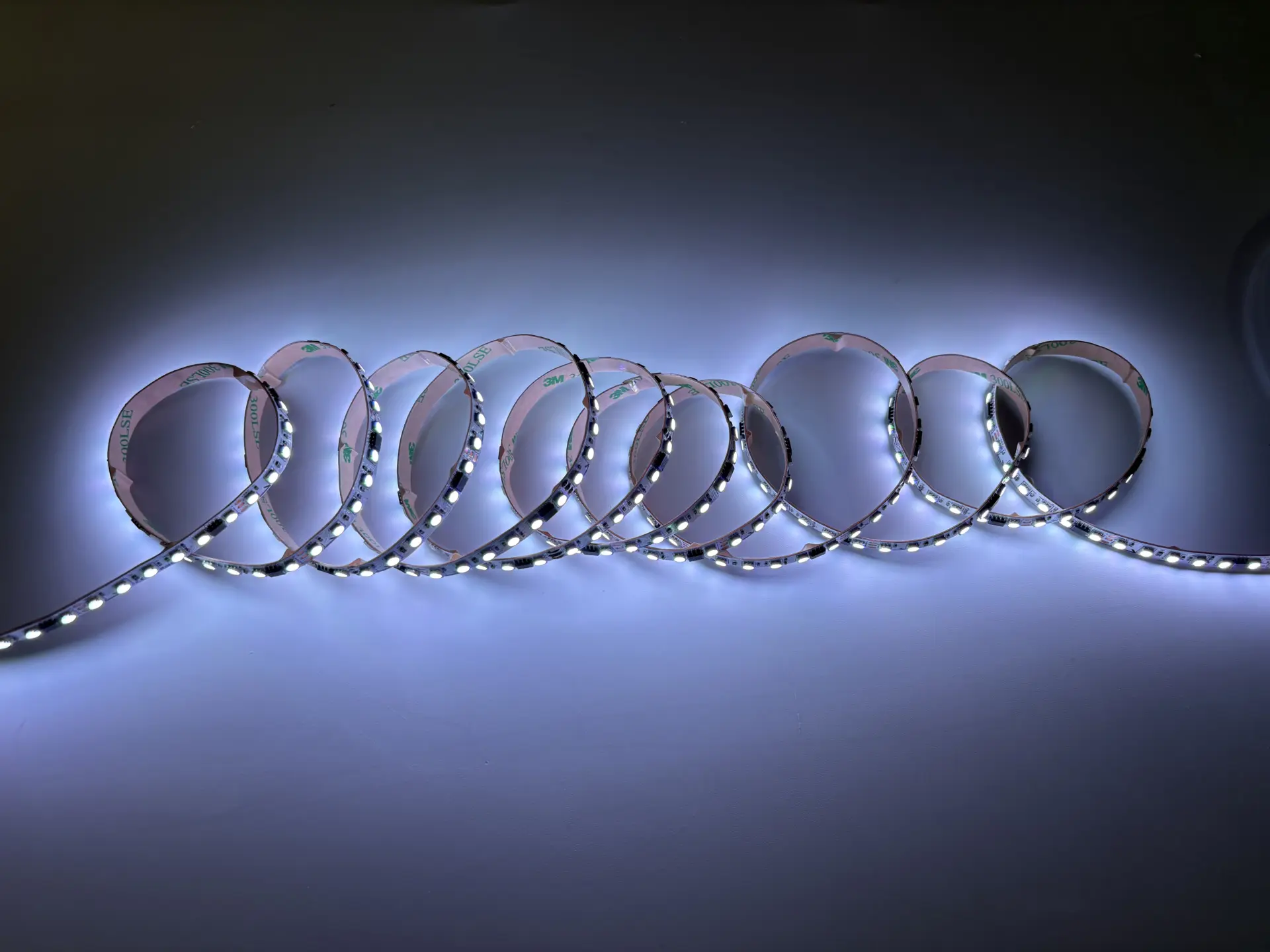

SMD SPI Tape Light: RGB - Image 10

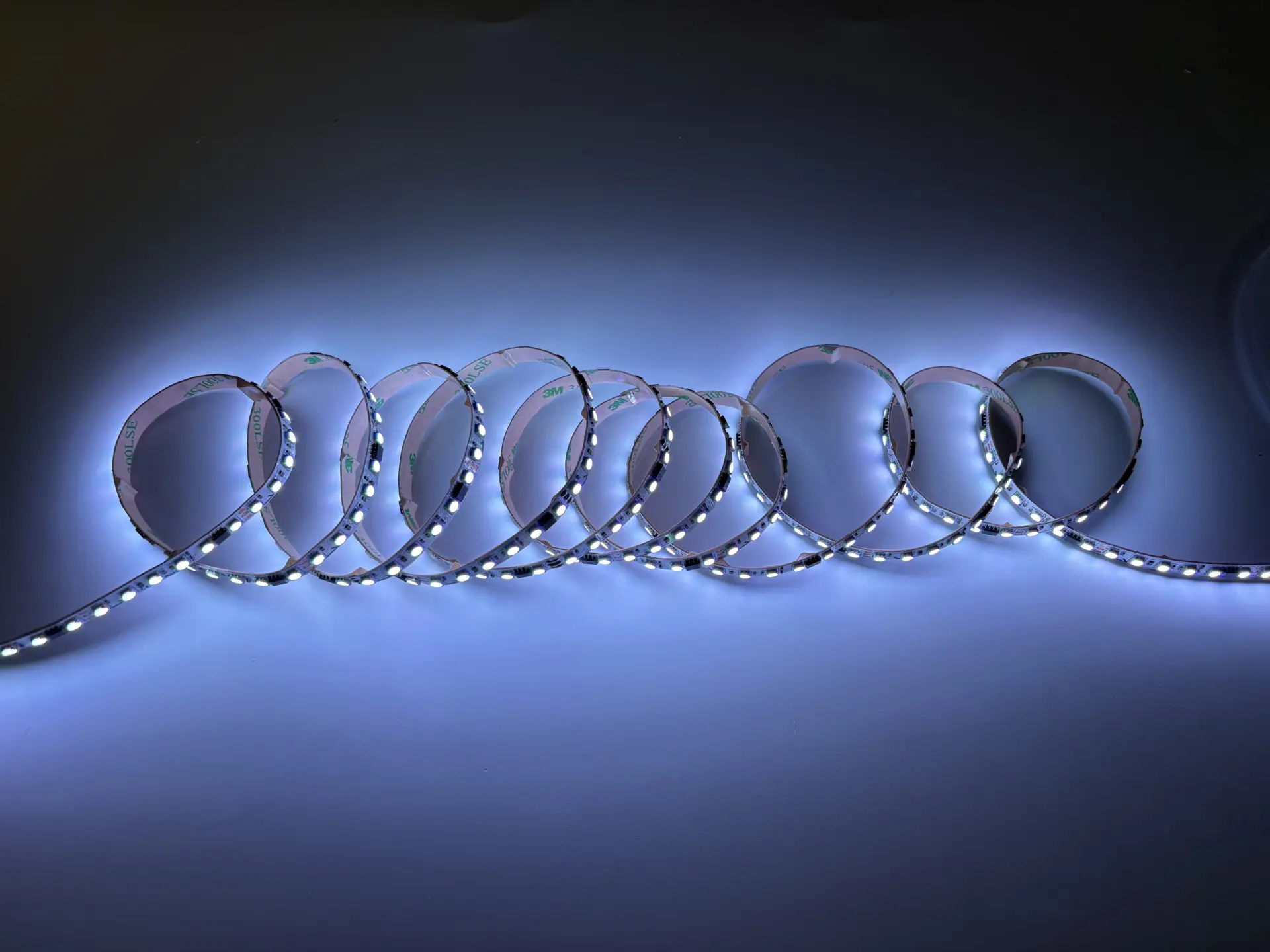

SMD SPI Tape Light: RGB - Image 11

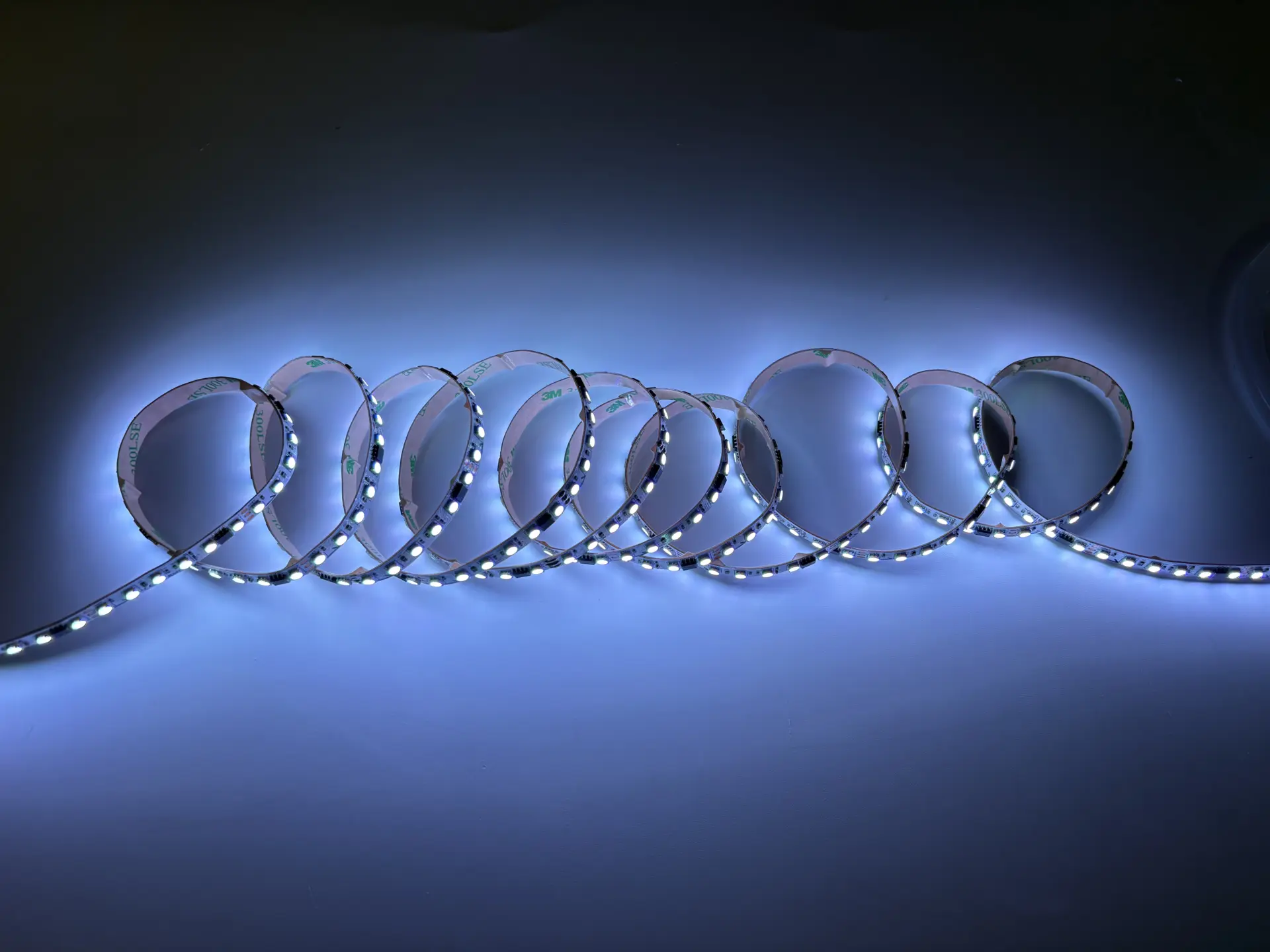

SMD SPI Tape Light: RGB - Image 12

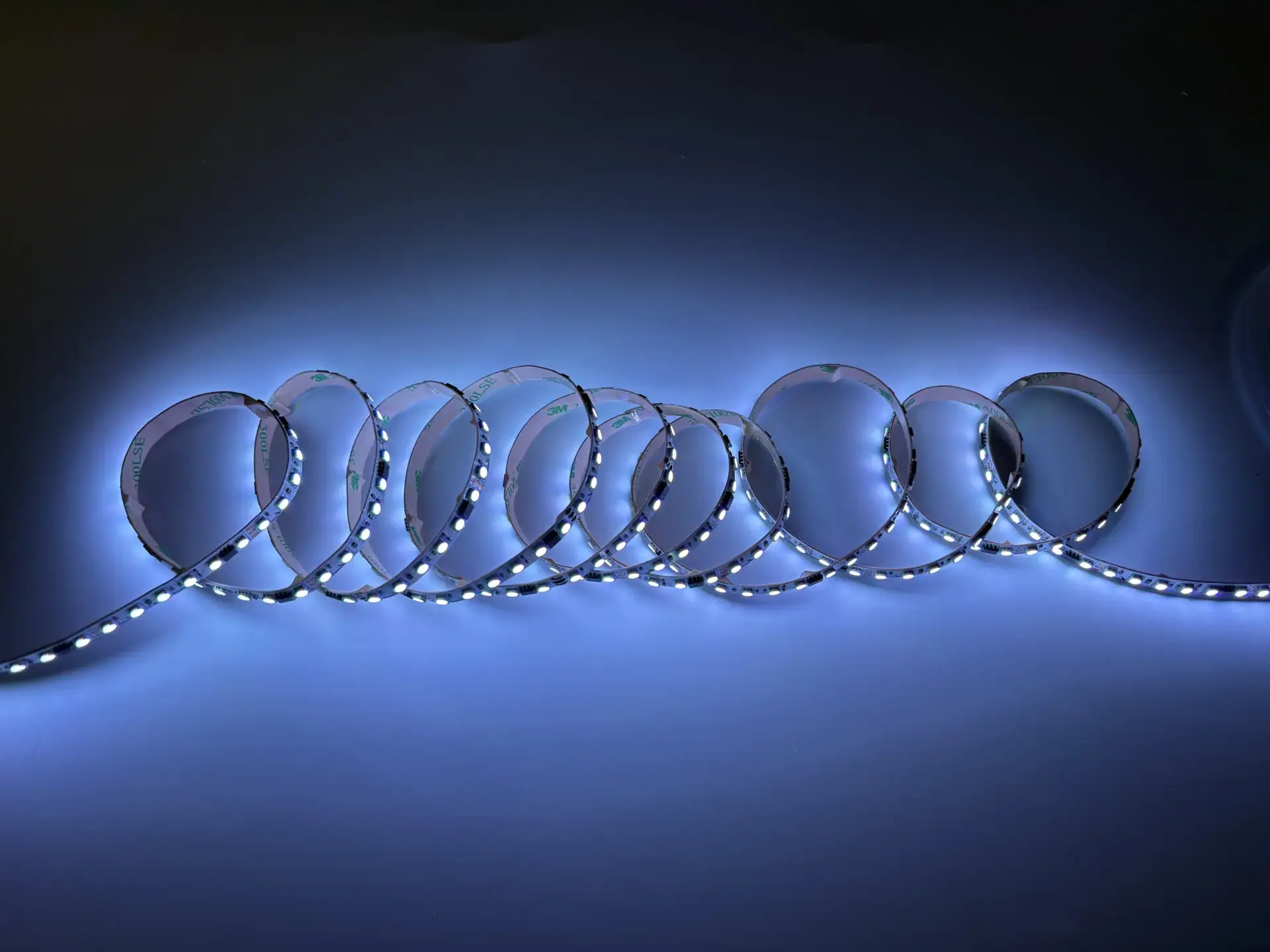

SMD SPI Tape Light: RGB - Image 13

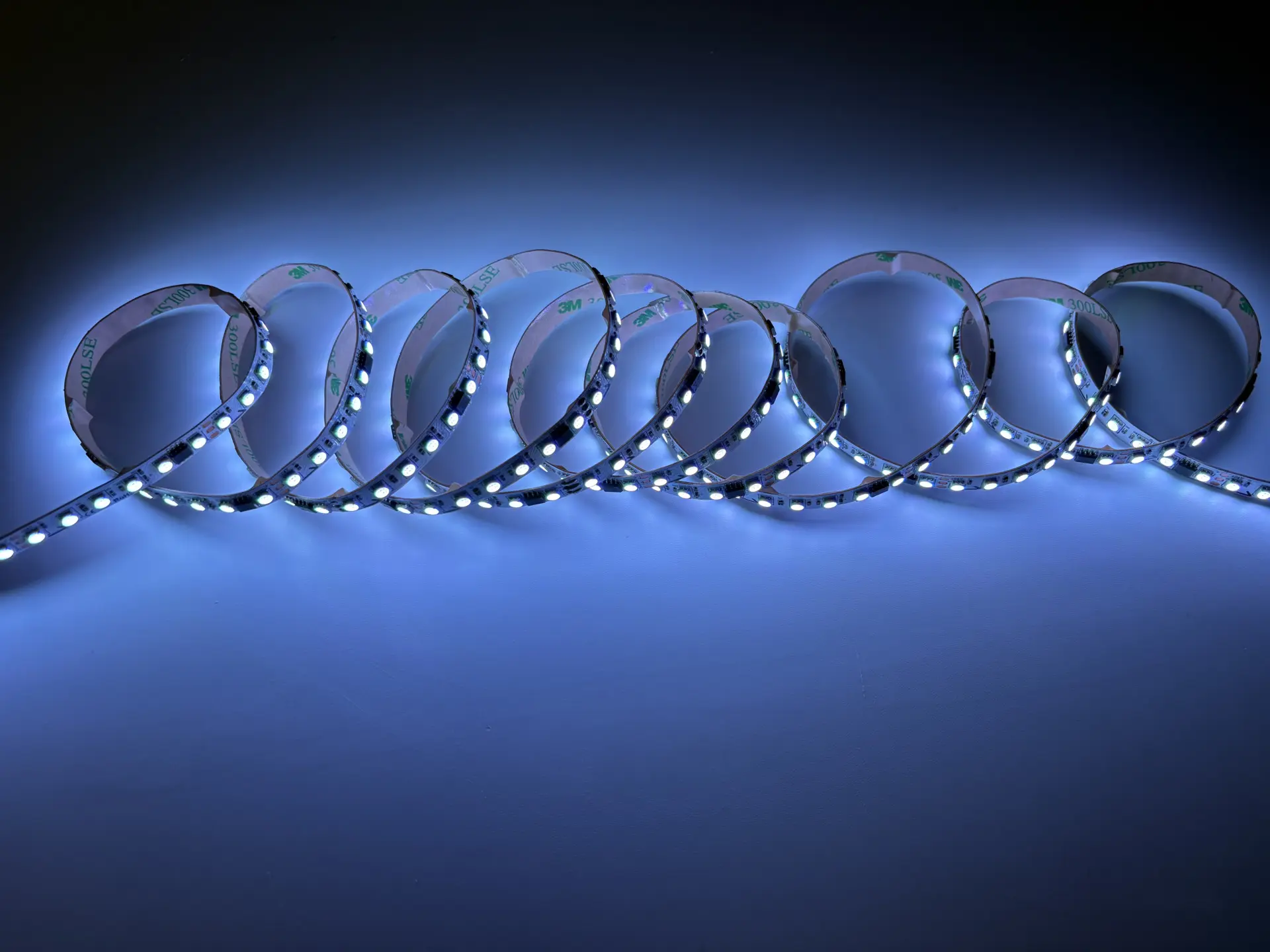

SMD SPI Tape Light: RGB - Image 14

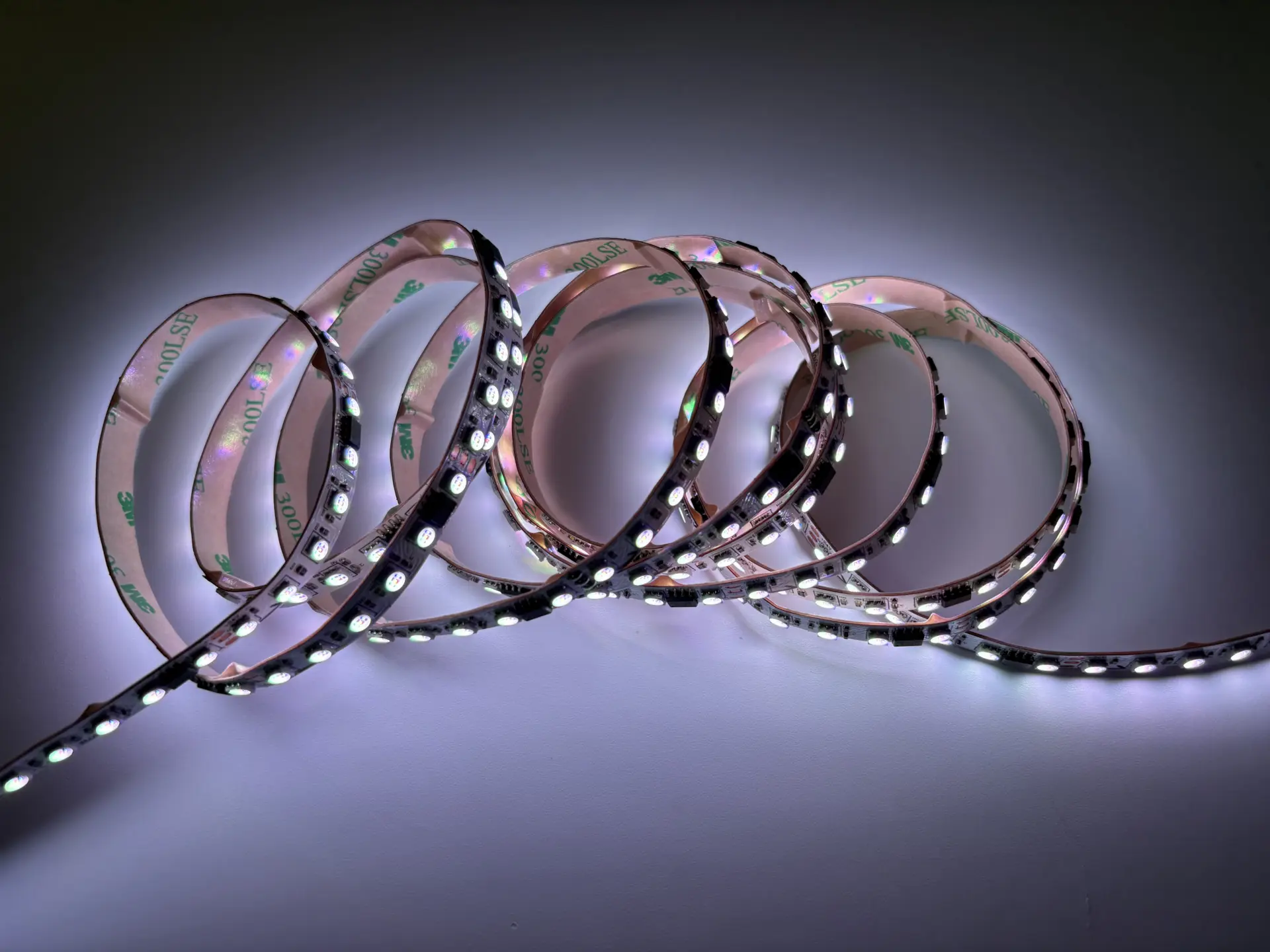

SMD SPI Tape Light: RGB - Image 15

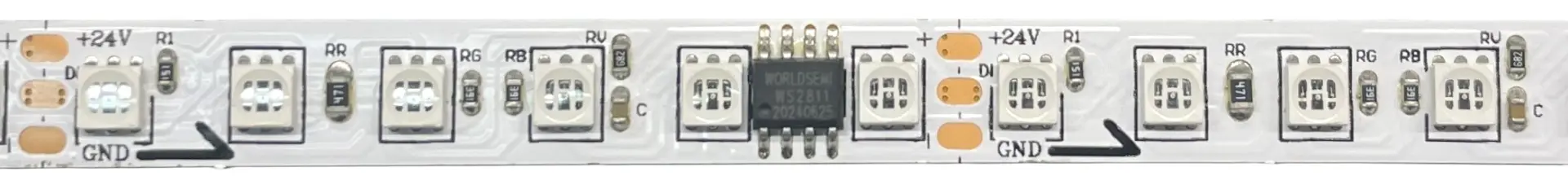

SMD SPI Tape Light: RGB - Image 16

SMD SPI Tape Light: RGB

SPI-Controlled RGB SMD LED Tape

UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.

An ultra-slim RGB SMD tape light delivering vibrant, dynamic colour for retail and display environments.

Designed for flexible integration into shelving, signage, and architectural features, it can be cut to size for precise installation across a wide range of applications.

SPI-controlled for smooth, addressable colour and effects across the full strip.

  • SPI Control

    SPI-driven protocol means fast, flicker-free lighting at your command.

  • 24V Voltage

    Supports standard cascading up to 5 meters per run with consistent illumination throughout.

  • Flexible FPC Design

    High-thermal-conductivity flexible circuit board, allowing free bending for easy routing and installation in complex profiles.

  • IP20 & IP65 available

    IP20 for interiors, IP65 for outdoors. Light with confidence in any environment

Specifications

Model SMD-0108TW80-12SPI-09XX
Input Voltage DC 24V
Dimensions (W x H) IP20: 0.315 x 0.09” (8 × 2.3 mm) IP65: 0.39 x 0.157” (10 × 4 mm)
Power 6.36 W/ft (21 W / m)
Light Output Red: 21 lm/ft (70 lm/m) Green: 82 lm/ft (270 lm/m) Blue: 21 lm/ft (70 lm/m)
LED Qty ~36 / ft (120 / m)
Pixel ~6.1 pixels / ft (20 pixels / m)
Protocol SPI (WS2811)
Min. Cut Length 1.97 inch (50 mm)
Max. Cascade Length 16.4 ft (5 m)
PCB Material Double-sided FPC
Lead Wire (20 AWG leads, both ends) 5.9” (150 mm)
Mounting 3M Tape
Energy Efficiency Index (EEI) Exempt
