Tuneable White COB LED Tape Light
A 10mm-wide single color COB tape light with 576-chips per meter operating at DC 24V.
UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.
Ideal for retail and architectural lighting applications where consistent light quality and flexible installation are essential.
SPI Control
SPI-driven protocol means fast, flicker-free lighting at your command.
DC 24V Voltage
Supports standard cascading up to 5 meters per run with consistent illumination throughout.

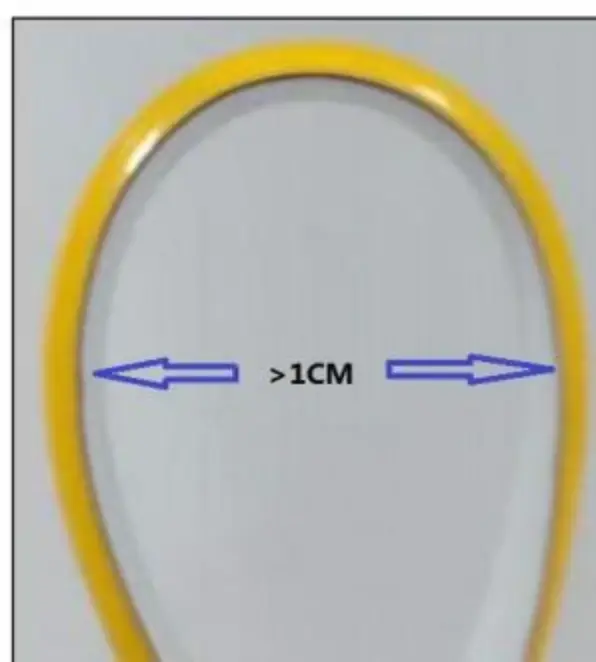

Flexible FPC Design
High-thermal-conductivity flexible circuit board, allowing free bending for easy routing and installation in complex profiles.
IP20 & IP65 available
IP20 for interiors, IP65 for outdoors. Light with confidence in any environment
High-Tack Thermal Adhesive
Pre-applied, high-adhesion, thermally conductive
double-sided tape on the back ensures fast and durable installation on any clean surface.
Specifications
| Model | COB-0576TW90-24-301 |
| Input Voltage | DC 24V |

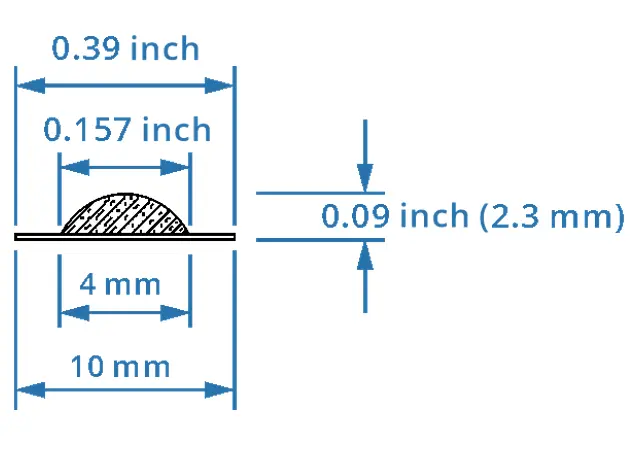

| Dimensions (W x H) | 0.39 x 0.09 inch (10 × 2.3 mm) |
| Power Per Color | 3.26 W/ft (10.7 W/m) |
| Light Output | 2700K: 206 lm/ft (675 lm/m) 6500K: 263 lm/ft (864 lm/m) |
| LED Qty | ~189 / ft (576 /m) |
| Protocol | SPI (WS2811) |
| Pixel | ~7.32 pixels / ft (24 pixels / m) |
| CRI (Ra) | >90 |
| Min. Cut Length | 1.64 inch (41.67 mm) |
| Max. Cascade Length | 16.4 ft (5 m) |
| PCB Material | Double-sided FPC |
| Lead Wire (20 AWG leads, both ends) | 5.9” (150 mm) |
| Mounting | 3M Tape |
| Energy Efficiency Index (EEI) | Class G (Module size 83.33mm) |
| Color Temperature | 2700K, 6500K |
| IP Rating | IP20 |
