RGBCW COB LED Tape Light
RGBCW COB LED Tape Light - Image 2
RGBCW COB LED Tape Light - Image 3

RGBCW COB LED Tape Light

RGBCW COB LED Tape

UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.

Smooth, seamless illumination with full RGB plus warm and cool white control. Designed to create a continuous, dot-free light output, it produces even, consistent illumination — ideal for coves, displays, and architectural features where light quality defines the space.

Perfect for applications that demand colour flexibility and a clean visual finish without visible hotspots.

  • SPI Control

    SPI-driven protocol means fast, flicker-free lighting at your command.

  • DC 24V Voltage

    Supports standard cascading up to 5 meters per run with consistent illumination throughout.

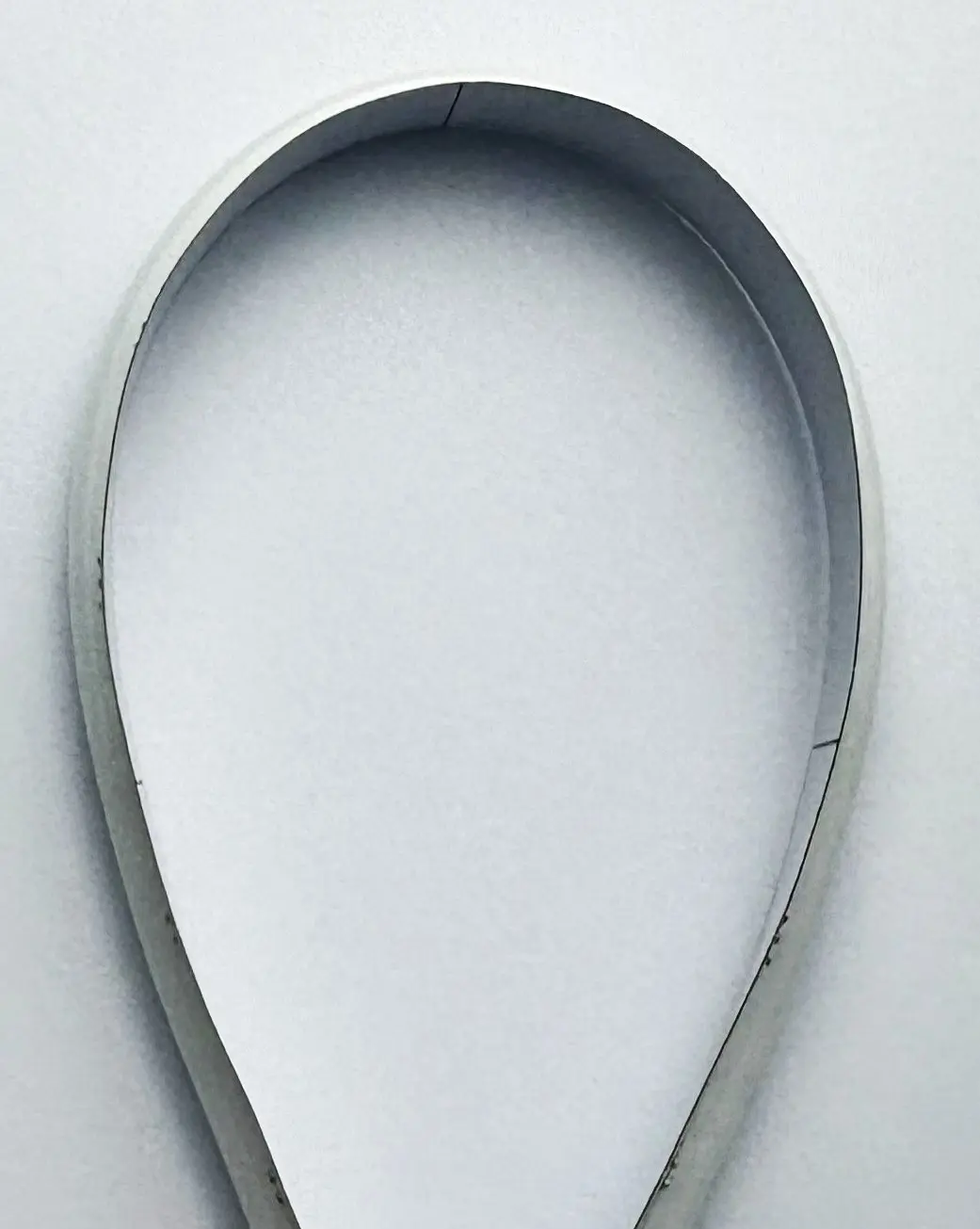

  • Flexible FPC Design

    High-thermal-conductivity flexible circuit board, allowing free bending for easy routing and installation in complex profiles.

  • IP20 & IP65 available

    IP20 for interiors, IP65 for outdoors. Light with confidence in any environment

  • 3M 300LSE Backing

    High-adhesion thermal double-sided tape pre-applied to the rear — simply peel and press for fast, secure, long-lasting installation on most surfaces.

  • 180° Beam Angle

    LED chips mounted directly on FPC achieve a full 180° emission angle, maximizing light distribution and surface wash efficiency.

Specifications

Model COB-08405C90-24SPI-2302 (IP65)
Input Voltage DC 24V

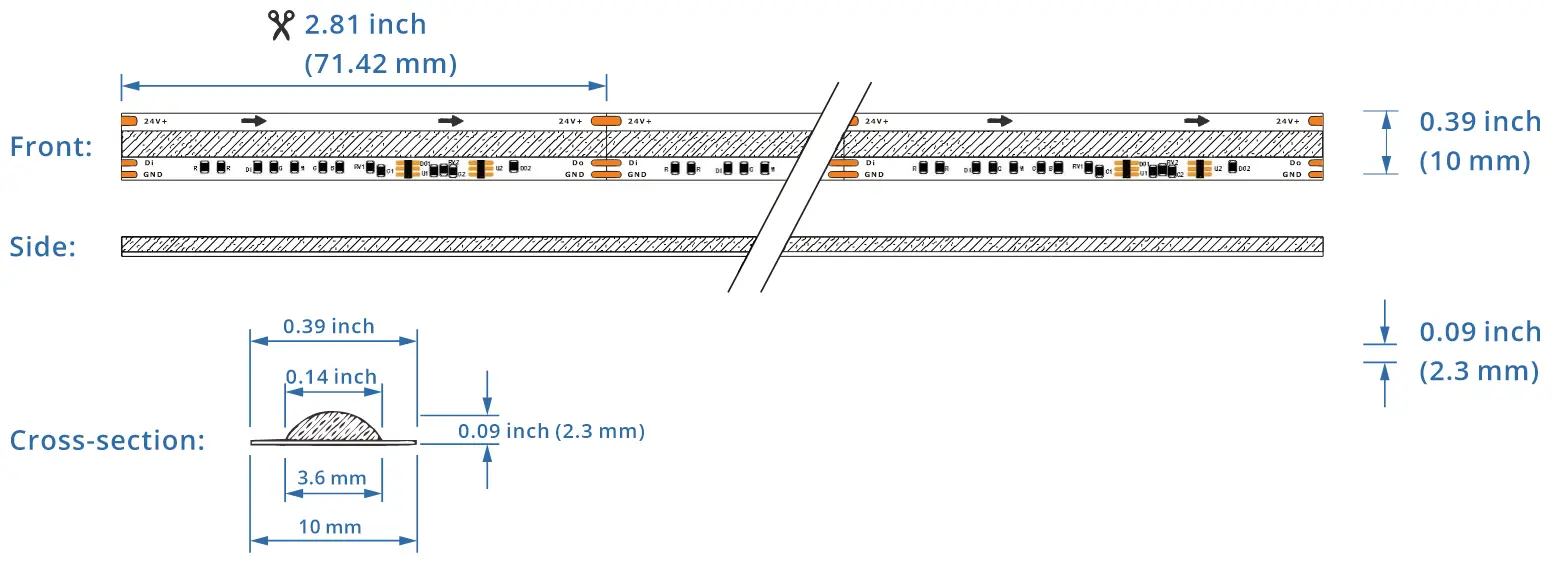

Dimensions (W x H) 0.39 x 0.09” (10 × 2.3 mm)
Power (RGBCW all on) 7 W/ft (23 W/m)
Light Output Red: 35 lm/ft (115 lm/m)
Green: 137 lm/ft (450 lm/m)
Blue: 27 lm/ft (90 lm/m)
3000K: 117 lm/f (385 lm/m)
6500K: 119 lm/f (390 lm/m)
LED Qty ~256 / ft (840 / m)
Protocol SPI (JD36703A)
Pixel ~4.3 pixels / ft (14 pixels / m)
Min. Cut Length 2.81” (71.42 mm)
Max. Cascade Length 16.4 ft (5 m)
PCB Material Double-sided FPC
Lead Wire (20 AWG leads, both ends) 5.9” (150 mm)
Mounting 3M Tape
Energy Efficiency Index (EEI) 3000K: Class G (Module size 71.42 mm)
IP Rating IP20
