SPI-Controlled Single-Colour SMD LED Tape

UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.

Clean, consistent illumination for retail and architectural applications. Cuttable and adaptable, it can be configured to suit a wide range of lengths and layouts, making it ideal for flexible installation across shelving, displays, and interior features.

Built on a high-thermal-conductivity flexible PCB, it offers reliable performance and easy integration, even in tighter or more complex spaces. SPI-controlled for consistent, reliable lighting behaviour across installations.

  • SPI Control

    SPI-driven protocol means fast, flicker-free lighting at your command.

  • DC24V Safe Voltage

    SPI-driven protocol means fast, flicker-free lighting at your command.

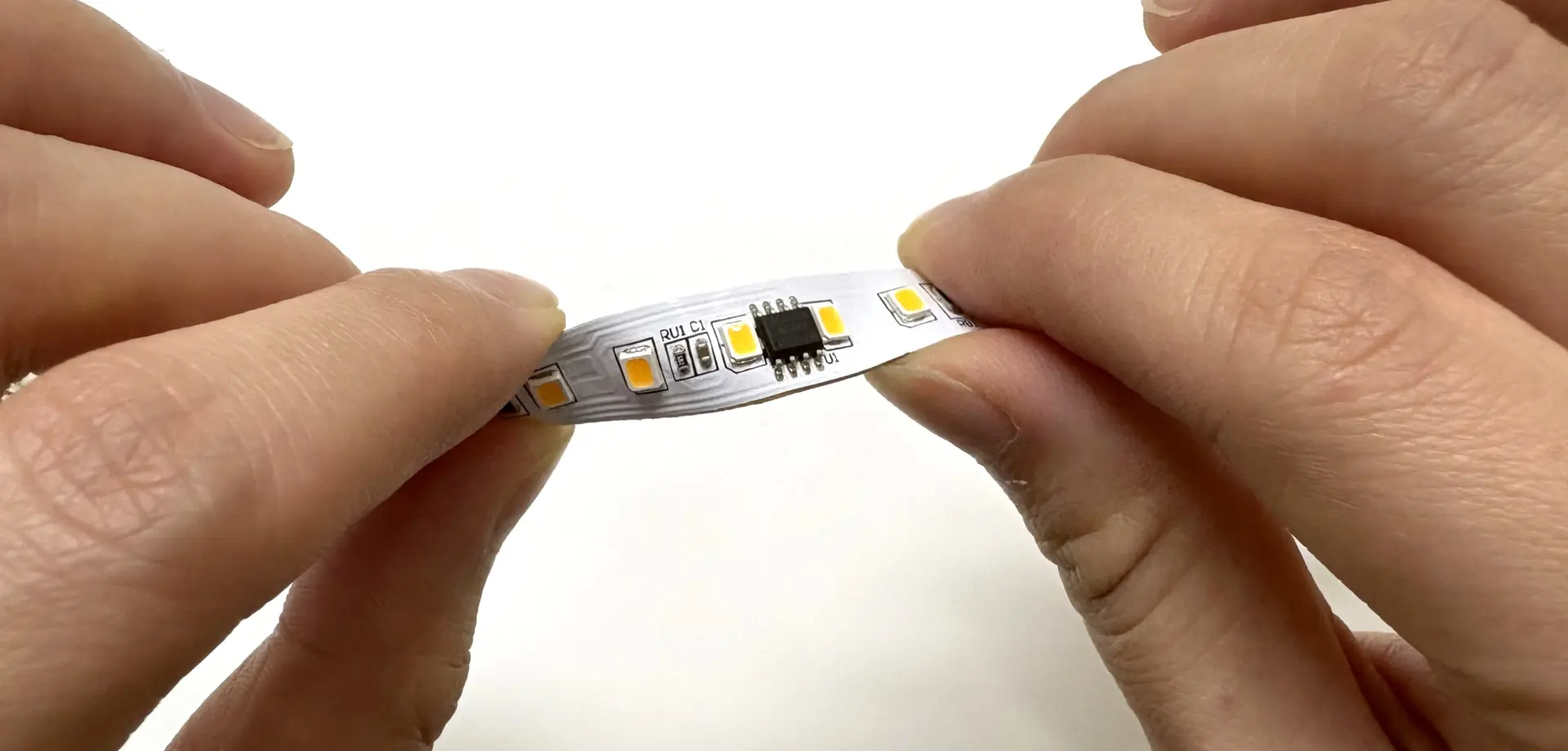

  • Flexible FPC Design

    High-thermal-conductivity flexible circuit board, allowing free bending for easy routing and installation in complex profiles.

  • Ra 80 & Ra 90 available

    Ra 80 for reliable brightness, Ra 90 for gallery-grade color — perfect for retail, residential, or display lighting.

Specifications

Model SMD-012039XX-24SPI-1001
Input Voltage DC 24V
Dimensions (W x H) 0.39 x 0.07” (10 × 1.8 mm)
Power 3.05 W/ft (10 W/m)
Light Output 2200K @Ra 80: 211 lm / ft (700 Lm / m)
3000K @Ra 90: 209 lm / ft (690 Lm / m)
LED Qty ~36 / ft (120 / m)
Protocol SPI (WS2811)
Pixel ~2.44 pixels / ft (8 pixels / m)
Color Temperature 2200K, 3000K
Min. Cut Length 1.97” (50 mm)
Max. Cascade Length 16.4 ft (5 m)
PCB Material Double-sided FPC
Lead Wire (20 AWG leads, both ends) 5.9” (150 mm)
IP Rating IP20
Mounting 3M Tape
Energy Efficiency Index (EEI) Class G (Module size 125mm)

single color smd spi- drawing
