Shelby

Aluminum shelf lighting fixture with snap-on magnetic mounting

Capture shoppers’ attention at every level. Shelby’s special lens design optimizes light distribution of the shelf deck. Especially of the bottom layer and in tilted applications.

Light Hard-to-Reach Spaces

Hassle-Free

Installation is a breeze as Shelby attaches to your retail metal shelf using its integrated magnets.

No More Shadows

We’ve all seen it—the planogram is perfect, but the bottom shelf is practically invisible. When a base deck is deeper than the shelves above it, standard lighting just can’t reach. It leaves your lowest-level inventory in a “Shadow Zone,” disconnected from the rest of your brand’s story.

Better Visibility

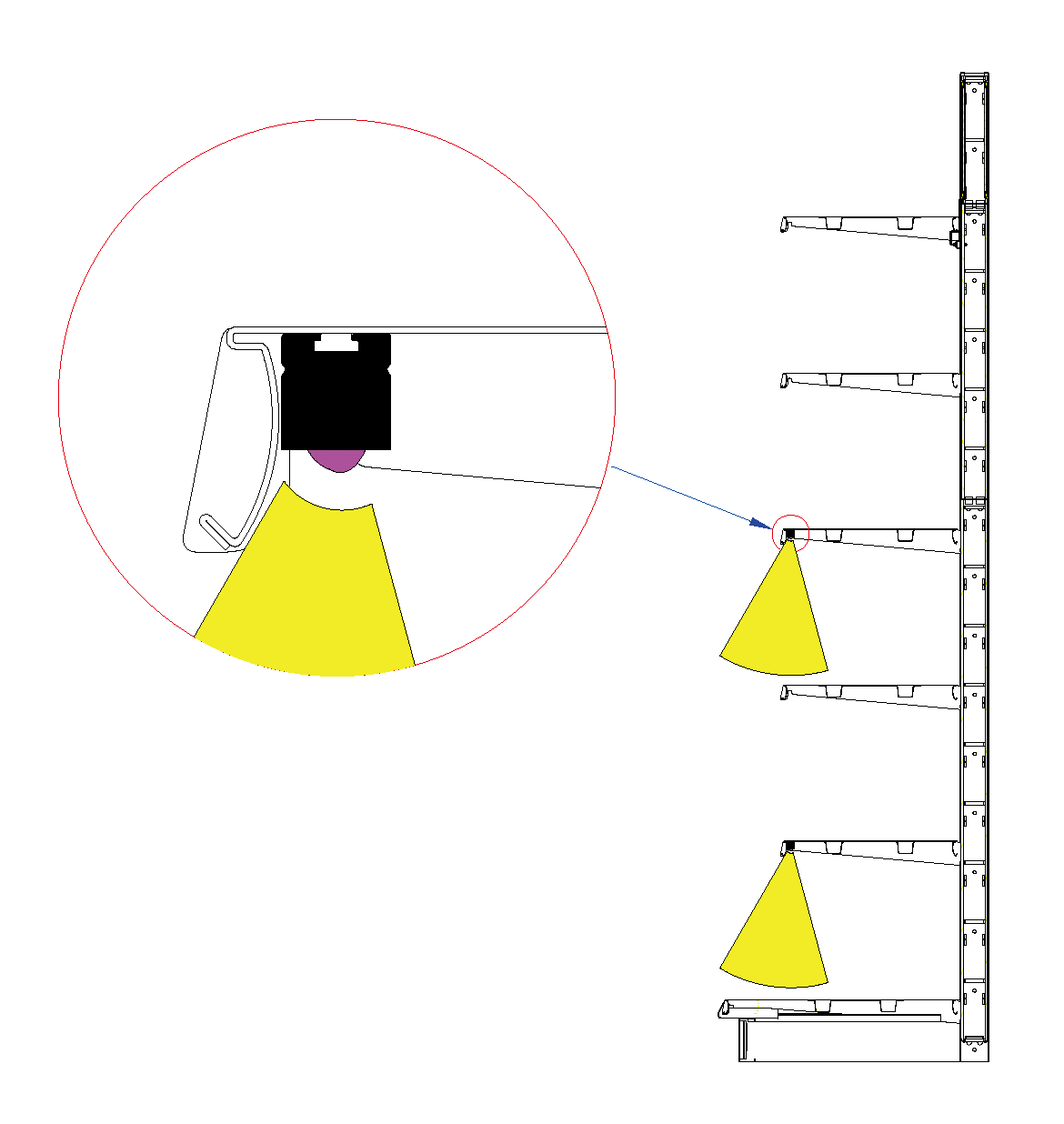

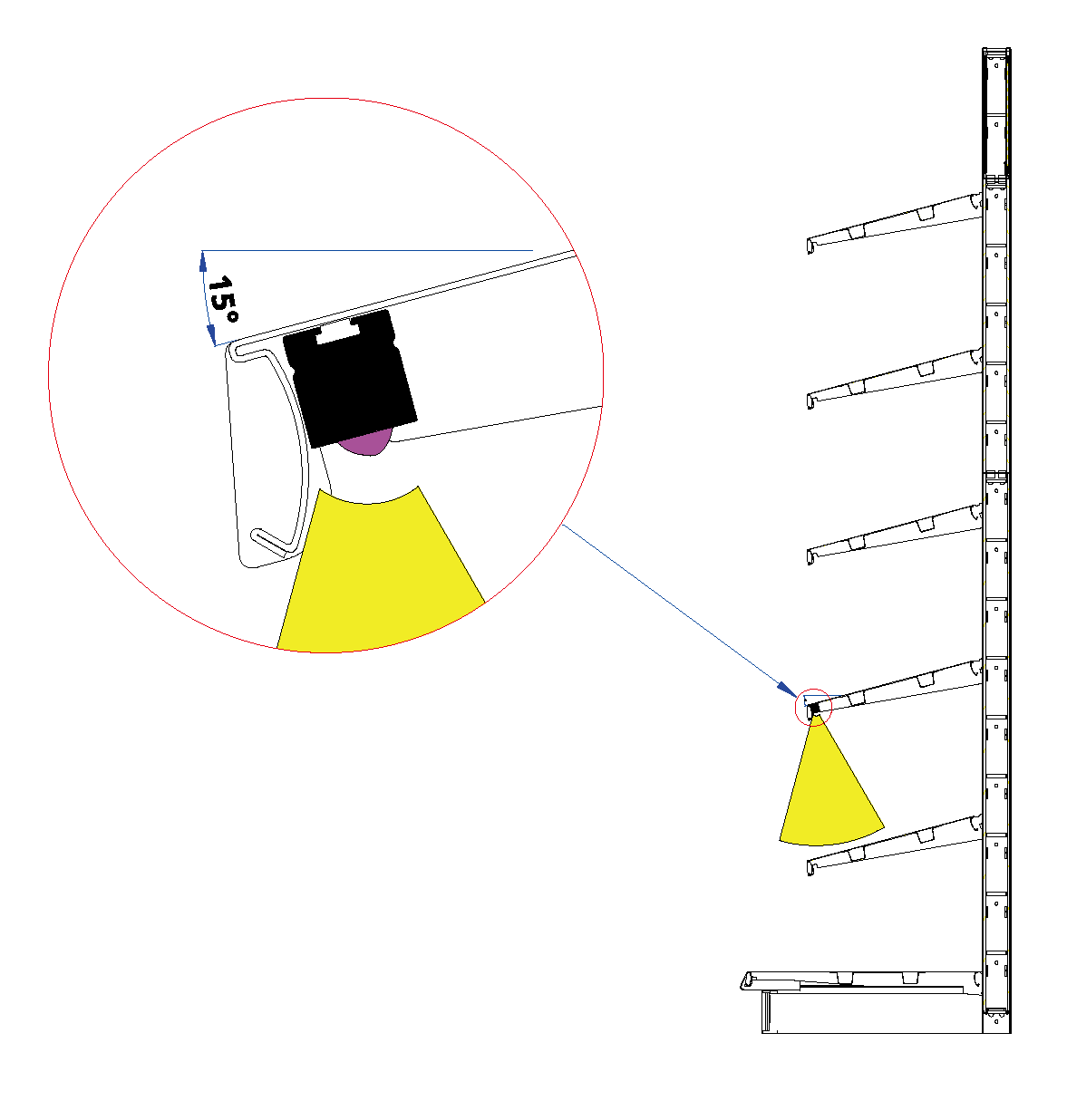

Rather than just dropping light straight down, Shelby uses an asymmetric lens to steer light forward. It’s designed specifically for deep plinths and angled shelving. The result? Total visibility from top to bottom, ensuring every product on your shelf is presented in its best light.

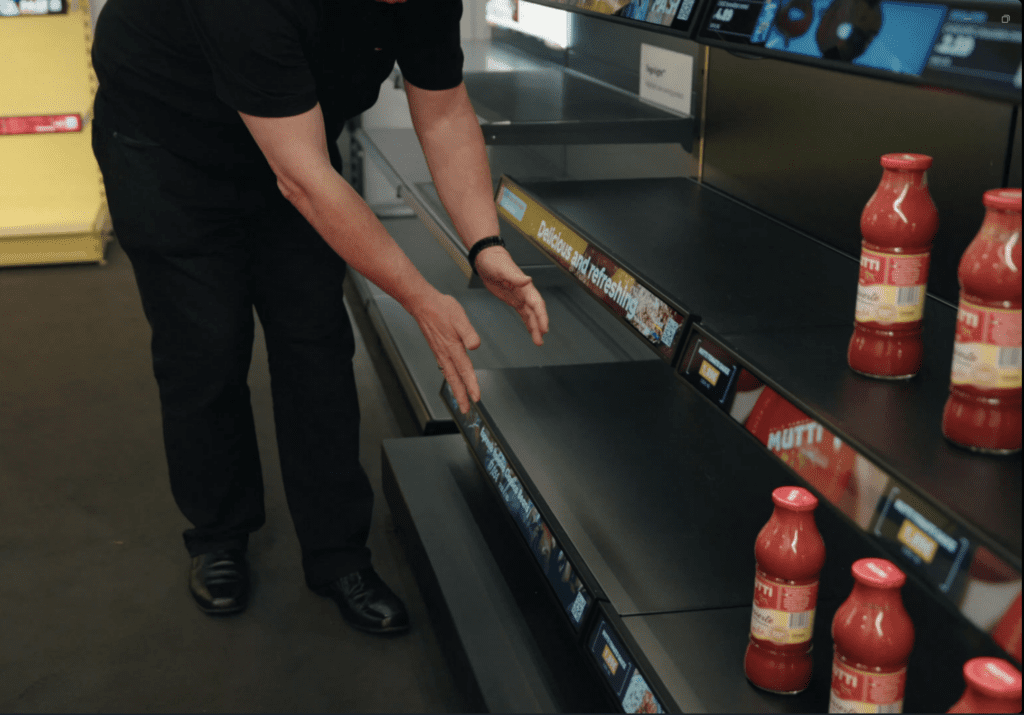

A shelf lit by Shelby light fixture, showing an illuminated lower deck

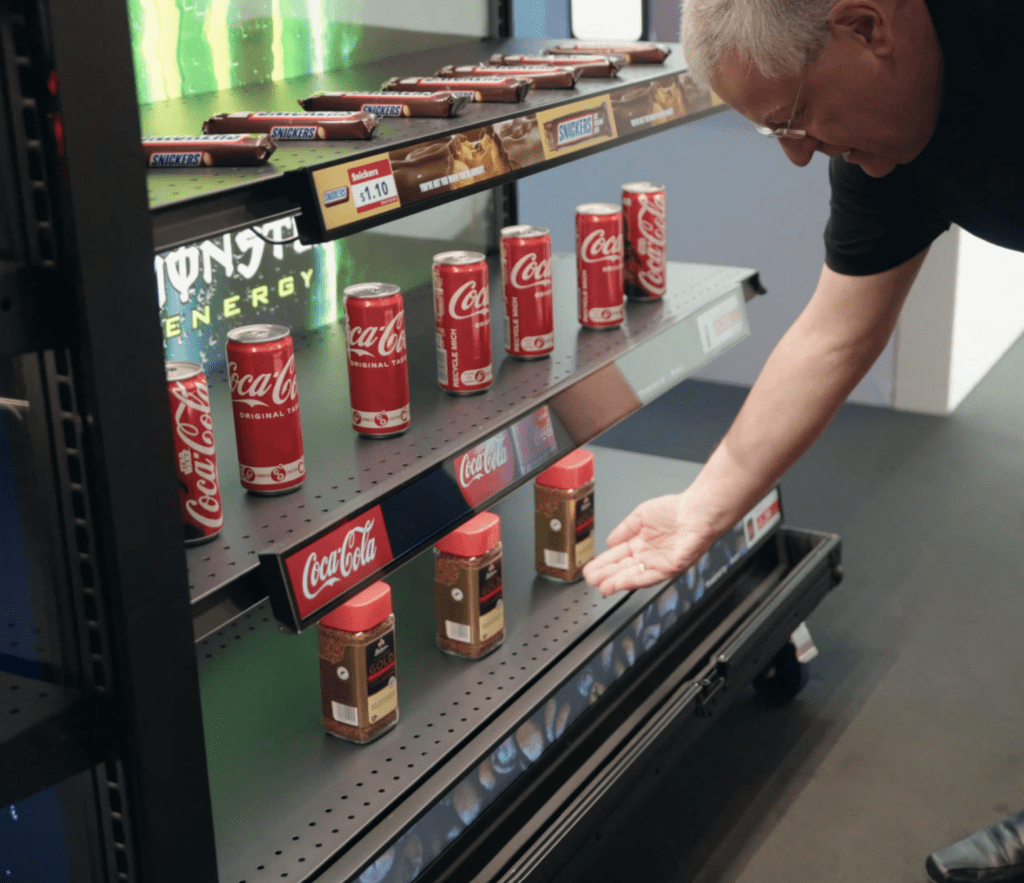

A shelf lit by Shelby lighting fixture, showing how light moves outwards

Specifications

CCT 5000K (3-step)
CRI 90
Input voltage 24V DC
Warranty 5 Years

Shelf Deck Size (US)

2’ 30’’ 3’ 48’’ / 4’ 60’’ / 5’
Length 1’ 9’’ 2’ 3’’ 2’ 10’’ 3’ 8’’ 4’ 9’’
Lumen 430lm 570lm 715lm 935lm 1200lm
Power 3,3W 4,4W 4,5W 7,2W 9,3W

Shelf Deck Size (EU)

500mm 625/665mm 800mm (UK) 1000mm 1250mm 1330mm
Length 430mm 600mm 760mm 930mm 1180mm 1260mm
Lumen 360lm 500lm 645lm 790lm 1000lm 1075lm
Power 2,75W 3,85W 4,95W 6W 7,7W 8,25W

Mounting

Magnetic

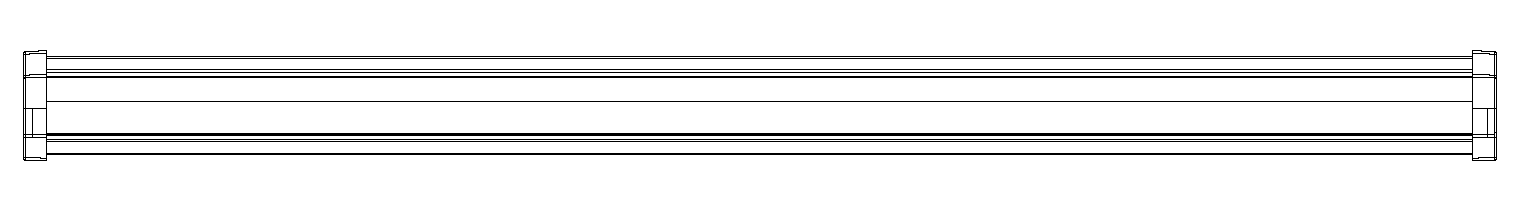

A drawing of the Shelby lighting fixture
Drawing-Shelby- Showing the dimensions
