QuickTune Controller

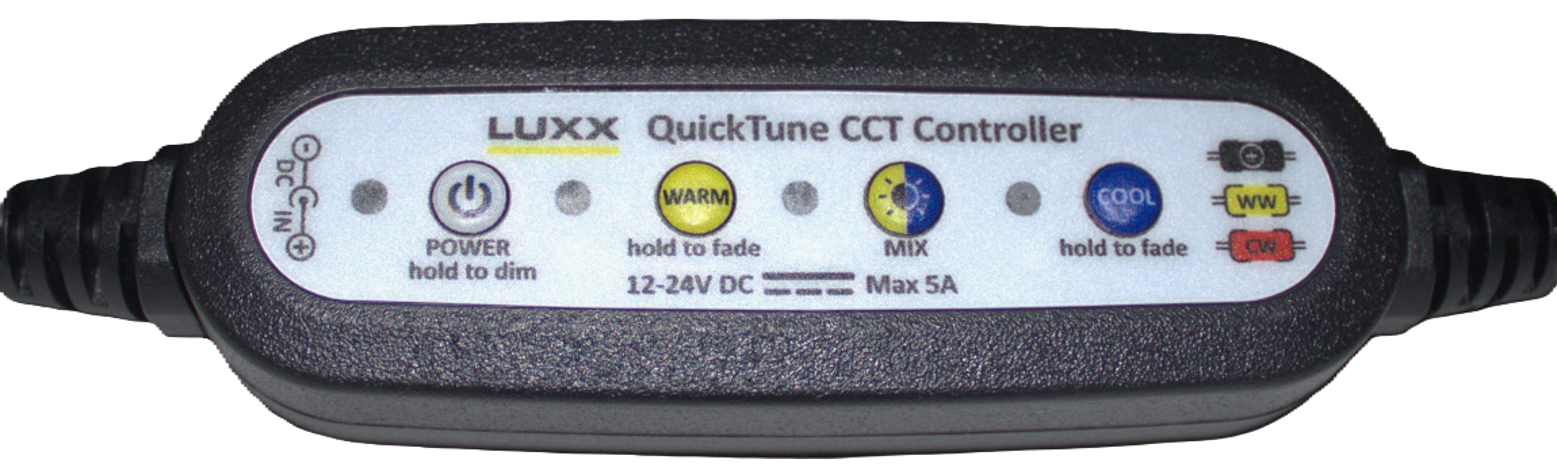

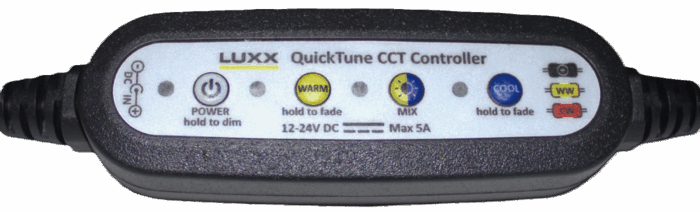

LUXX's QuickTune CCT Controller, showing the face of the controller

QuickTune CCT Controller

Controllers for tunable white lighting— the perfect solutions for creating personalized lighting experiences.

UL Listed · Manufactured by LUXX since 1996 · Backed by a 3-year warranty, extendable to 5. Request a project quote.

QuickTune Controller showing options to tune light to warm white, cool light, or a custom color. Also shows dimming and fading. Cable shown.

With QuickTune controllers, enjoy full color temperature and brightness control at your fingertips.

  • With our QuickTune Universal controller, enjoy wide compatibility across a broad range of tunable white LED fixtures.
  • With QuickTune EasyLink, effortlessly control LUXX LightWave Generation 1 Plus to match any mood or activity.

Easy to install for both professionals and DIY users. Ideal for retail, hospitality, offices and home interiors.

Controller

Universal 4 Buttons with 160mm tinned 3-core open ends
EasyLink 4 Buttons with 1520mm LightWave TW connector

Button Description

POWER Short Press: ON / OFF
Long Press: Dimming
WARM Short Press: Warm white
Long Press: Fade to warm
MIX Short Press: 50% warm / 50% cool
COOL Short Press: Cool white
Long Press: Fade to cool

Electrical & Optical

Voltage 12-24V DC
Output Current 5A / Channel
Channel 2 Channels
PWM Frequency 20000 Hz

Functionality & Safety

Smooth Stepless Dimming Dimming Range 10-100%
Color Mixing Proportional Balancing
Memory Function Yes
Protections Polarity Protection
Product Color Black

Warranty

Years 3

Drawings

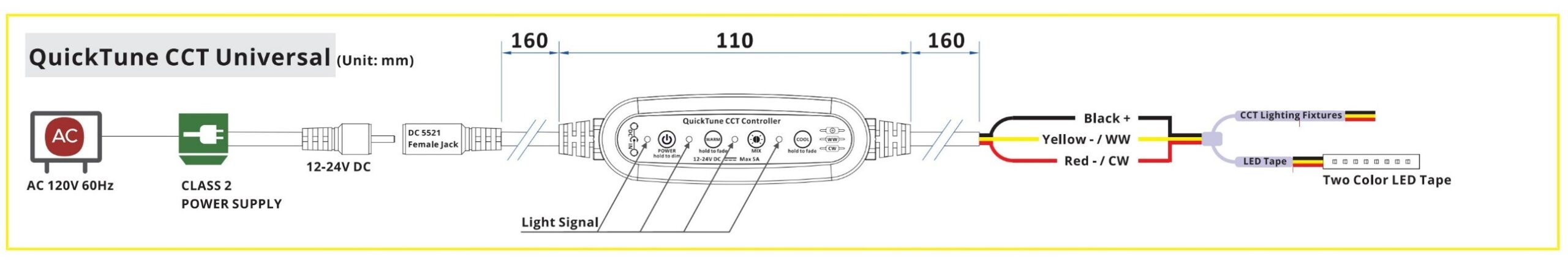

QuickTune Universal-Drawing

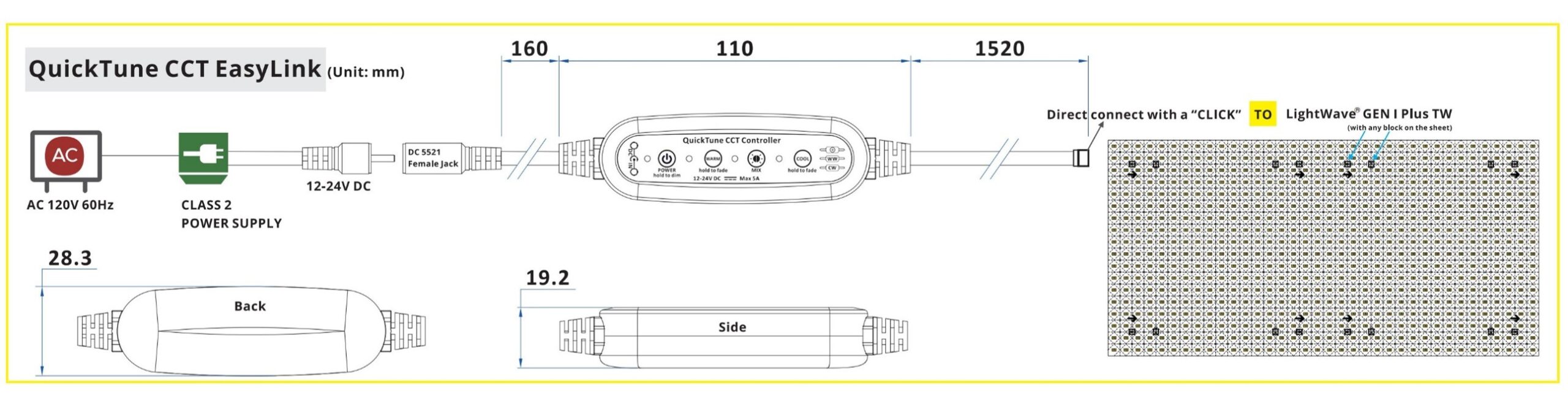

QuickTune EasyLink-Drawing
