Pisa

Vertical Refrigeration & Cooler Lighting

Get A Quotation

Description

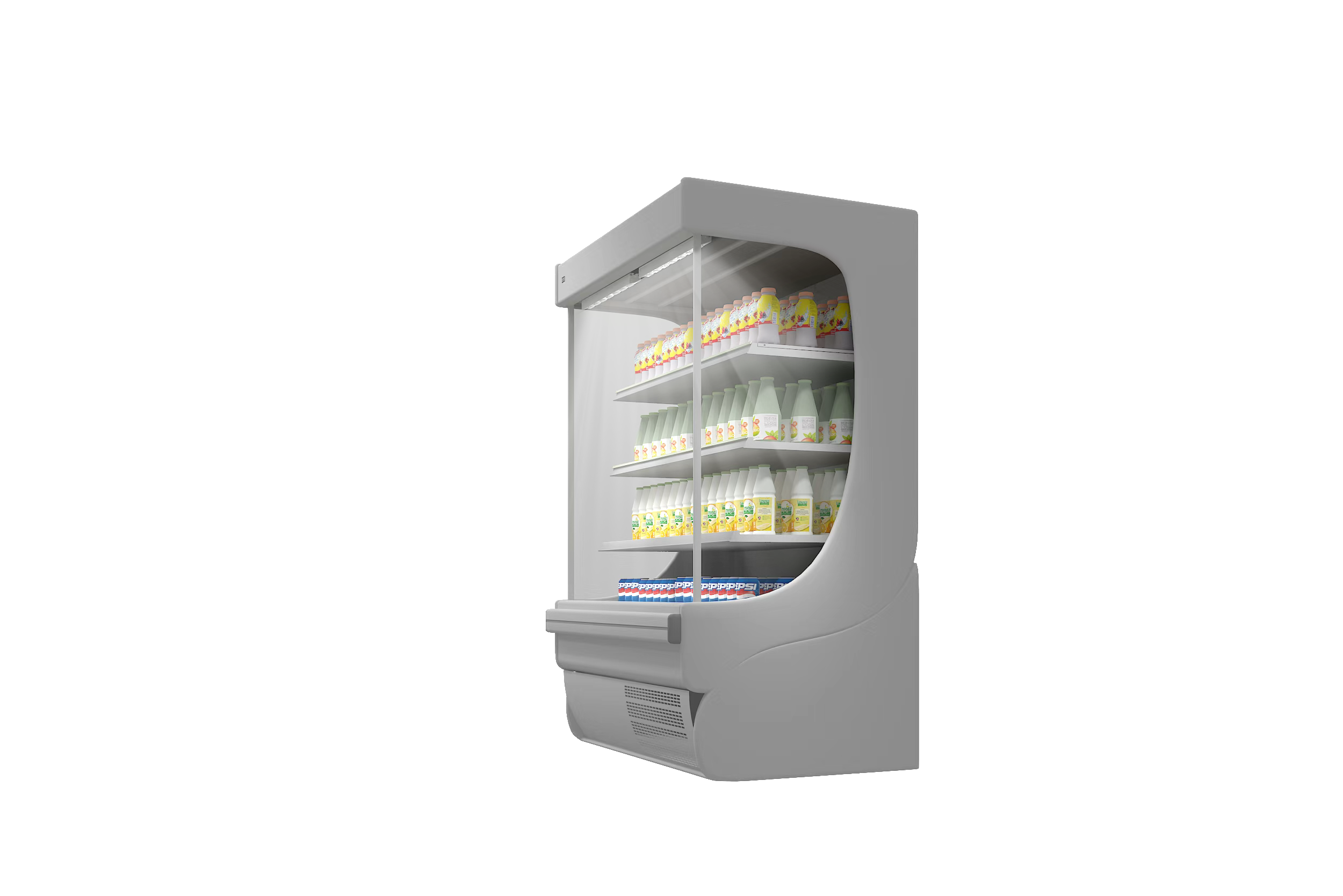

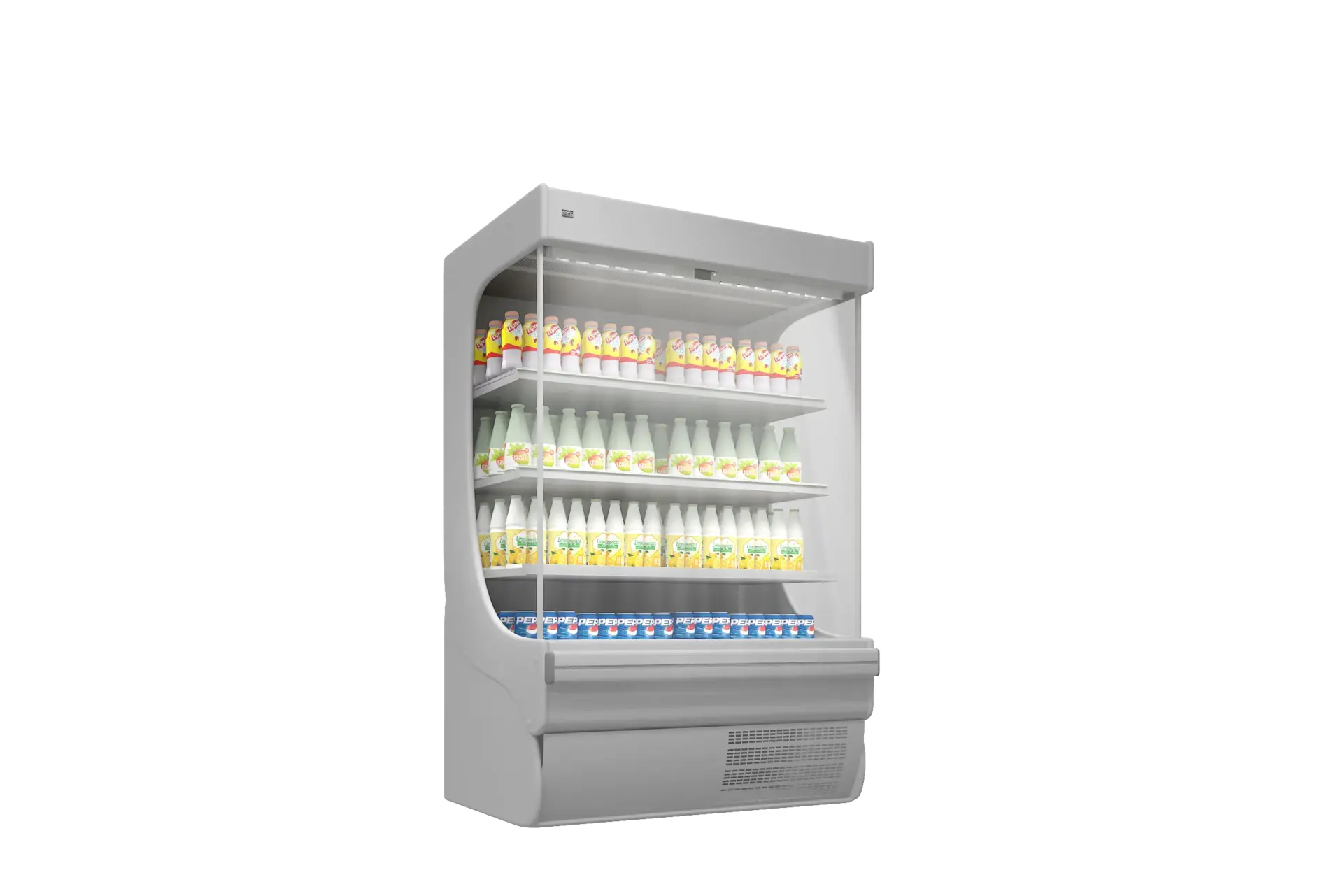

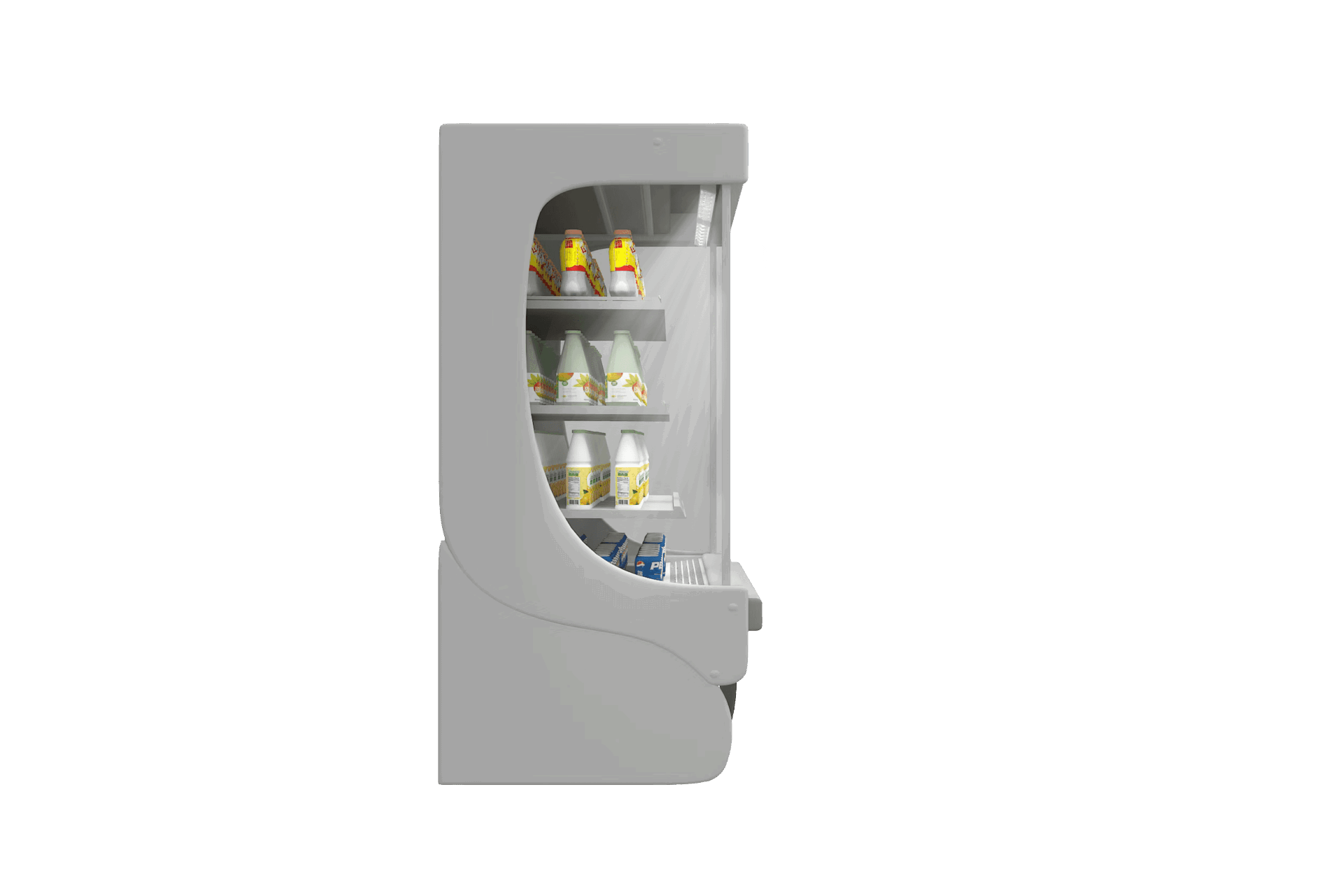

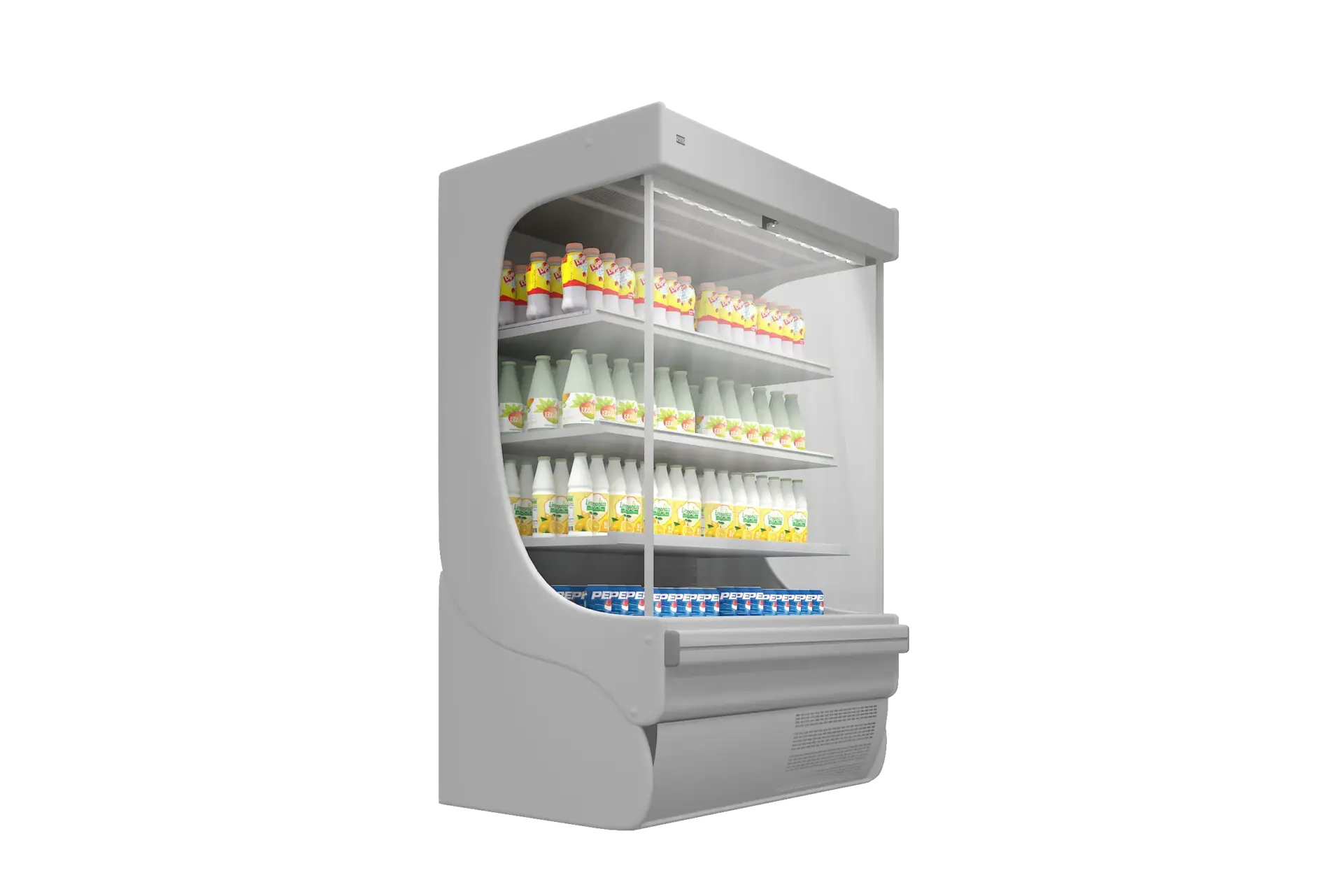

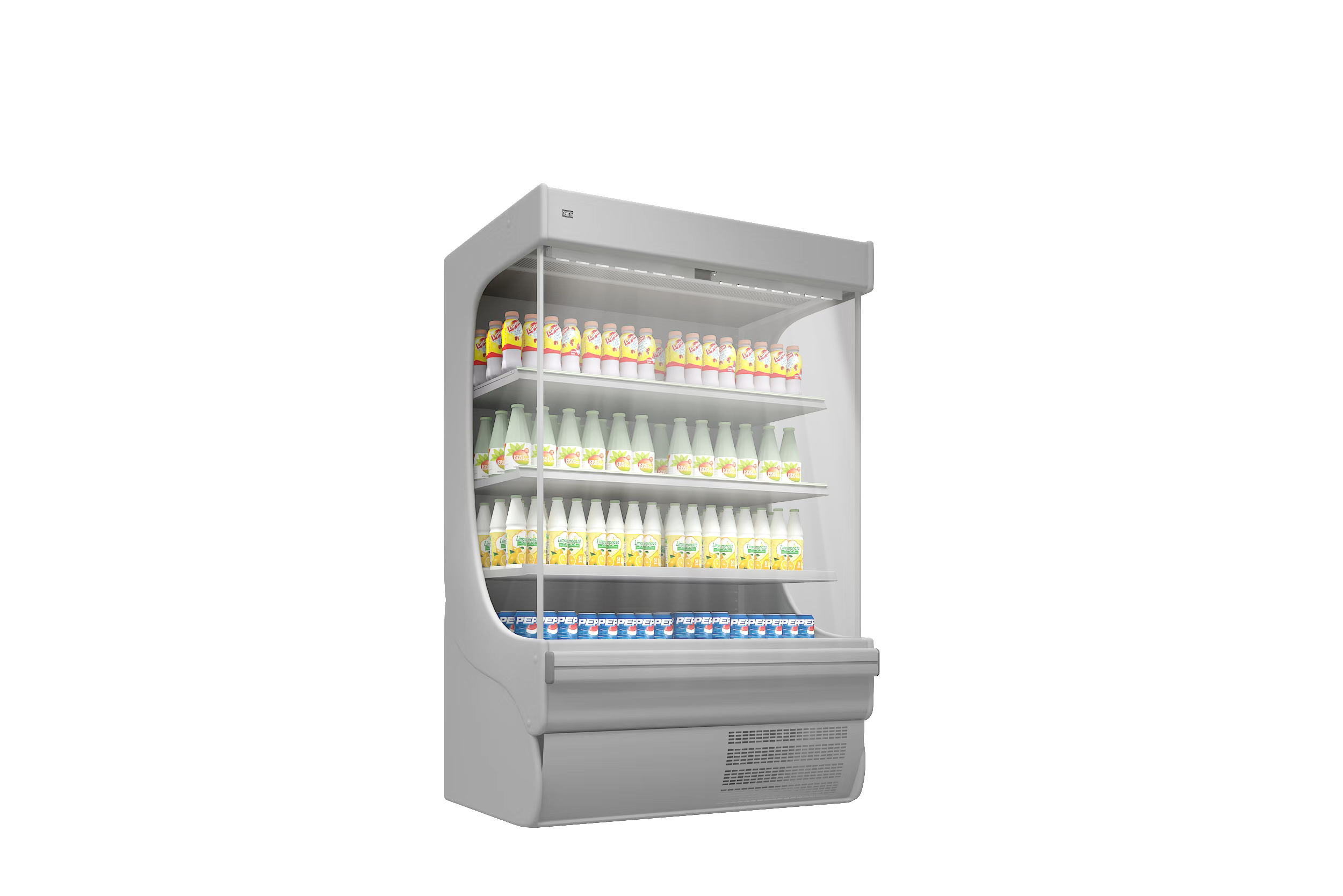

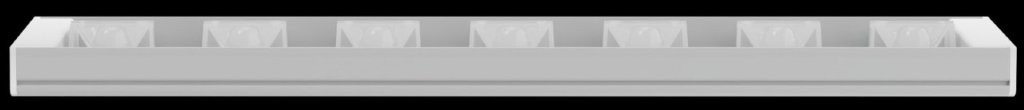

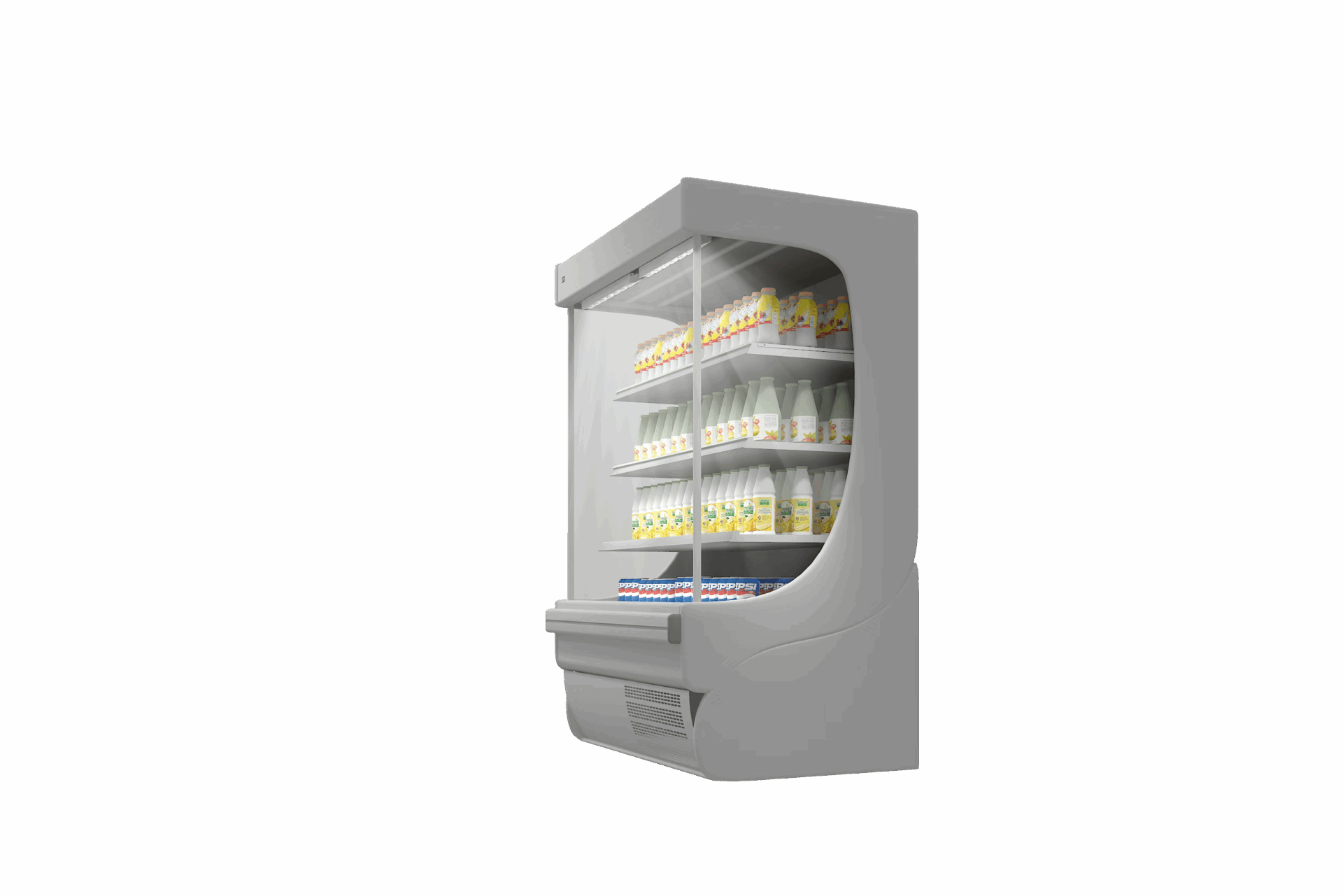

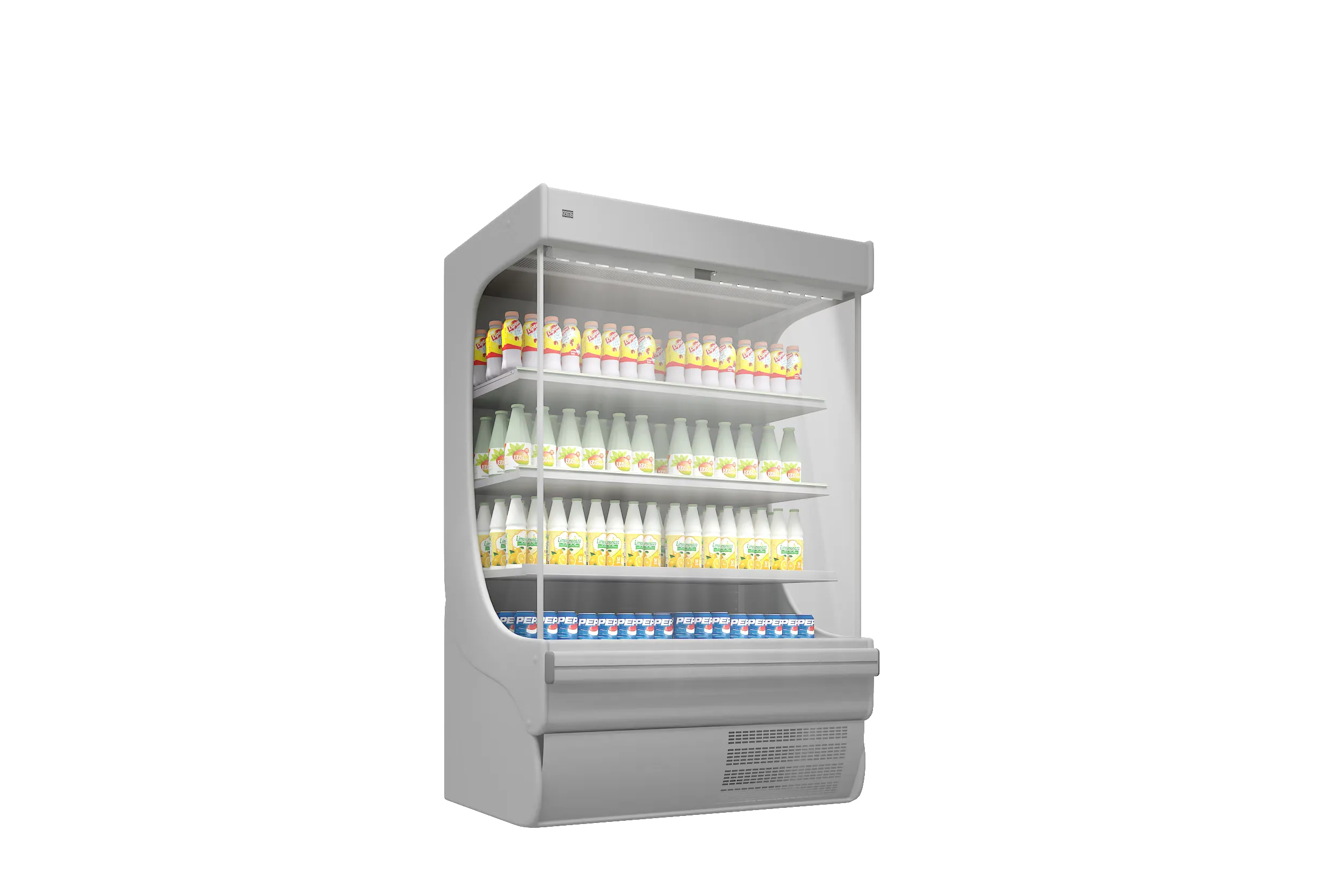

This forward-thinking refrigeration lighting fixture illuminates all shelf decks from top to bottom. Pisa features a lens with 5 different beam angles.

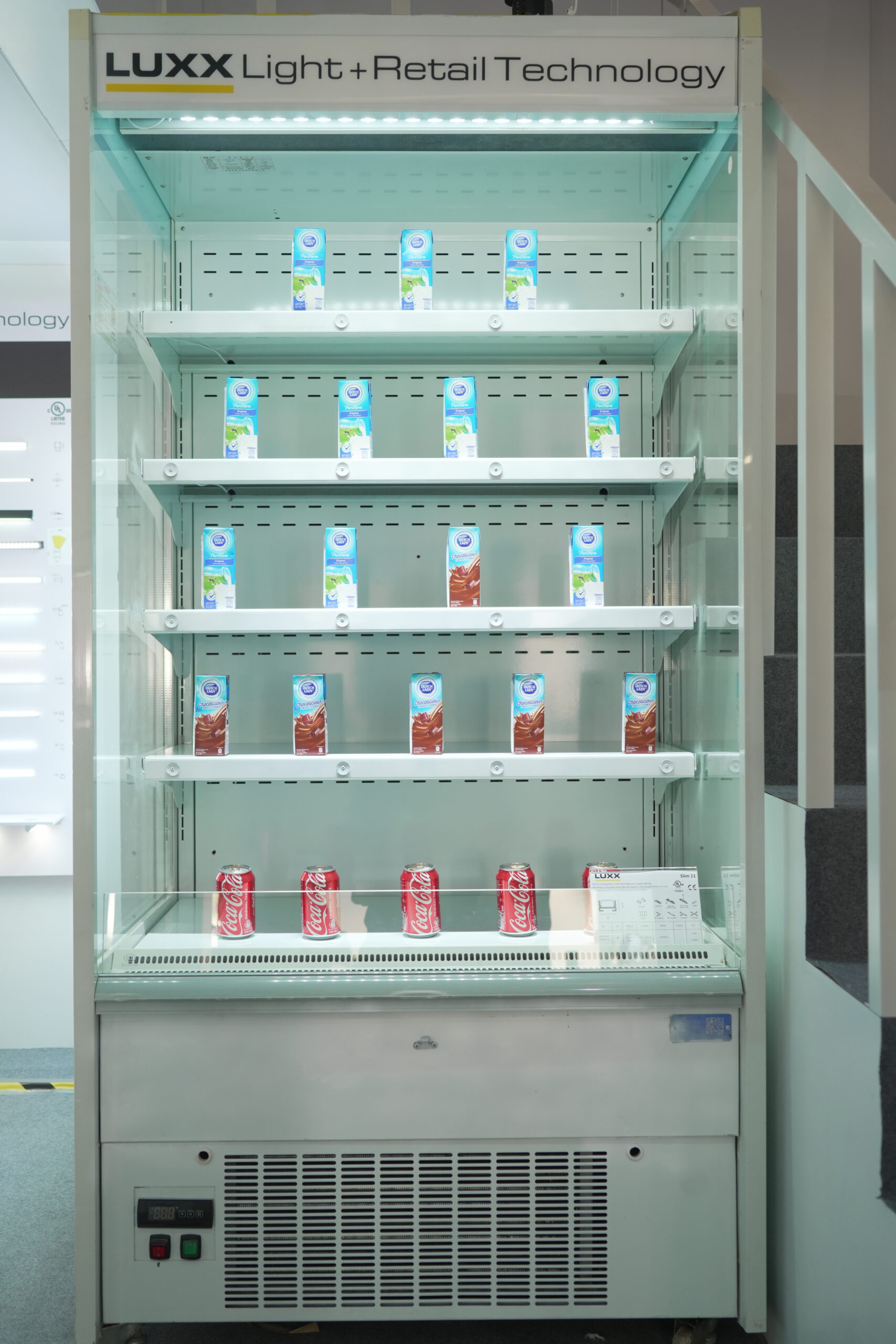

Bright, Even Coverage

Even light distribution that puts your produce in the best light.

The Light Curtain Effect

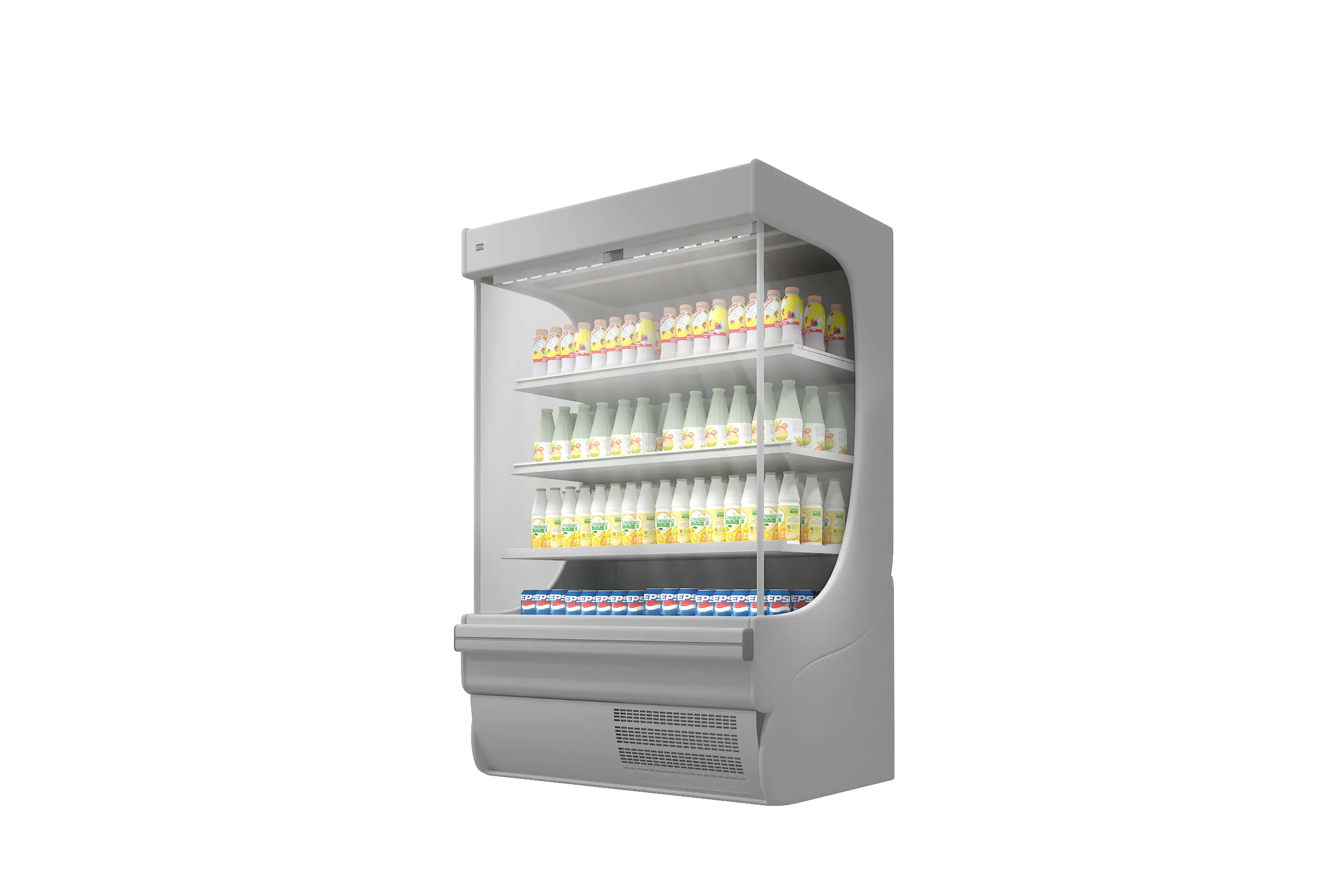

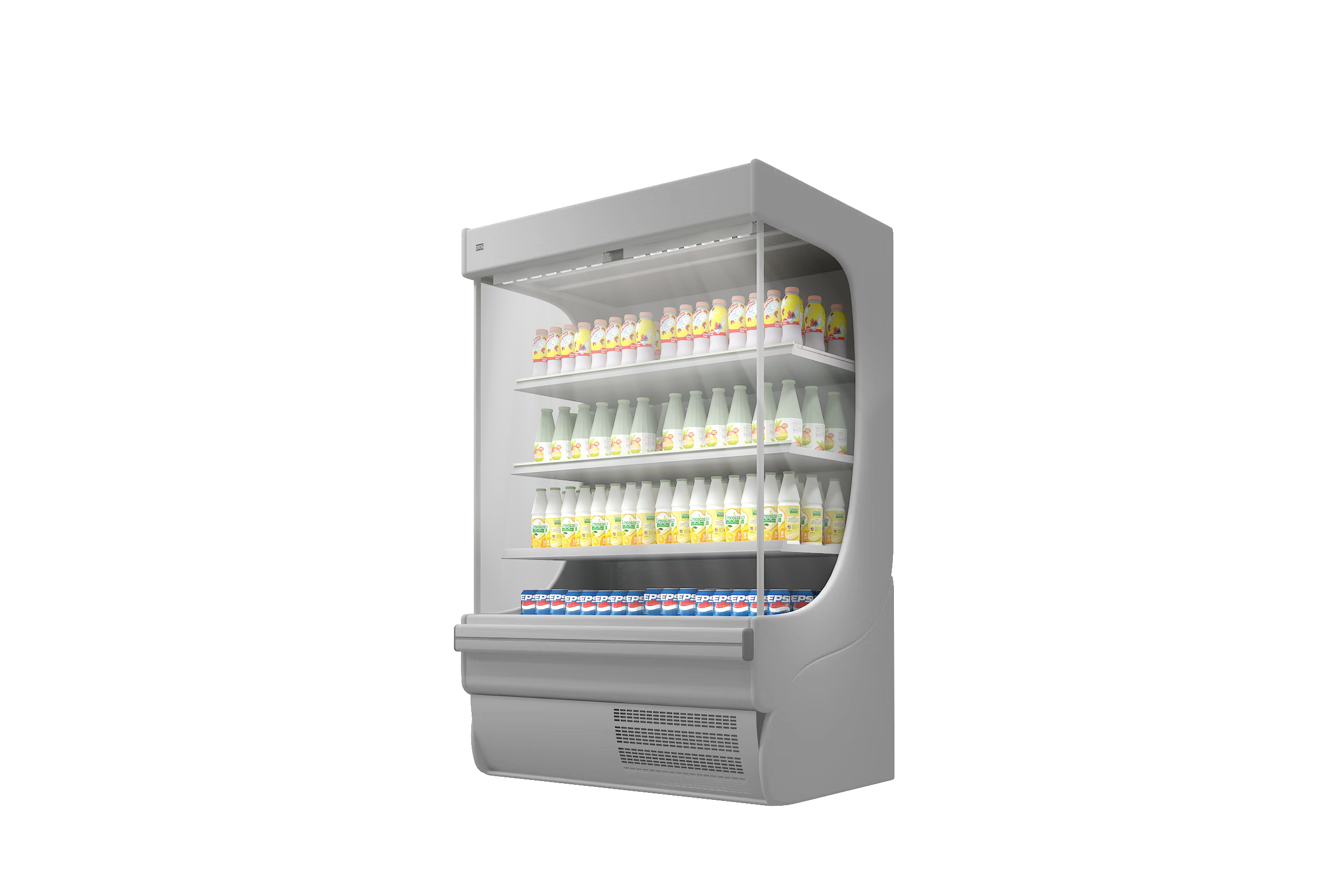

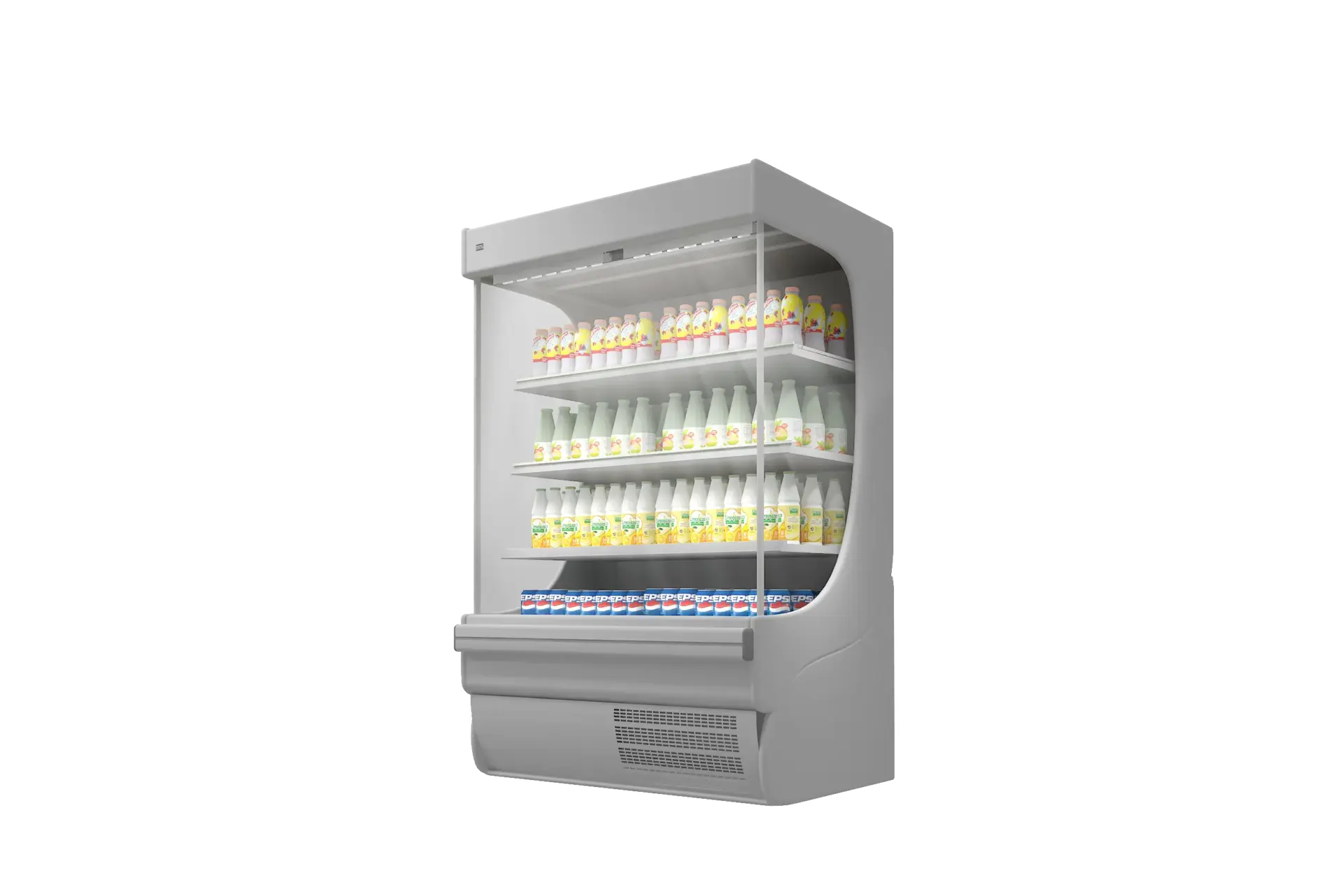

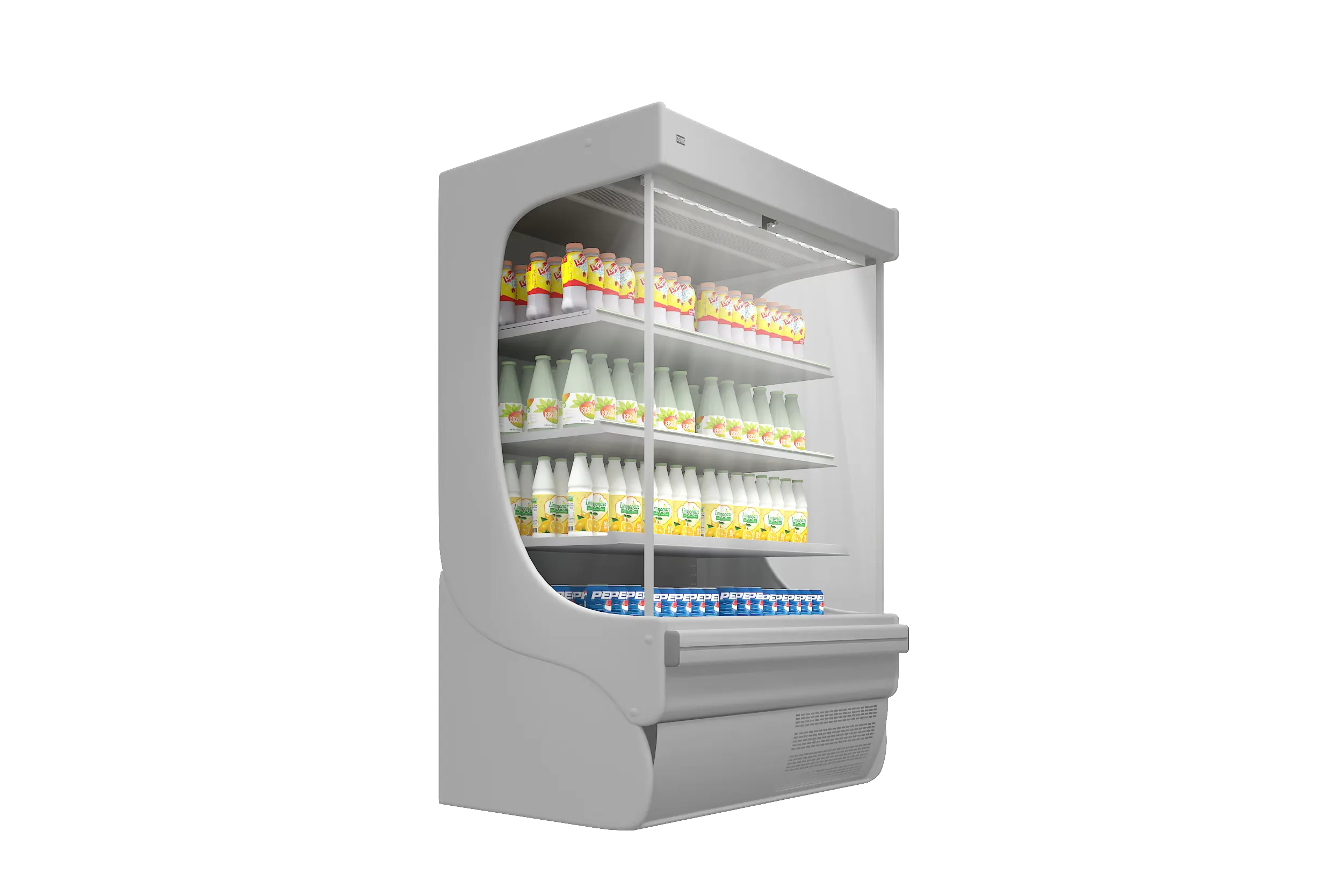

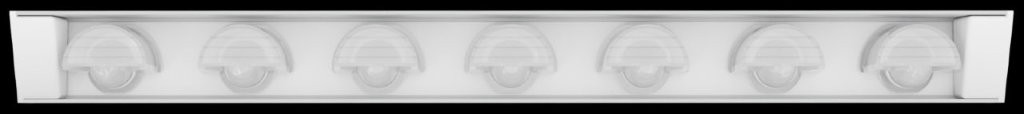

Using a precision lens with five available beam angles, Pisa steers light exactly where it’s needed—creating a curtain of light with perfectly even coverage across every shelf deck, from the top to the base.

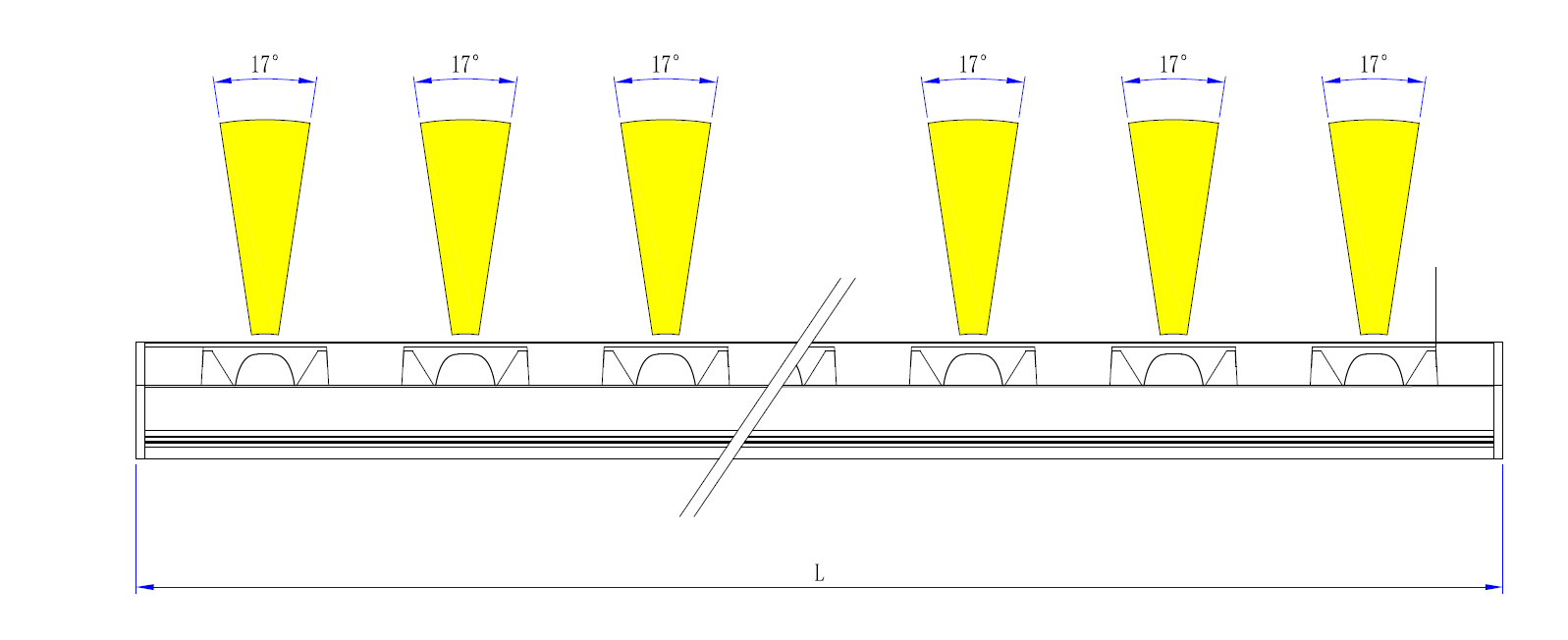

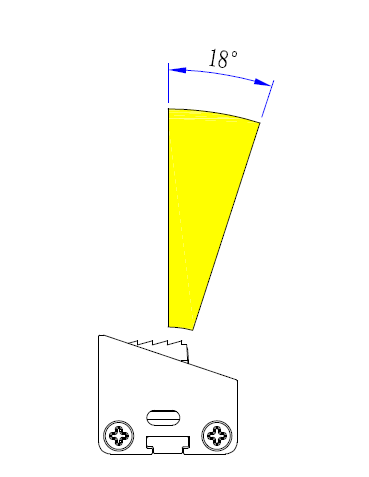

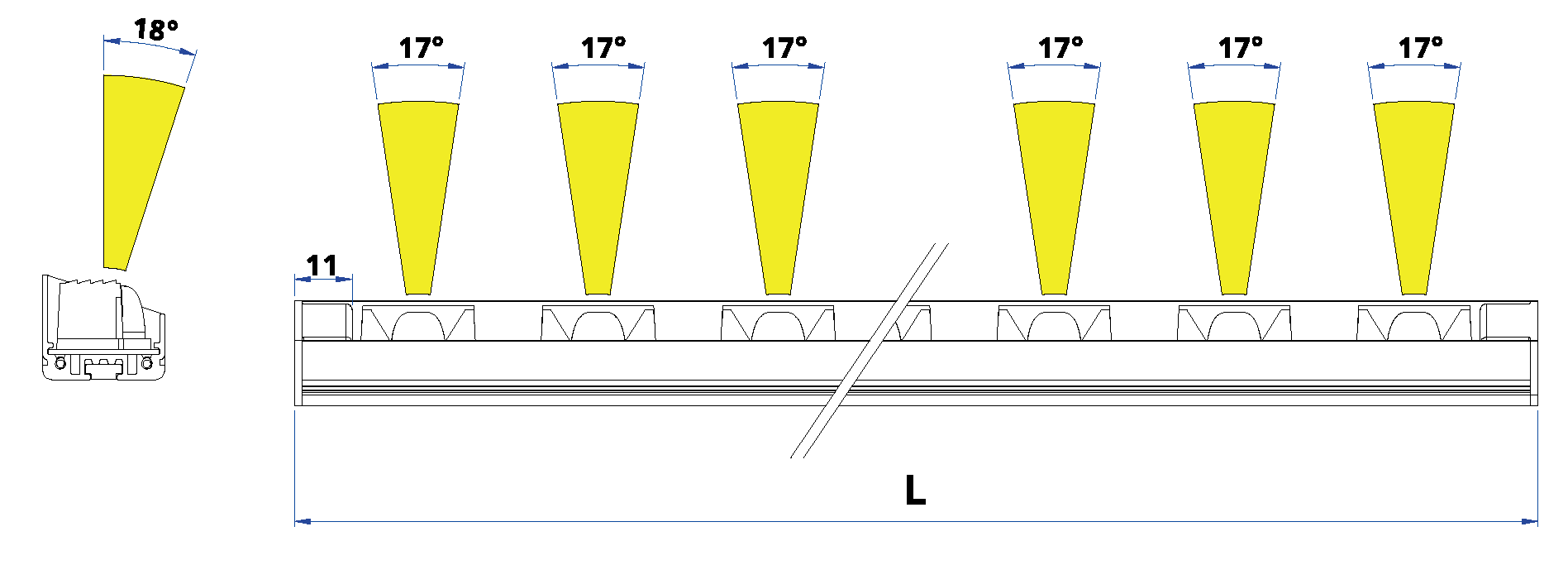

Precision Optics: 5 beam angle options to fit any case depth
Consistent Output: Eliminates “dark spots” at the top and bottom of the cooler

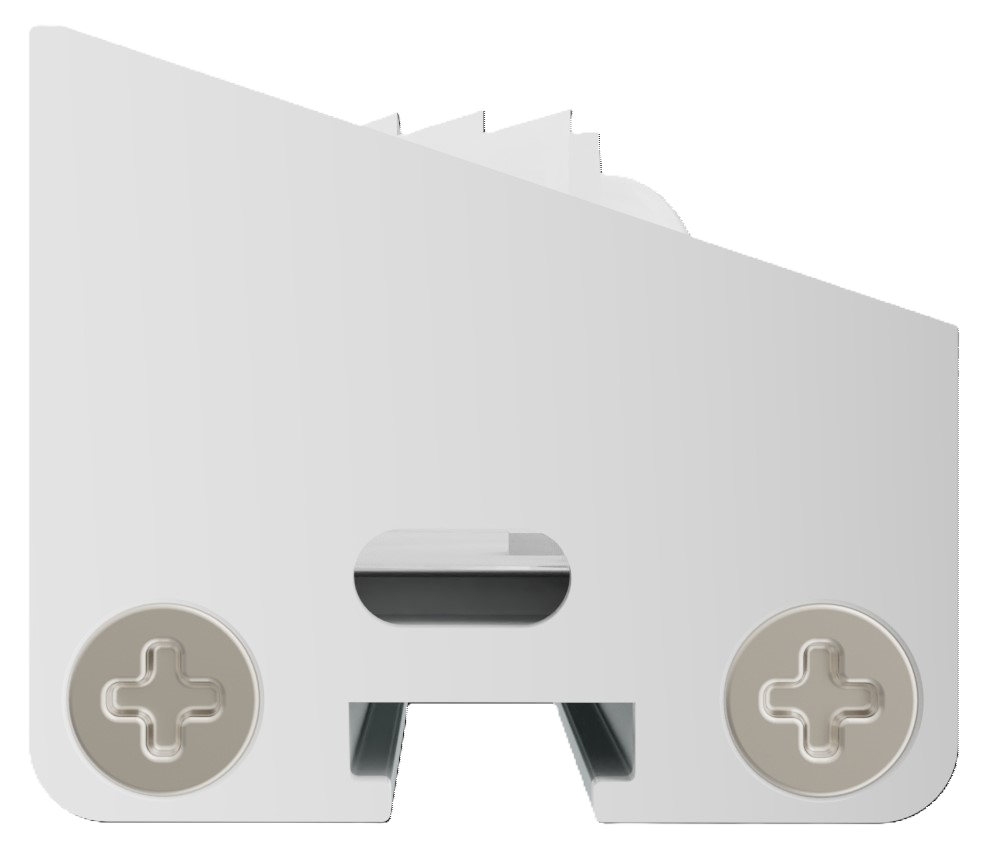

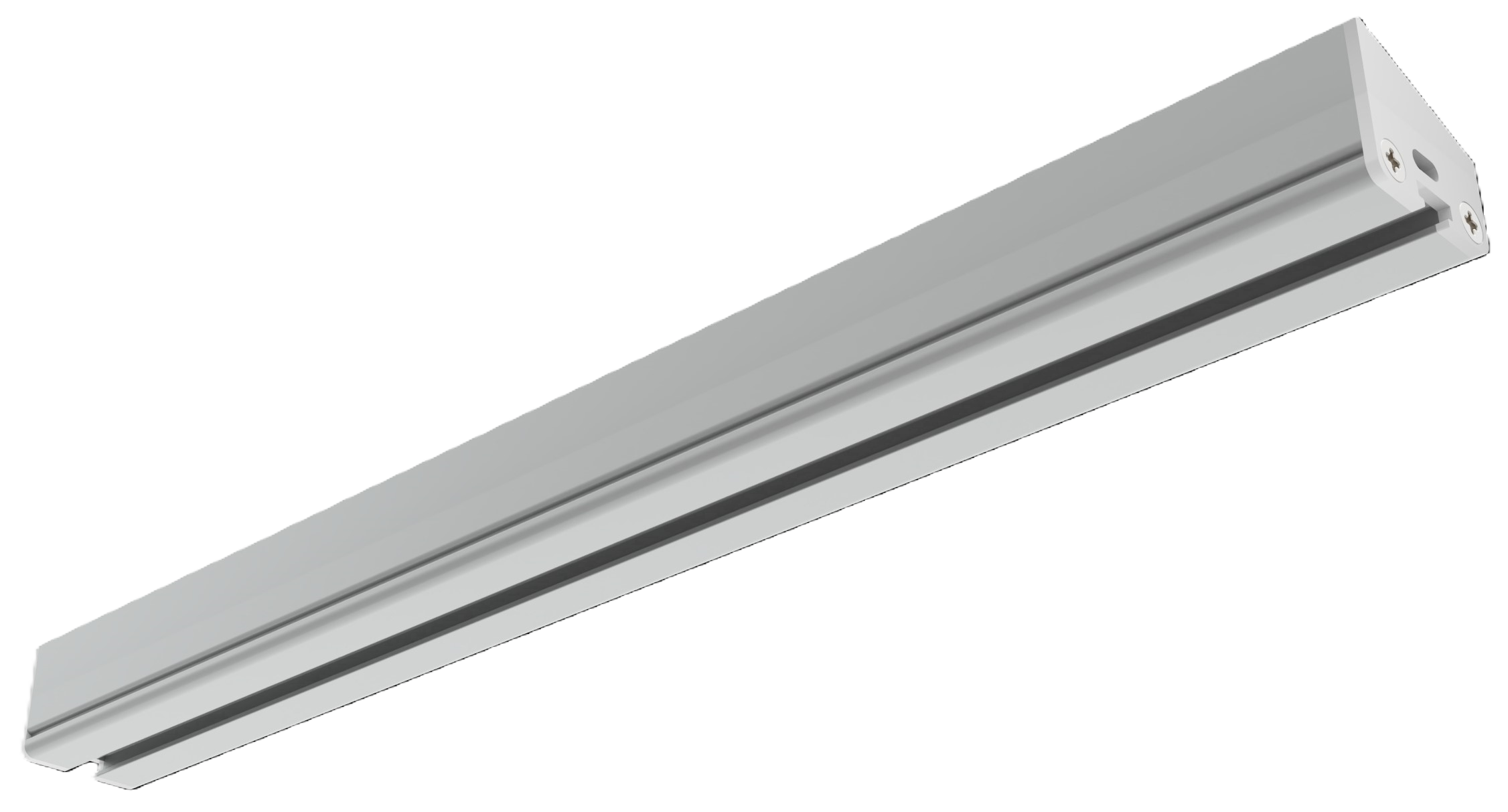

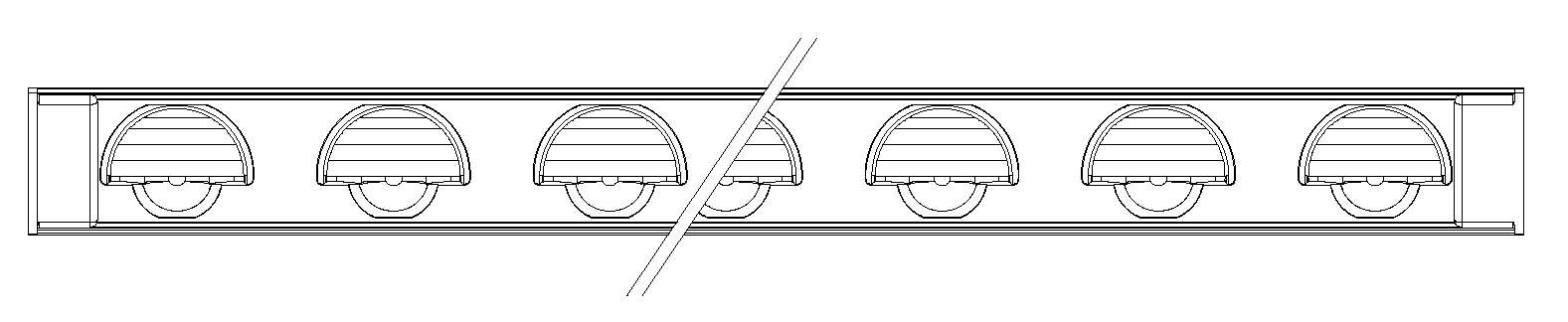

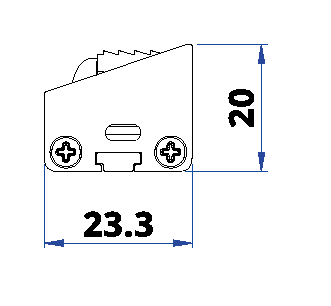

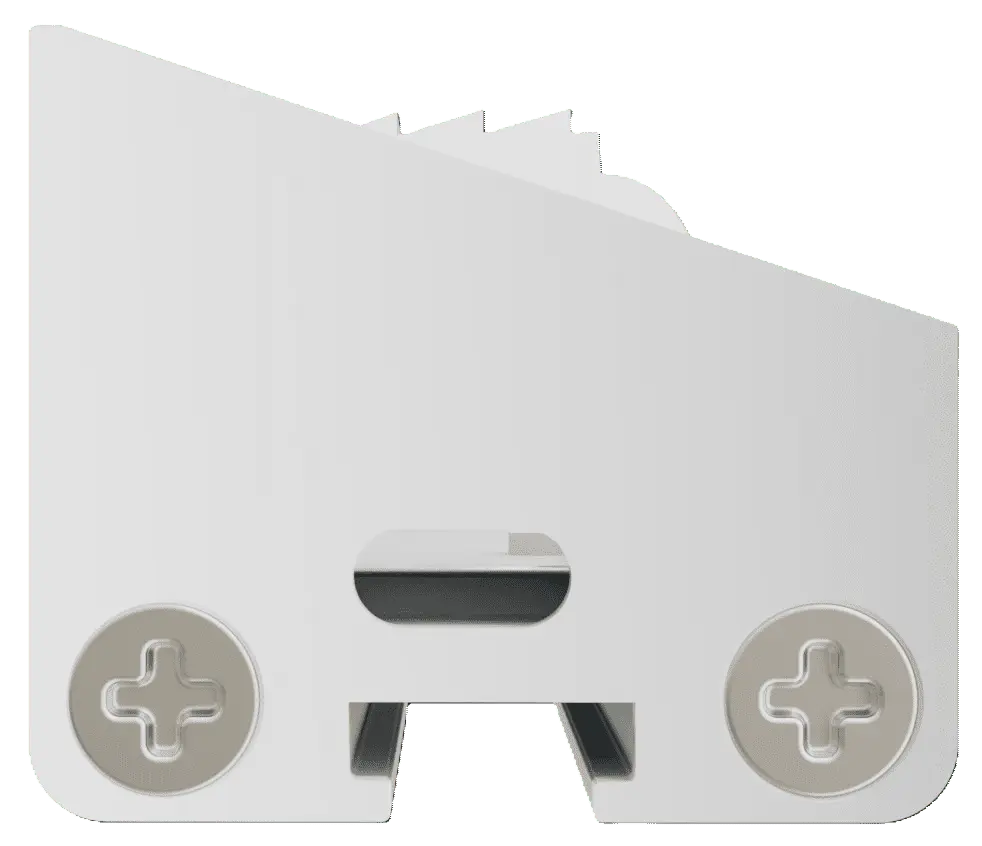

Effortless Integration: Slim profile for elegant mounting

Specifications

	Power	Useful Lumen	Total Lumen	CCT	CRI	Beam Angle	SKU
740mm	10.8	900	1150	4000K 5000K 6500K	90	17	PSA-029KK90-24-01-074
740mm	18	1500	1900	“	90	17	PSA-029KK90-24-02-074
980mm	14.4	1200	1500	“	90	17	PSA-029KK90-24-01-098
980mm	24	2000	2500	“	90	17	PSA-029KK90-24-02-098
1220mm	18	1500	1900	“	90	17	PSA-029KK90-24-01-122
1220mm	30	2500	3200	“	90	17	PSA-029KK90-24-02-122
1460mm	21.6	1800	3200	“	90	17	PSA-029KK90-24-01-146
1460mm	36	3000	3800	“	90	17	PSA-029KK90-24-02-146
