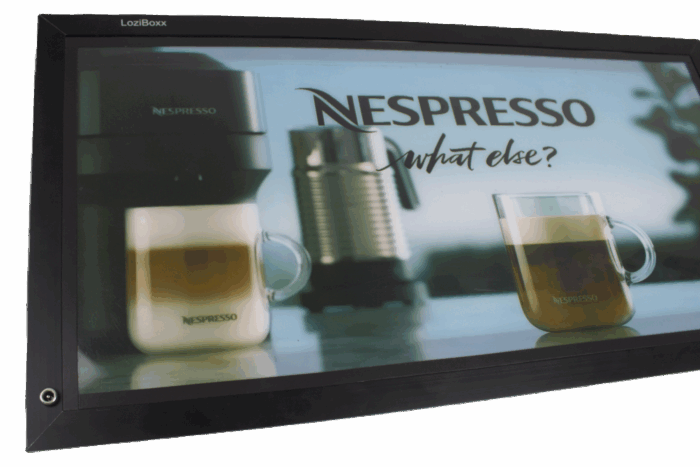

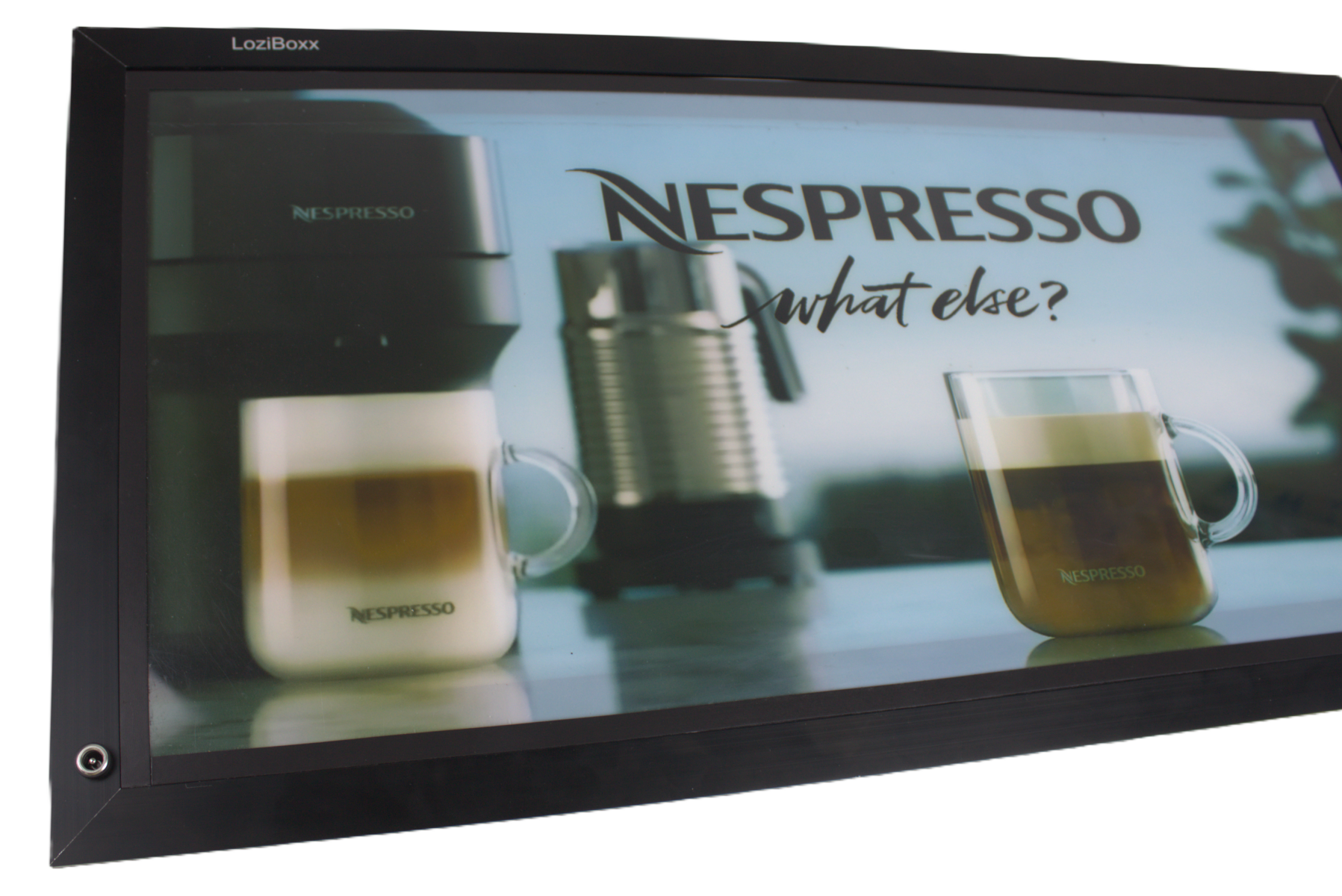

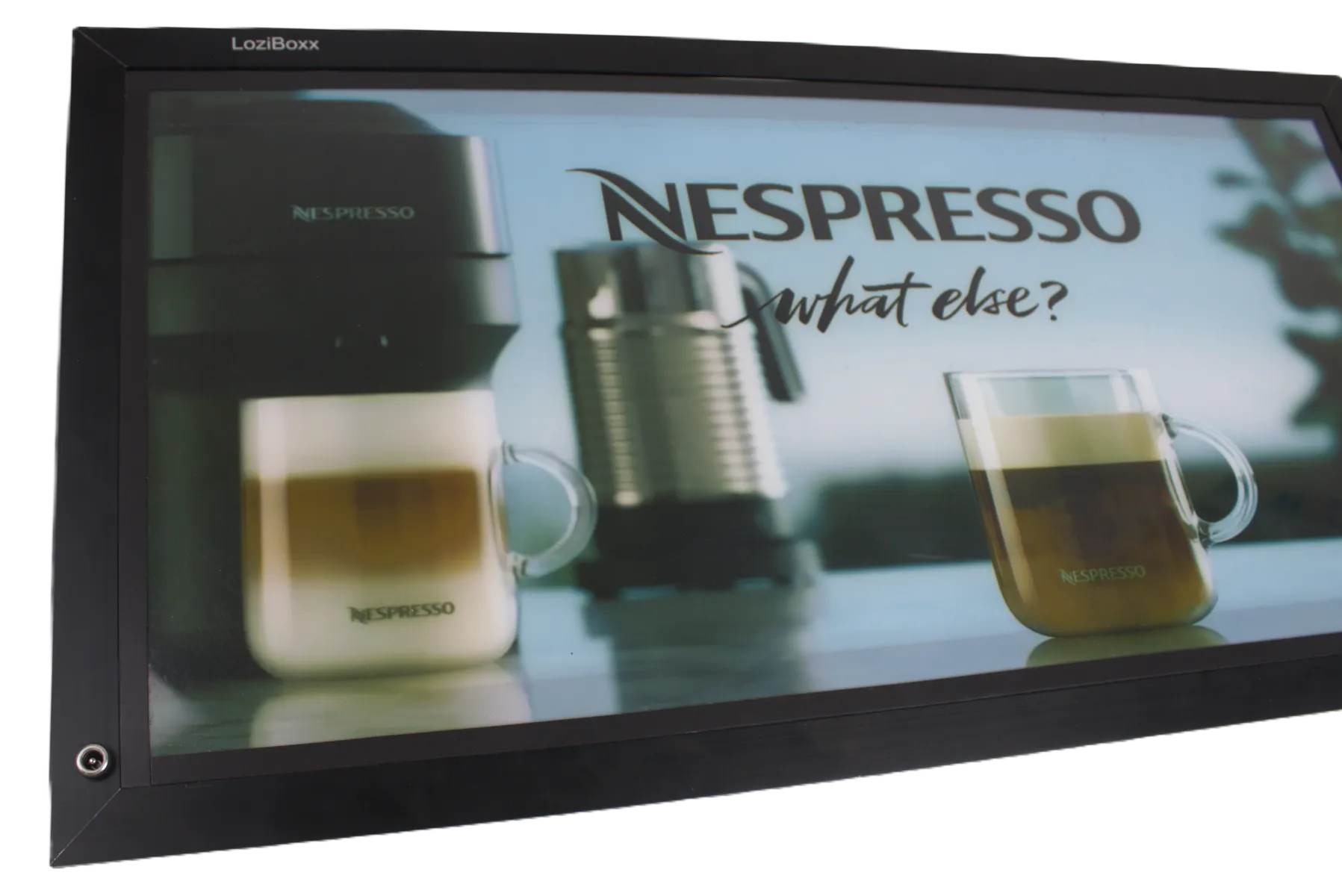

The sleek, 12“ high light box is crafted exclusively for Lozier and Lozier compatible shelving systems. It adds vivid visuals to shelving displays.

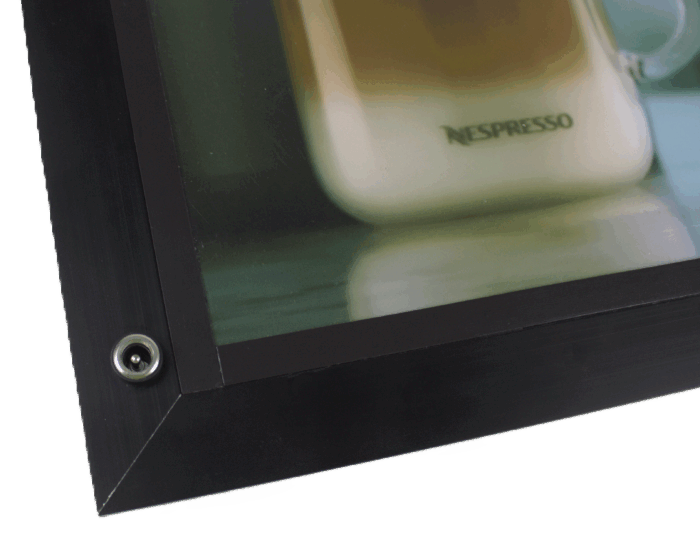

Ideal for showcasing promotions, menus, or product details. Features a magnetic frame that allows you to swap visuals in minutes, as well as front wiring that makes it easy to retrofit existing shelving.

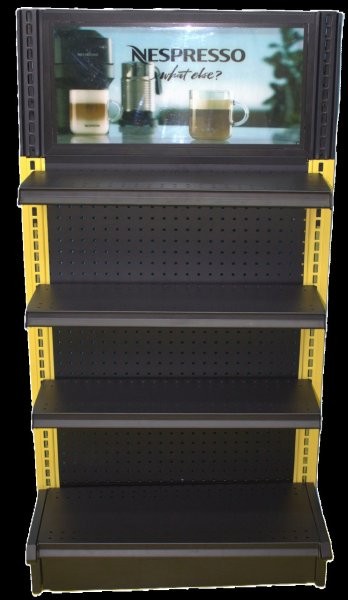

- Compatible with Lozier and Lozier compatible gondolas
- Consistent aesthetics and fit
- Continuous 24/7 operation
- Available in standard and extra bright
Specifications
Voltage | 24 VDC |
Power | 11.5W – 42W |
Color Temperature | 6500K |
Brightness | Standard: 2500cd / m2 Extra bright: 5000cd / m2 |
Product Color | Black (Other options on request: size, product color, color temperature and more) |
Shelf Size
3’ Shelf | 4’ Shelf | 5’ Shelf | |
LoziBoxxTM Size (L * W * H) |
34.5 x 11.7 x 0.35 inch (876 x 298 x 8.8mm) |
46.5 x 11.7 x 0.35 inch (1181 x 298 x 8.8mm) |
58.5 x 11.7 x 0.35 inch (1486 x 298 x 8.8mm) |
Poster Size (L1 * W1) |
32.6 x 9.86 inch (828.5 x 250.5mm) |
44.6 x 9.86 inch (1133.5 x 250.5mm) |
56.6 x 9.86 inch (1438.5 x 250.5mm) |
Light-up Area (L2 * W2) |
31.6 x 8.85 inch (802.8 x 224.8mm) |
43.6 x 8.85 inch (1107.8 x 224.8mm) |
55.6 x 8.85 inch (1412.8 x 224.8mm) |
3′ Shelf | SKU | 4′ Shelf | SKU | 5′ Shelf | SKU | |
---|---|---|---|---|---|---|
Standard | 11.5W | LUXX-LBX-MG-4-65 | 16.5W | LUXX-LBX-SEG-4-65 | 20.5W | LUXX-LBX-MG-5-65 |
Extra-Bright | 23W | LUXX-LBX-MG-3-65HB | 32W | LUXX-LBX-MG-4-65HB | 41W | LUXX-LBX-MG-5-65HB |
