Description

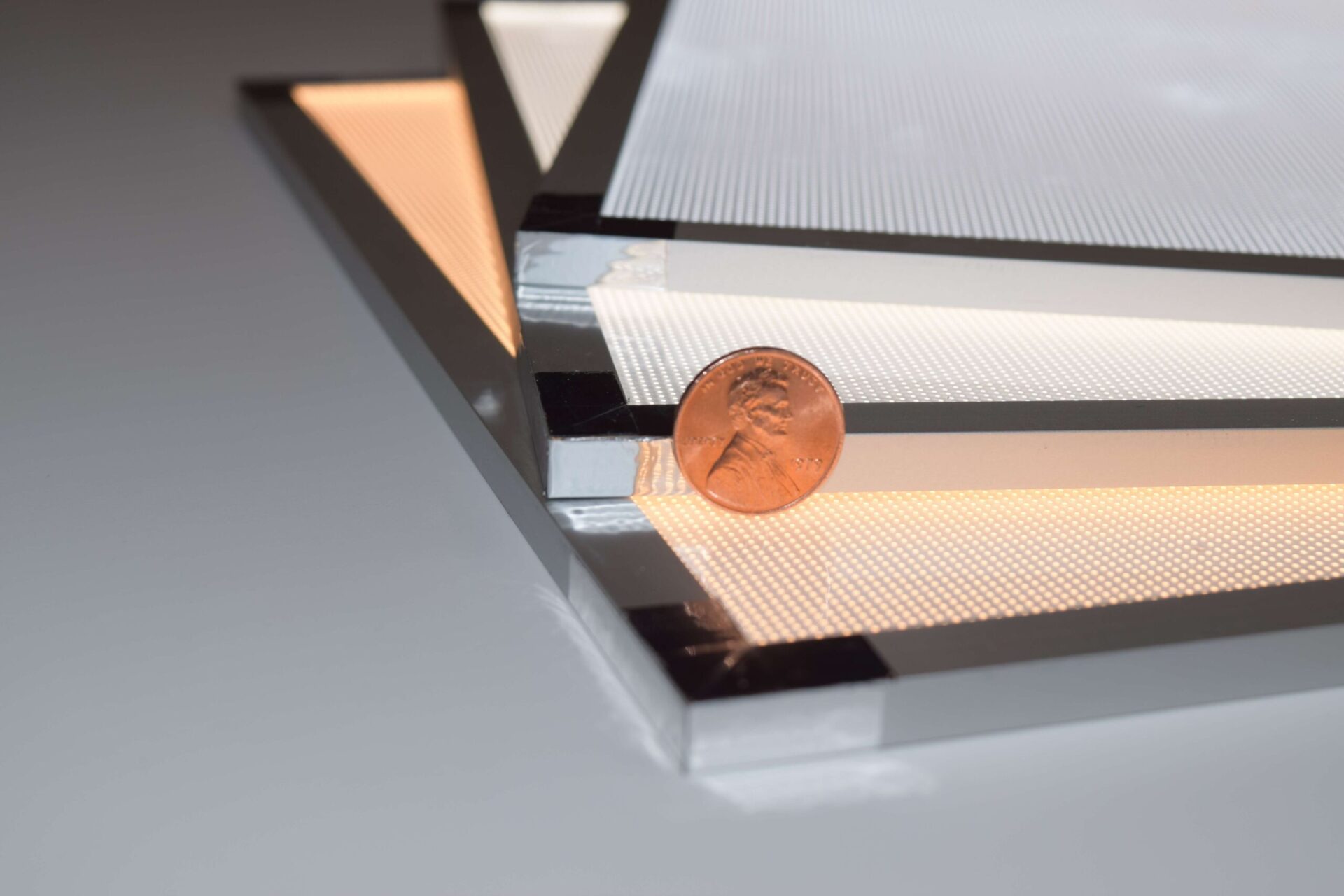

Our edge-lit Variable White LED light panel offers bright, even light with adjustable CCT. Easily change your lighting from warm white to cool white, suiting different moods or settings throughout the day. This ability to tune color temperature is especially beneficial for retail, architectural, OEM, custom and industrial environments.
LUXX variable white light panels offer the crisp and clean, high CRI lighting we’re known for. Our laser dotting technology ensures consistent illumination across the entire surface of the panel.
| Manufacturing Technology | Laser machine for precise cutting of panel and laser engraving for fully optimized dot diffusion pattern |
| PMMA Panel Thickness | 0.177” (4.5mm), 0.236” (6mm), 0.354” (9mm) |
| Minimum Panel Size |
3.93” x 3.93” (99.82mm x 99.822mm) |
| Maximum Panel Size | 47.24” x 98.42” (1199.896mm x 2499.868mm) |
| Mounting | No mounting accessories or hardware included |
| Application | Indoor (IP Protected version available upon request) |
| Overall Finish | J-Chanel, Crystal or Taped |
| Light Entry | 1-sided, 2-sided, 3-sided, or 4-sided |
| Diffusion Film or Diffusion Panel | Optional |
| Panel AIR Shield (Reflection Sheet) | Optional, thickness .0007” (.02mm) |
| Taped | Optional |
| Power Exist | Customer define, bottom left, bottom right, upper left, upper right, bottom middle, upper middle |
| Power Exit Connecting Cable | 6” White Male IP54 Connecting Cable or Barrel Plug (customer define) |
| Color Temperature | CRI | LEDs/Ft | Lumens/Ft | Power |
|---|---|---|---|---|
| CCT | 90 | 73 LEDs/ft | TBD | 5.5W/ft |
| Power | |
|---|---|
| Input Voltage | 24V DC |
| Power Supply | Optional, 24V DC power supply not included, can be purchased separately |
| Wire Output Connector | Optional, 40’’ White Female IP54 Connector or 5.5×2.1 mm DC barrel plug |
| Operating Temperature | -20°C~+40°C |
| Installation | |
|---|---|
| Mounting | No mounting accessories or hardware included |
| LEDs & Panel | 24 months |
| Certification | UL |
