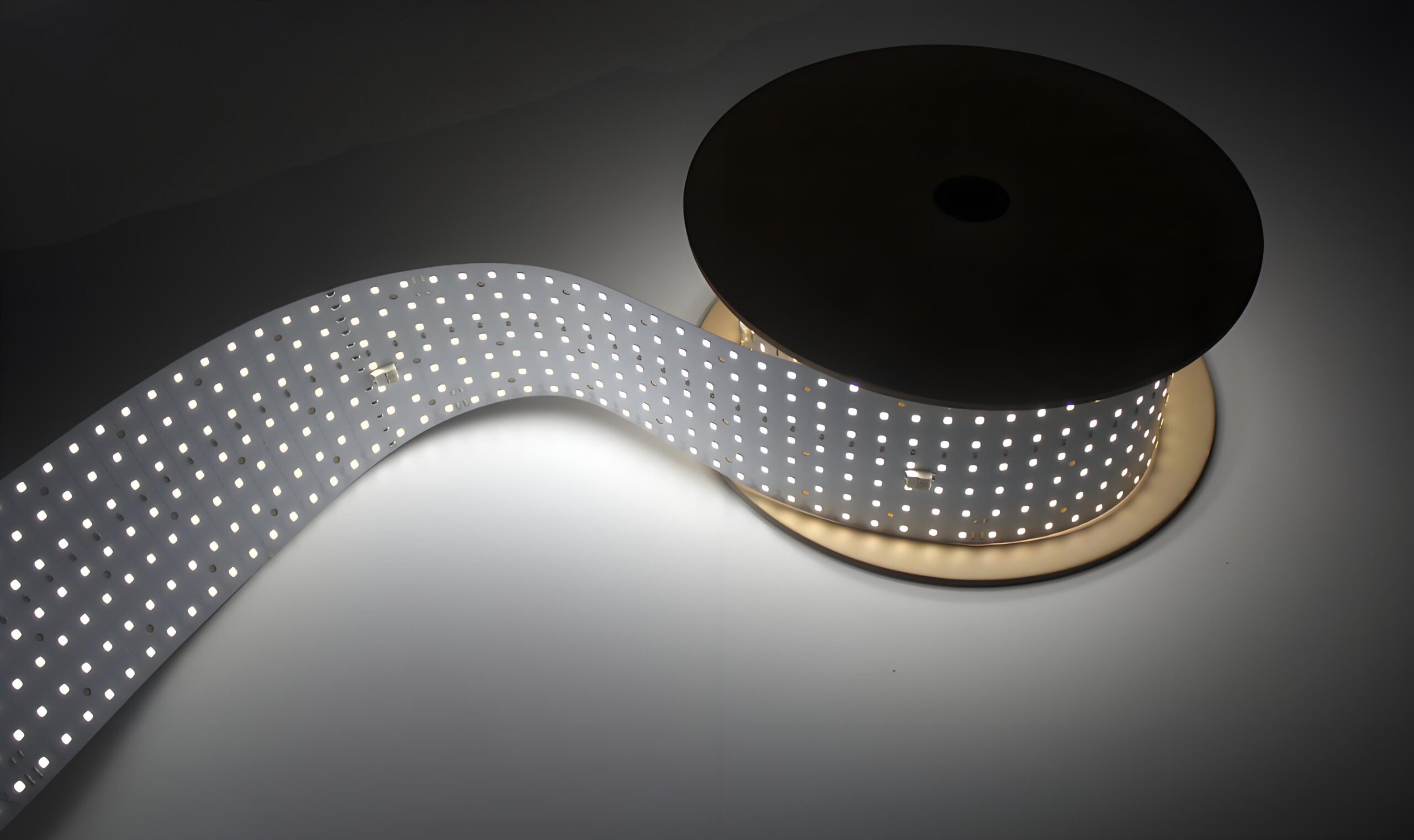

LEDs do! LightWave Roll It!

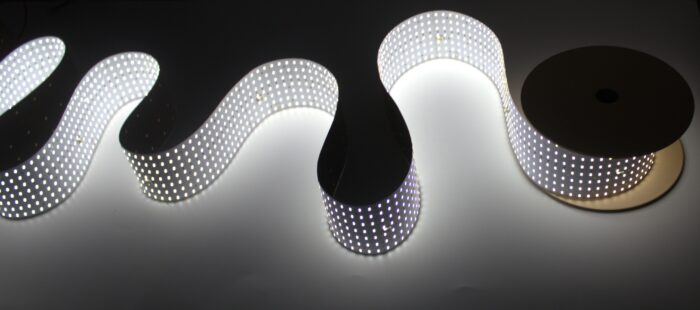

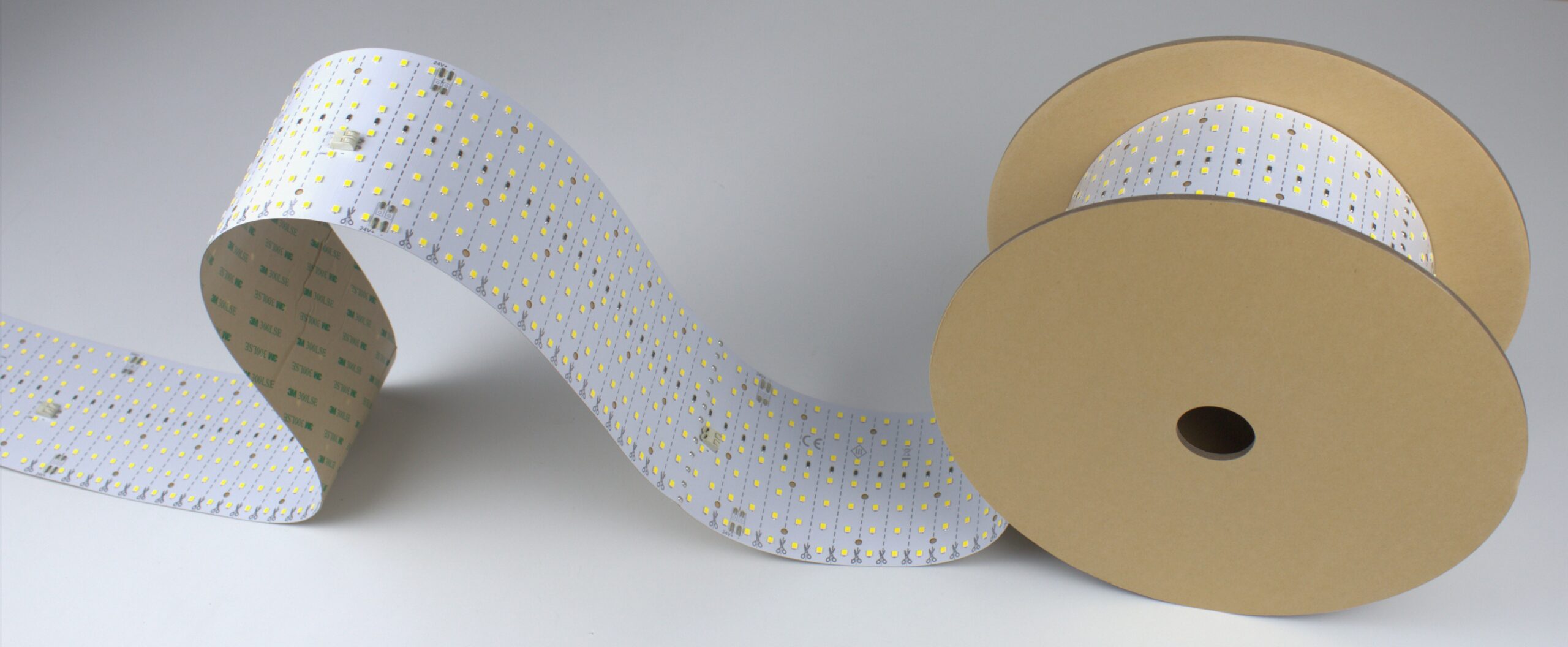

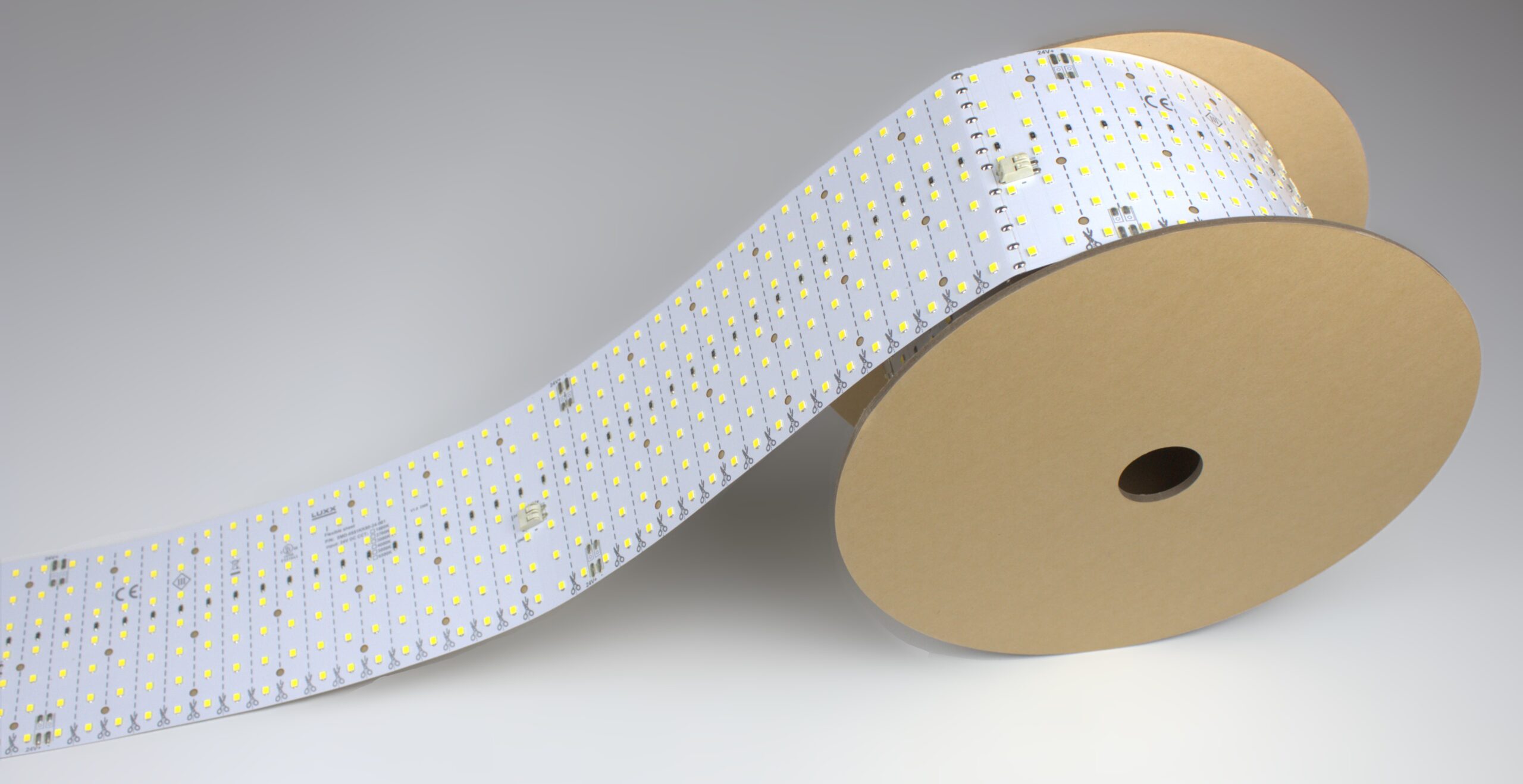

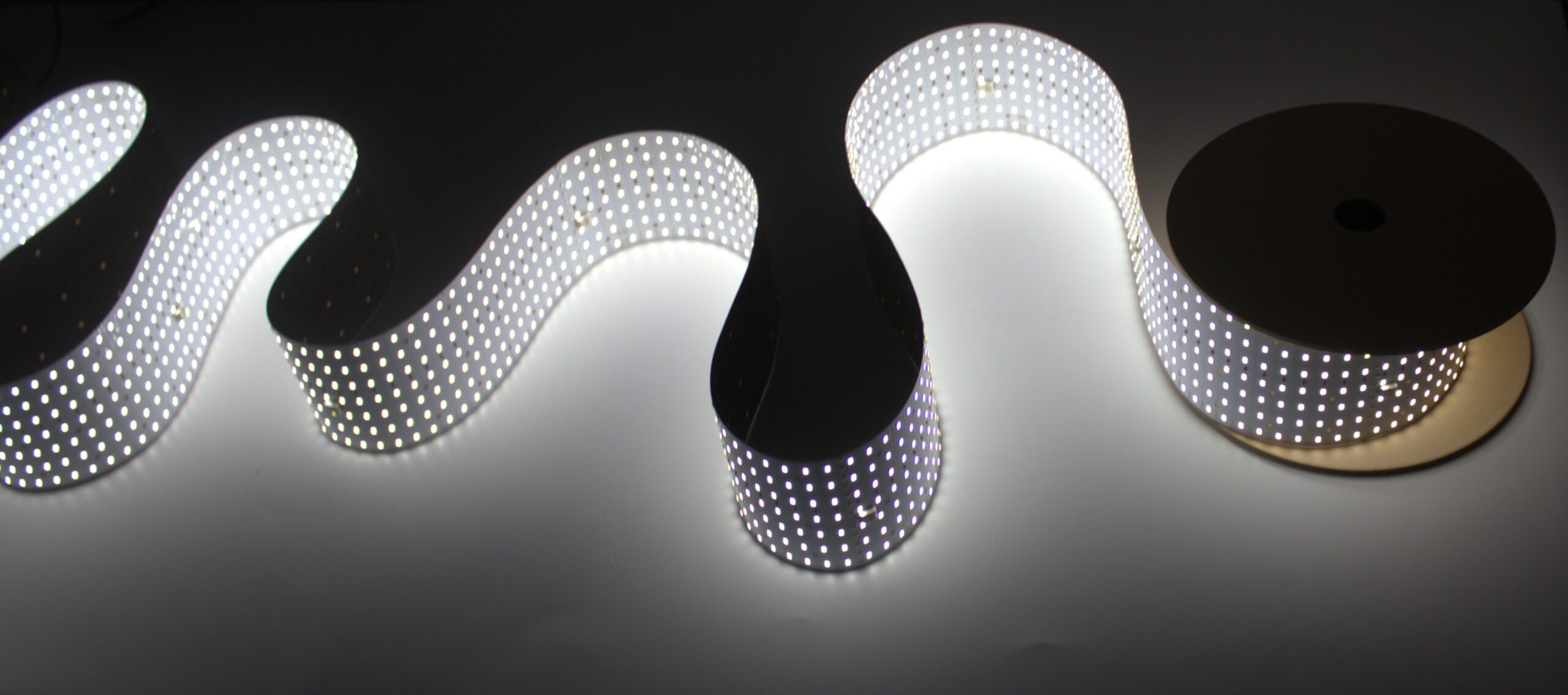

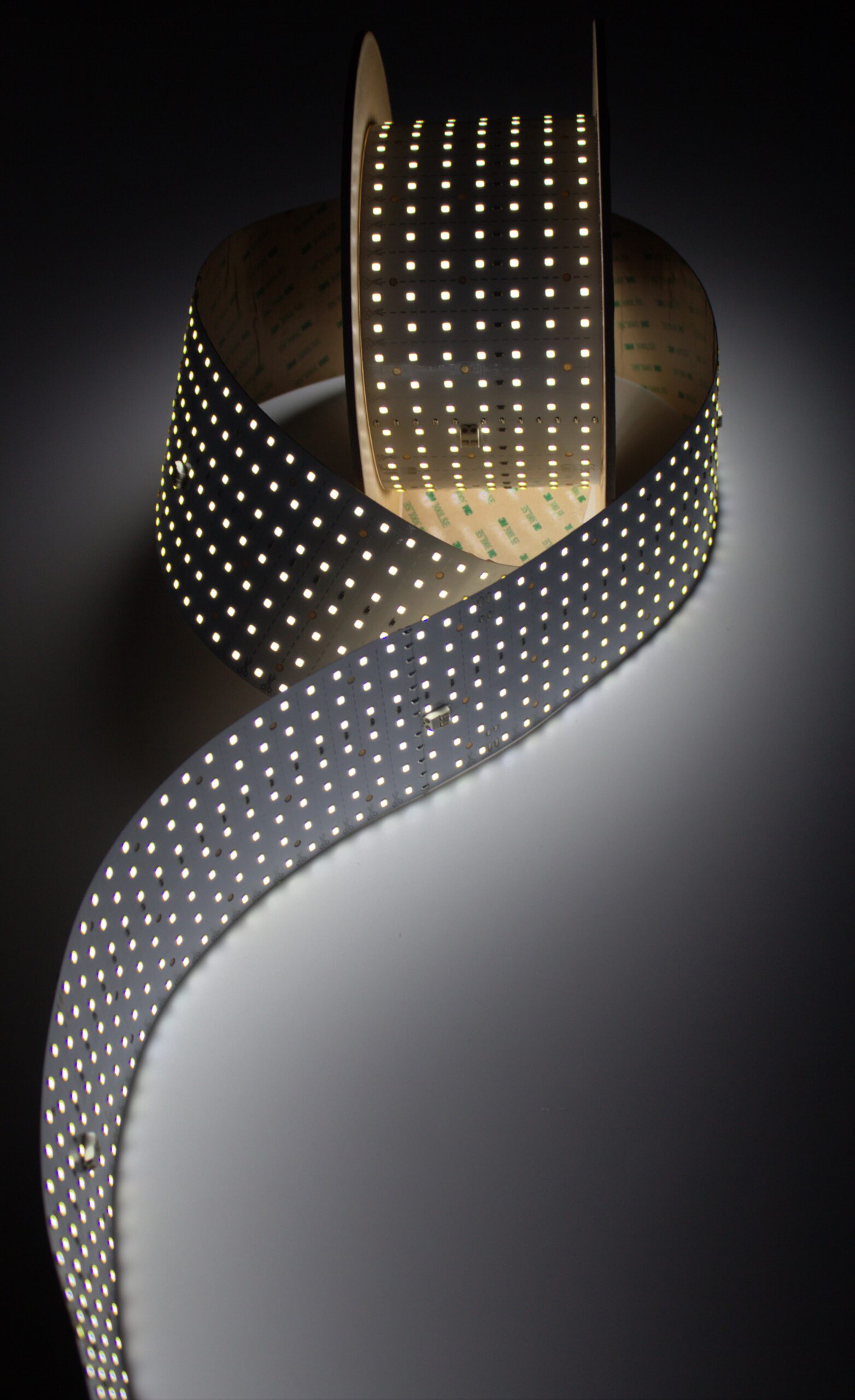

Our rollable LED light sheet for large-format projects

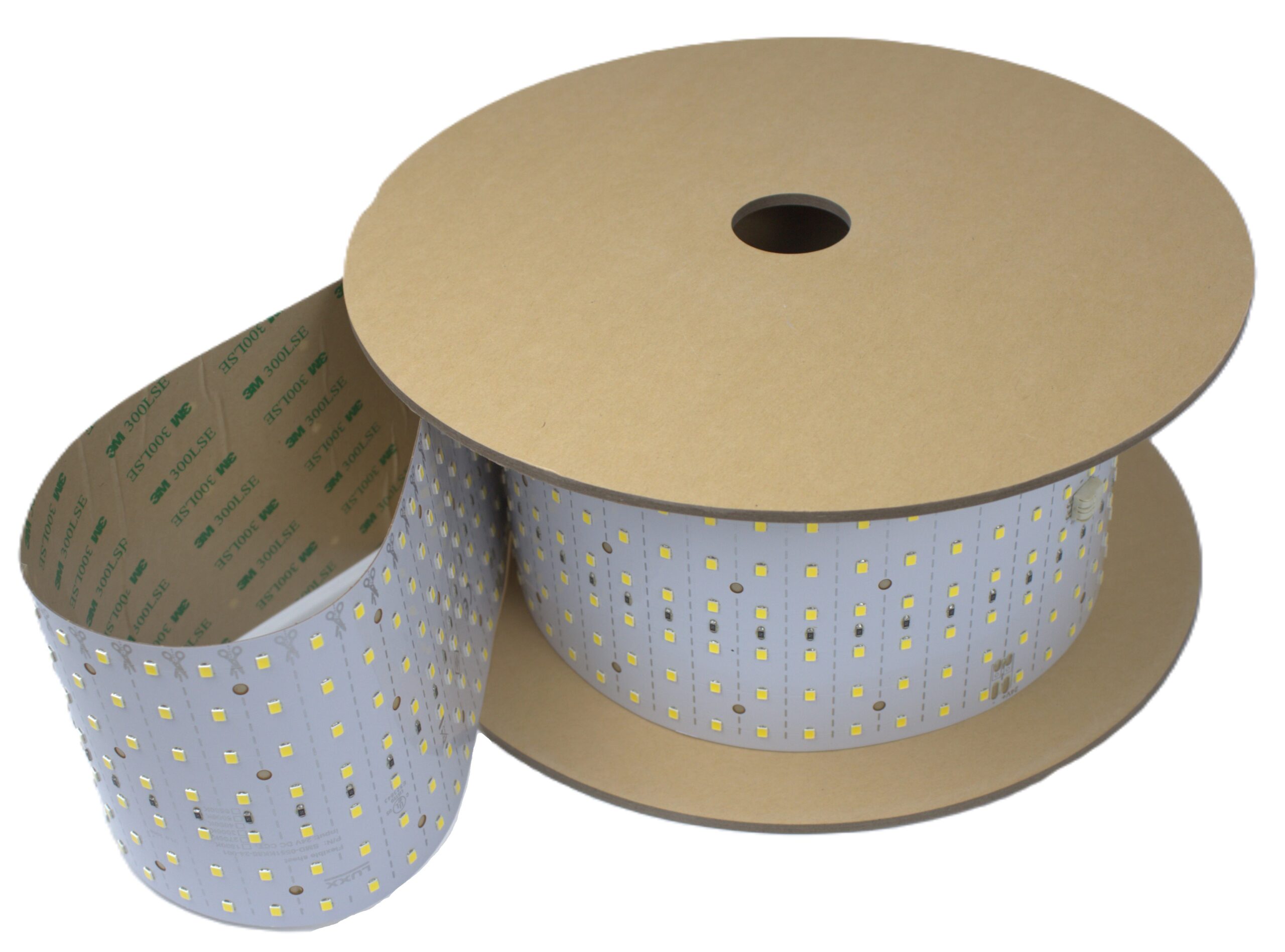

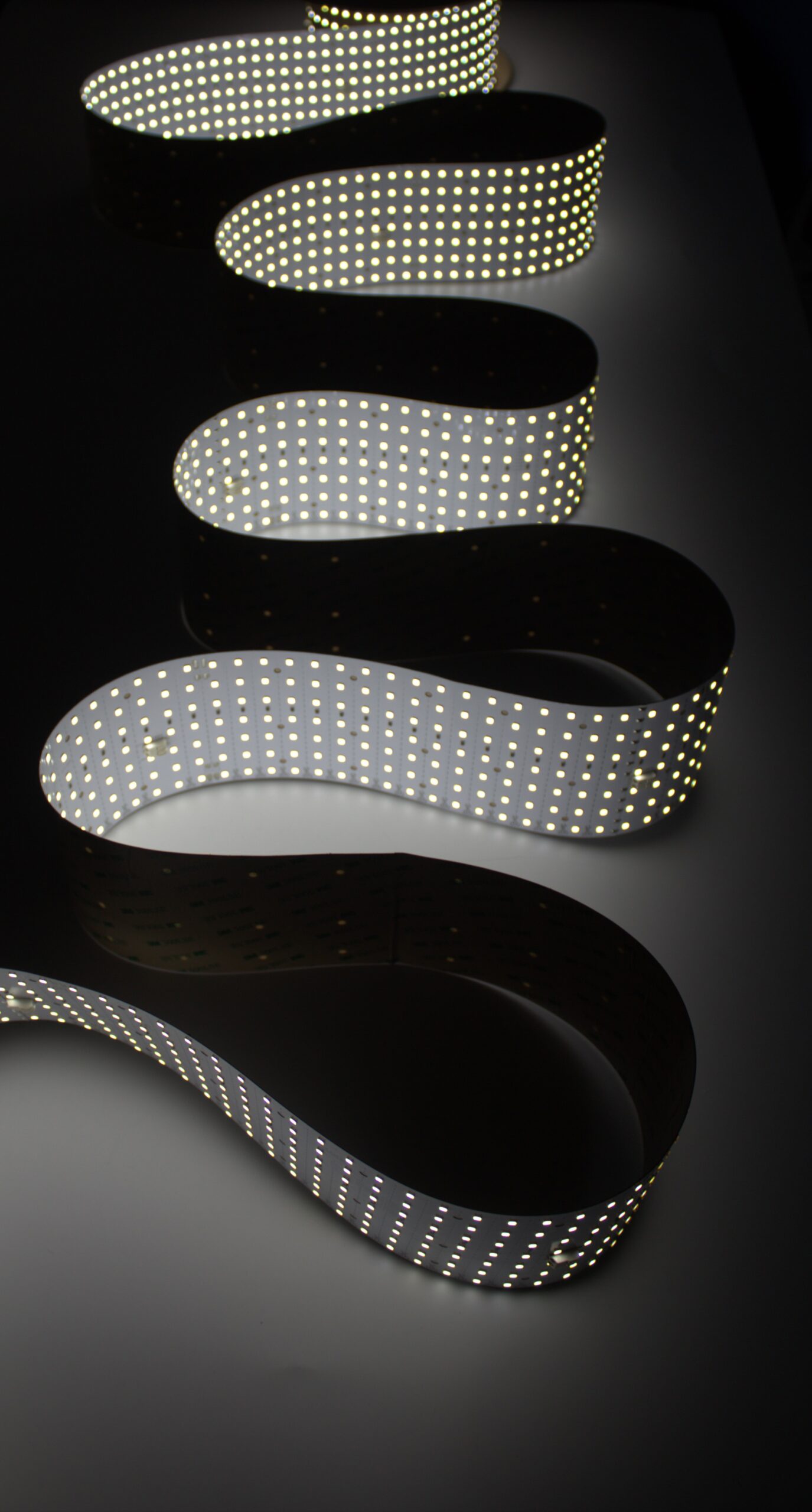

Take illumination to the next level with our rollable LightWave®. Delivered in continuous rolls of up to 40 feet, it covers expansive surfaces effortlessly while maintaining the same thin, bright, and flexible profile you love with our LightWave® line. Its roll format makes transporting, handling, and installing large areas fast and efficient, reducing time on site without sacrificing quality or design freedom.

By powering one long section instead of several smaller panels, LightWave Roll It! simplifies installation:

  • Fewer drivers / power supplies
  • Fewer splices and connectors
  • Less wiring clutter

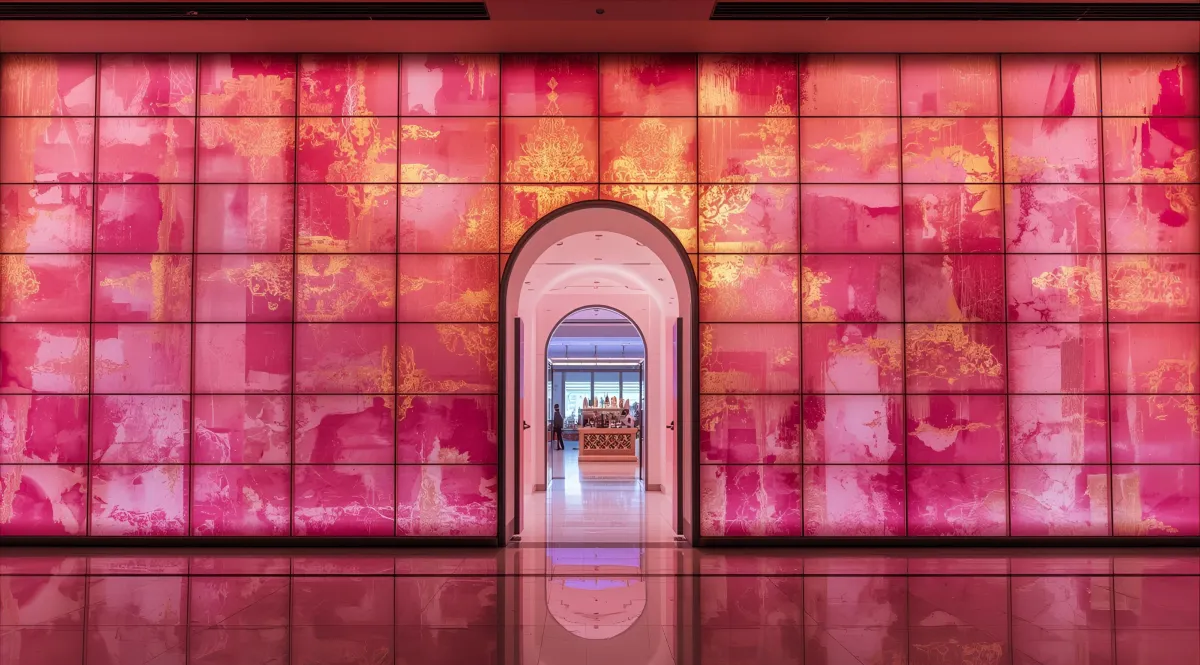

Ideal for any project needing smooth, continuous illumination across a wide or lengthy area:

  • Retail display walls
  • Backlighting signage and billboards
  • Airport, subway, or transit corridors
  • Trade show booths and event backdrops
  • Long hallways, staircases and corridors
  • Warehouse or industrial task lighting

Need custom shapes?

Illuminate LightWave® Roll It! can be combined with our cuttable LightWave® products with the perfect match, so you can roll out our large format light sheet while still working around the unique shapes of your space.

Specifications

Size Type Color Power Power / Area Efficiency Light Output Light Output/Area CRI LED Qty LED qty / area
4’’ x 480’’ (0.1m x 12.2m) Roll 3500K 5000K 6500K 2.15W / ft 7W / m 6.6W / sqft 70W / m2 130lm / W 280lm / ft 920lm / m 840lm / sqft 9000lm / m2 >80 108 / ft 354 / m 324LEDs / sqft 3480LEDs / m2
4’’ x 400’’ (0.1m x 10.16m) Roll 1800K / 2700K / 3000K 3500K / 4000K / 5000K 6500K 3.5W / ft 11.7W / m 10.7W / sqft 117W / m2 115 – 130lm / W 100lm /W (1800K) 350 – 450lm / ft
1170 – 1520lm / m
1000 – 1400lm / sqft
11000 – 15200lm / m2
>80 108 / ft 354 / m 324LEDs / sqft 3480LEDs / m2
