CCT Select

Control tunable white lighting with CCT Select controllers—set and forget precise color temperature for retail, architectural, industrial and more applications.

With CCT Select Controllers, set color temperature once and enjoy precise, fixed color temperature with reliable, consistent lighting performance.

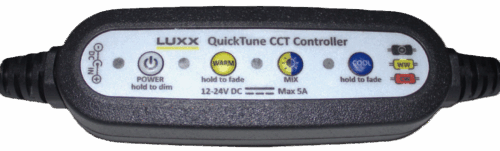

  • QuickTune Universal Controller – Broad compatibility with a wide range of tunable white LED fixtures.

  • QuickTune EasyLink – Simple, effortless control of LUXX LightWave Generation 1 Plus.

Ideal for both professionals and DIY users, across retail, hospitality, offices, and home interior spaces.

Controller

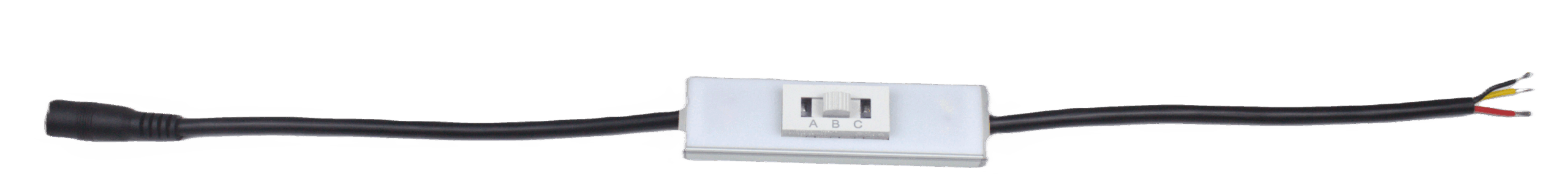

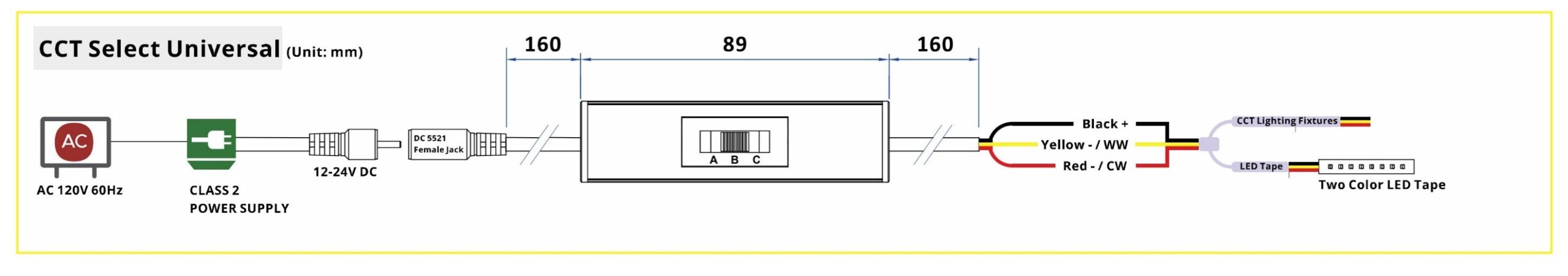

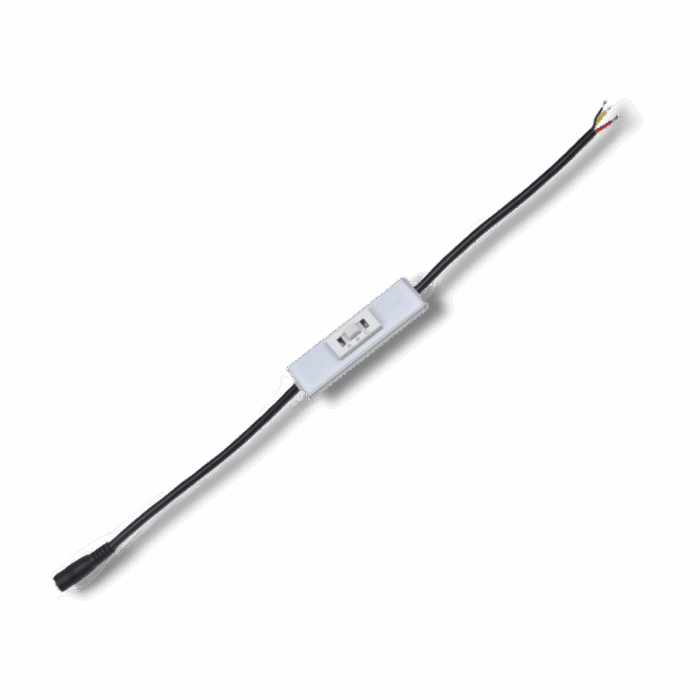

Universal 3 Shifts with 160mm tinned 3-core open ends

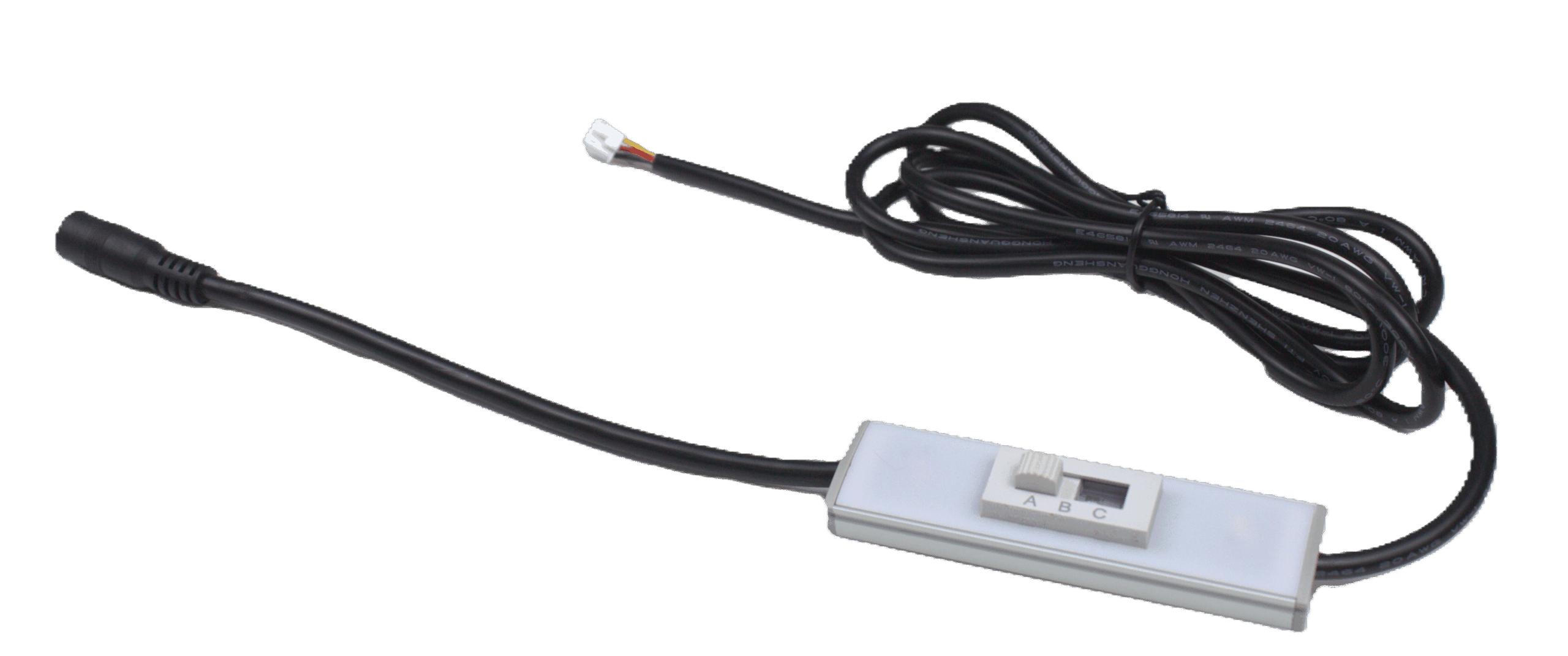

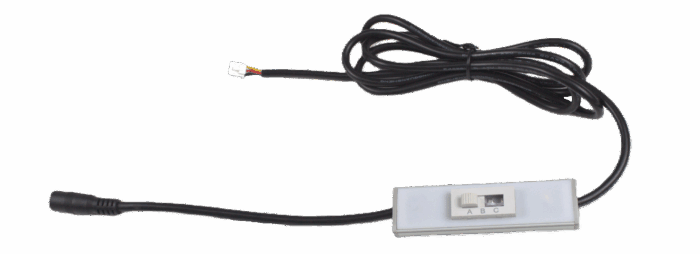

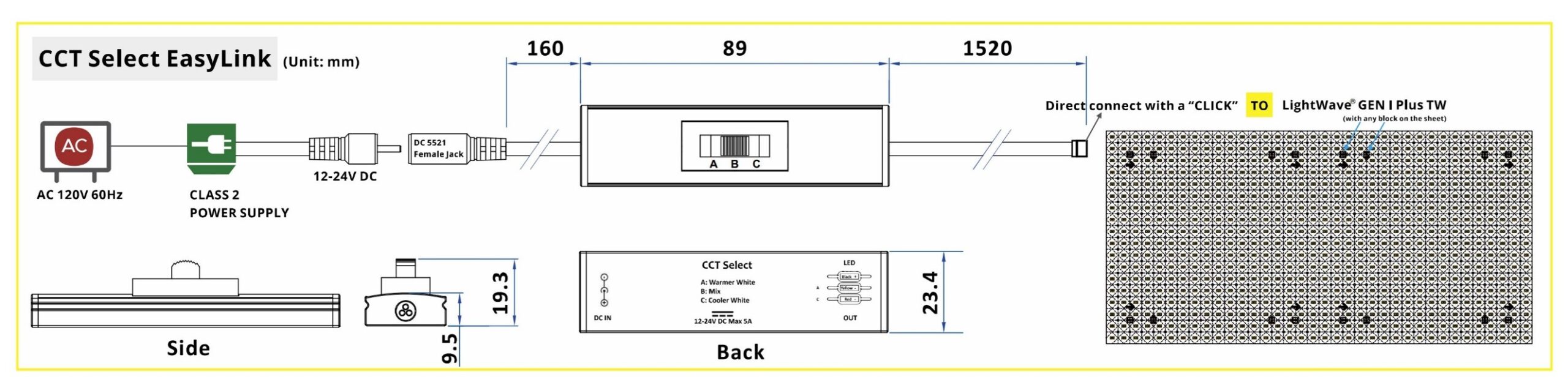

EasyLink 3 Shifts with 1520mm LightWave TW connector

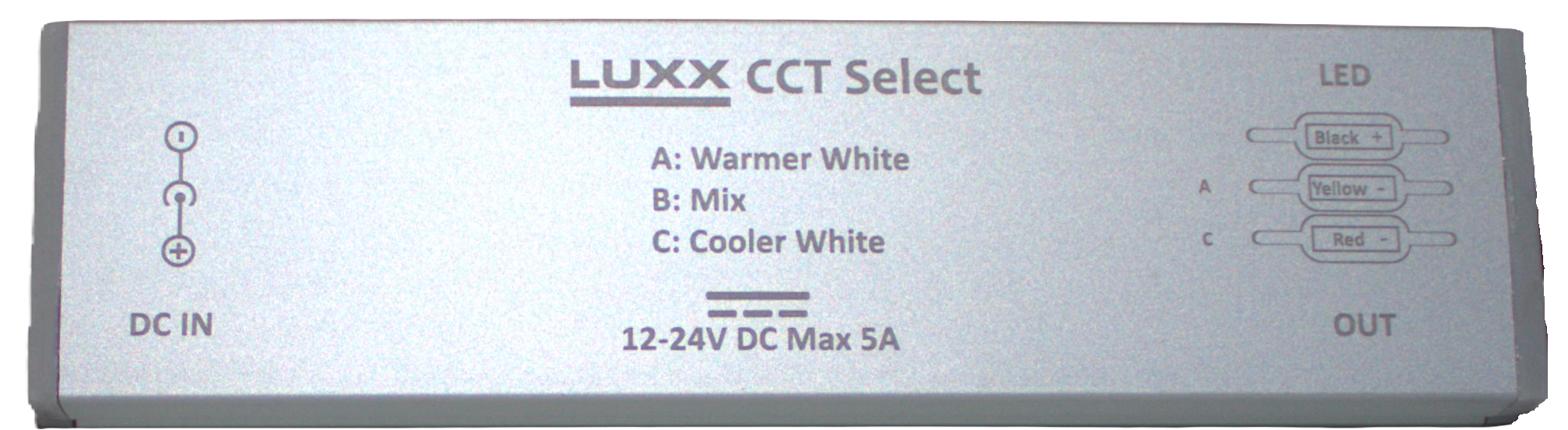

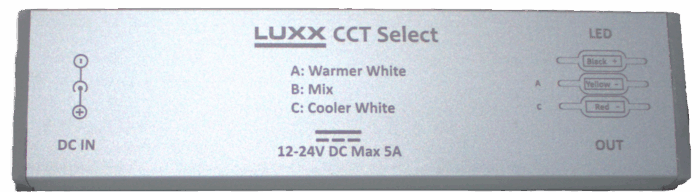

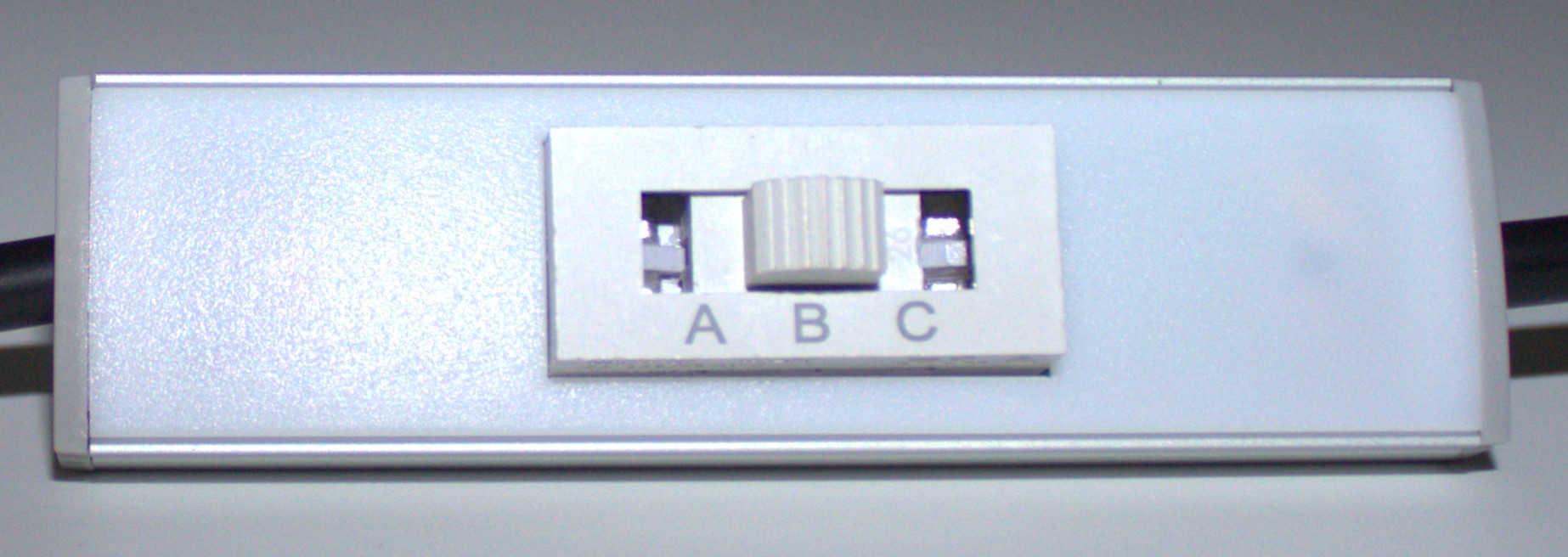

Button Description

A Warmer white
B Mix 50 / 50
C Cooler White

Electrical & Optical

Voltage 12-24V DC
Output Current 5A / Channel
Channel 2 Channels
PWM Frequency 20000 Hz

Functionality & Safety

Color Mixing Proportional Balancing
Memory Function Yes
Protections Polarity Protection
Product Color White and Aluminium

Warranty

Years 3

Drawings
