Control tunable white lighting with CCT Select controllers—set and forget precise color temperature for retail, architectural, industrial and more applications.

CCT-Select-full-transparent

With CCT Select Controllers, set color temperature once and enjoy precise, fixed color temperature with reliable, consistent lighting performance.

  • CCT Select Universal Controller – Broad compatibility with a wide range of tunable white LED fixtures.

  • CCT Select EasyLink – Simple, effortless control of LUXX LightWave Generation 1 Plus.

Ideal for both professionals and DIY users, across retail, hospitality, offices, and home interior spaces.

Controller

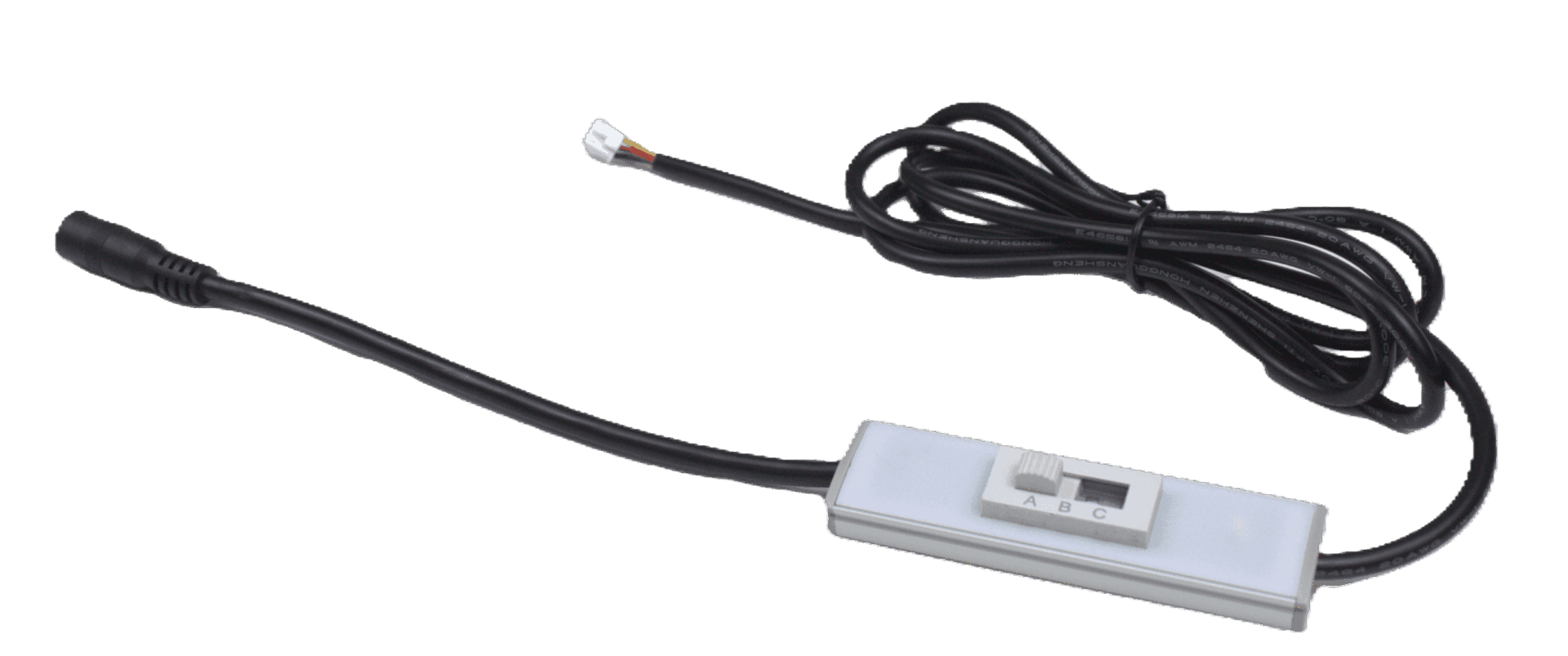

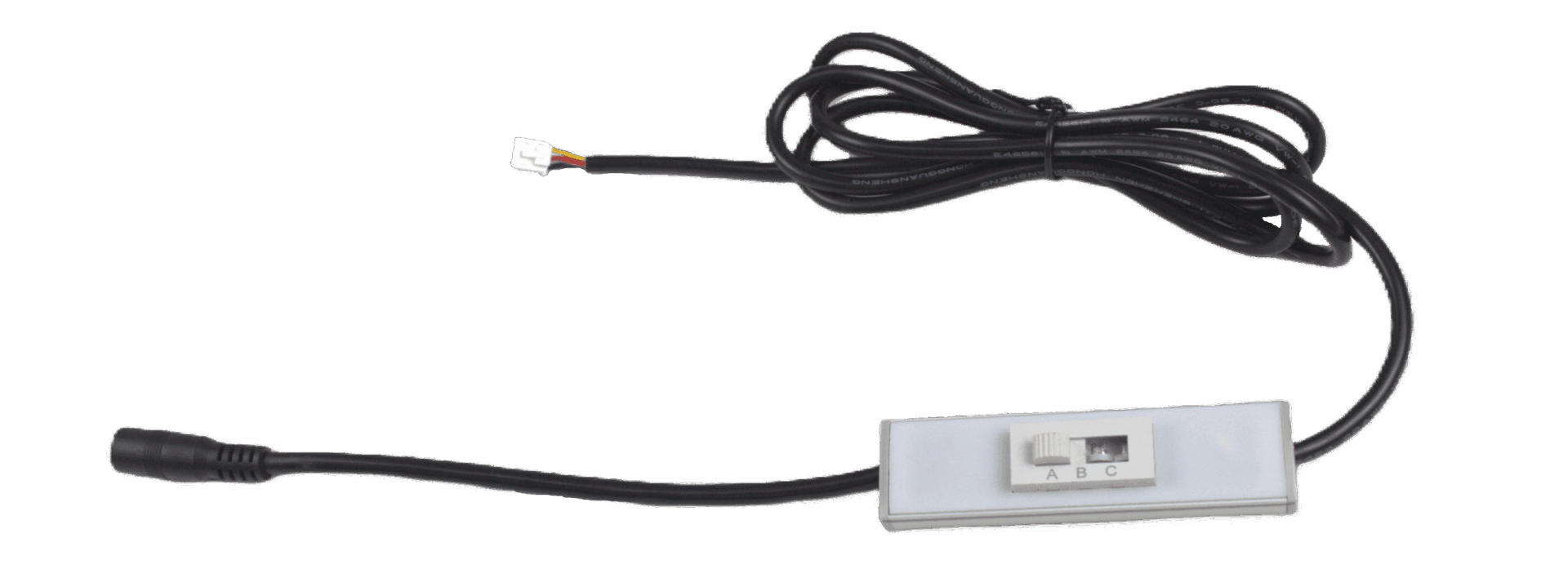

Universal 3 Shifts with 160mm tinned 3-core open ends
EasyLink 3 Shifts with 1520mm LightWave TW connector

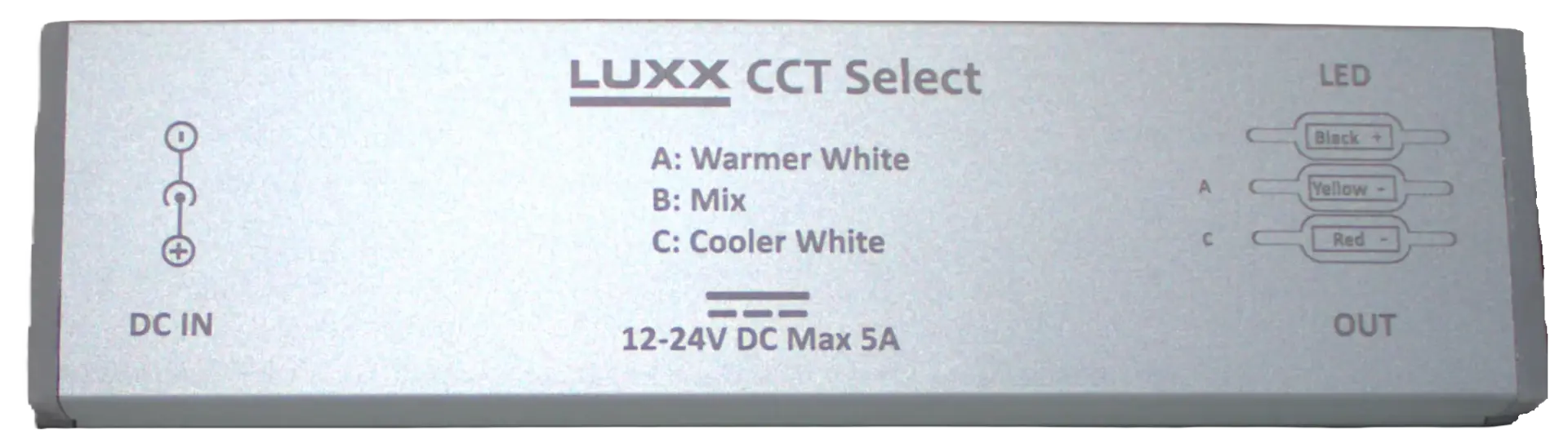

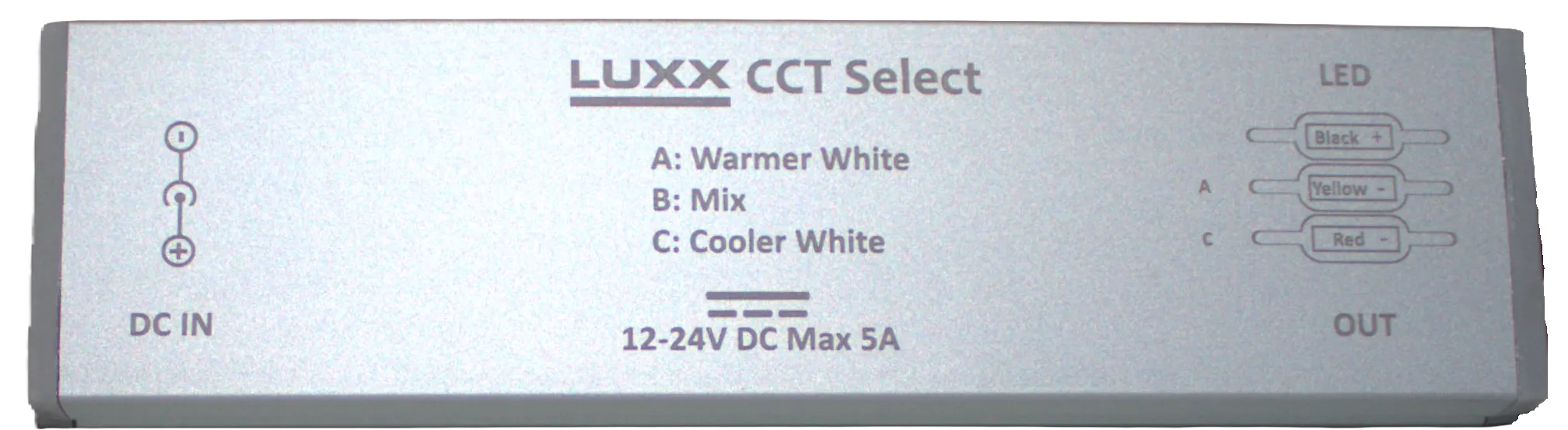

Button Description

A Warmer white
B Mix 50 / 50
C Cooler White

Electrical & Optical

Voltage 12-24V DC
Output Current 5A / Channel
Channel 2 Channels
PWM Frequency 20000 Hz

Functionality & Safety

Color Mixing Proportional Balancing
Memory Function Yes
Protections Polarity Protection
Product Color White and Aluminium

Warranty

Years 3

Drawings

cct-select-universal
cct-select-EasyLink
