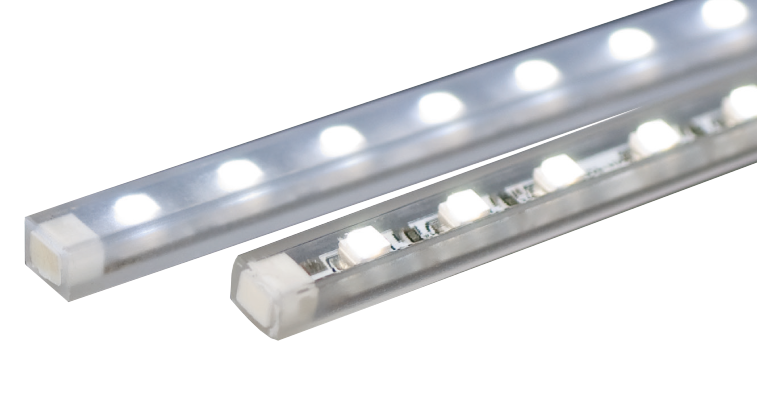

Alu Monaco Semilinear

Another one of our ultra small lighting fixtures. Just 0.31 in (8 mm) x 0.39 in (10 mm) Alu Monaco Semilinear is designed for ceiling, wall, cabinet and under-cabinet applications.



Semilinear means the LED dots are slightly visible. Alu Monaco does not provide a completely linear light as ROMA does.



Different configurations available upon request.

SPECIFICATIONS

Data per inch (meter)



Electrical

Power: 12.96 W

Input voltage: 12 VDC / 24 VDC

Current: 400 mA / 800 mA



LED

Strip max. width: 0.20 in (5 mm)

Type: 3020

Qty: 120 pcs

CCT: 2700K / 3000K / 4000K / 5000K / 6000K

CRI > 80



Light Output

Beam angle: 90°

Efficiency: 72 Lm/W

Lumen: 700 Lm



Dimmability

Dimmable



Appearance

Material: anodized aluminum, PMMA

Diffuser: clear / frosted / milky

Dimensions: W0.31 in (8 mm) x H0.39 in (10 mm)

Max. length: 98.43 in (2500 mm)



Mounting

Surface / recessed



Accessories

Spring steel clips



Wire Exit

Linear
